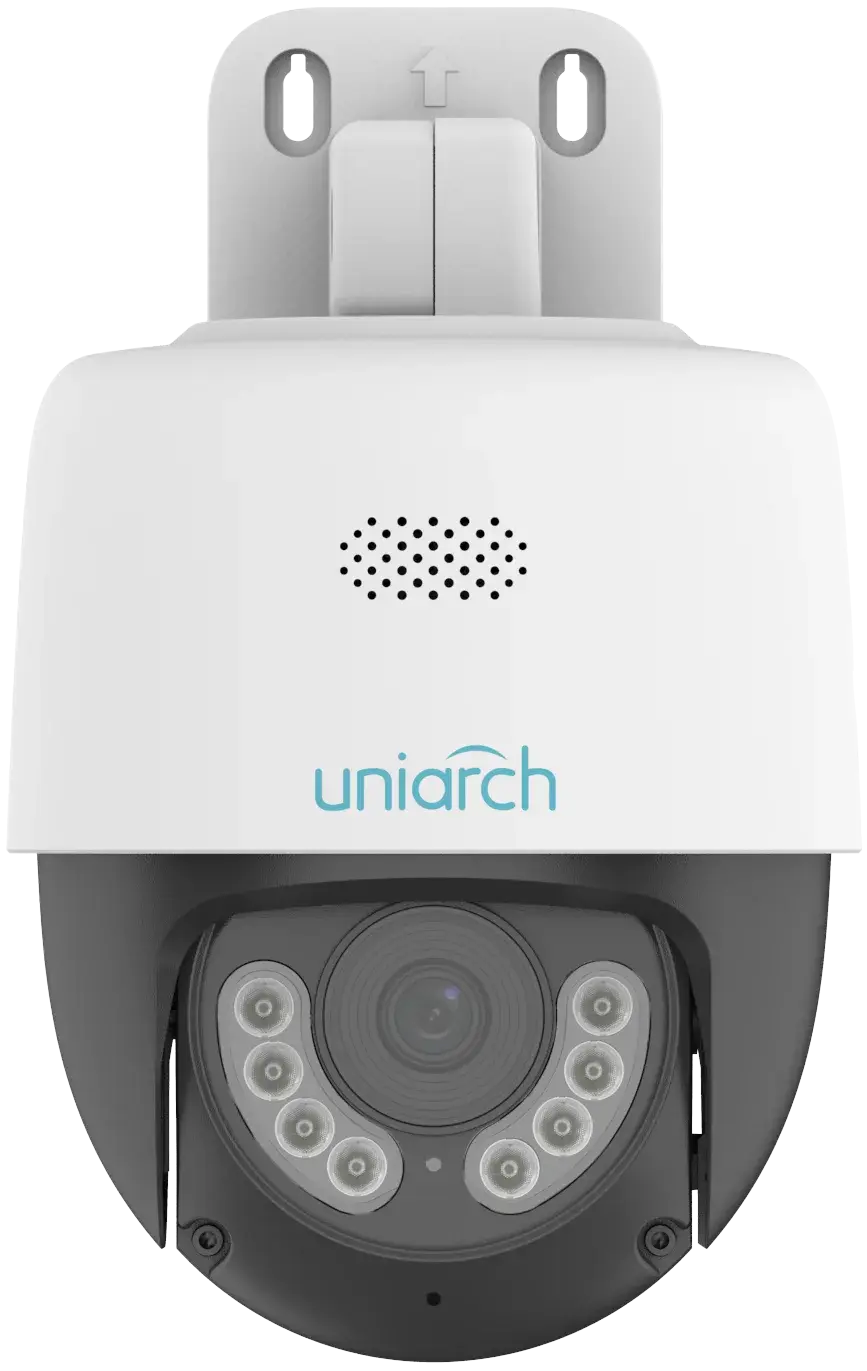

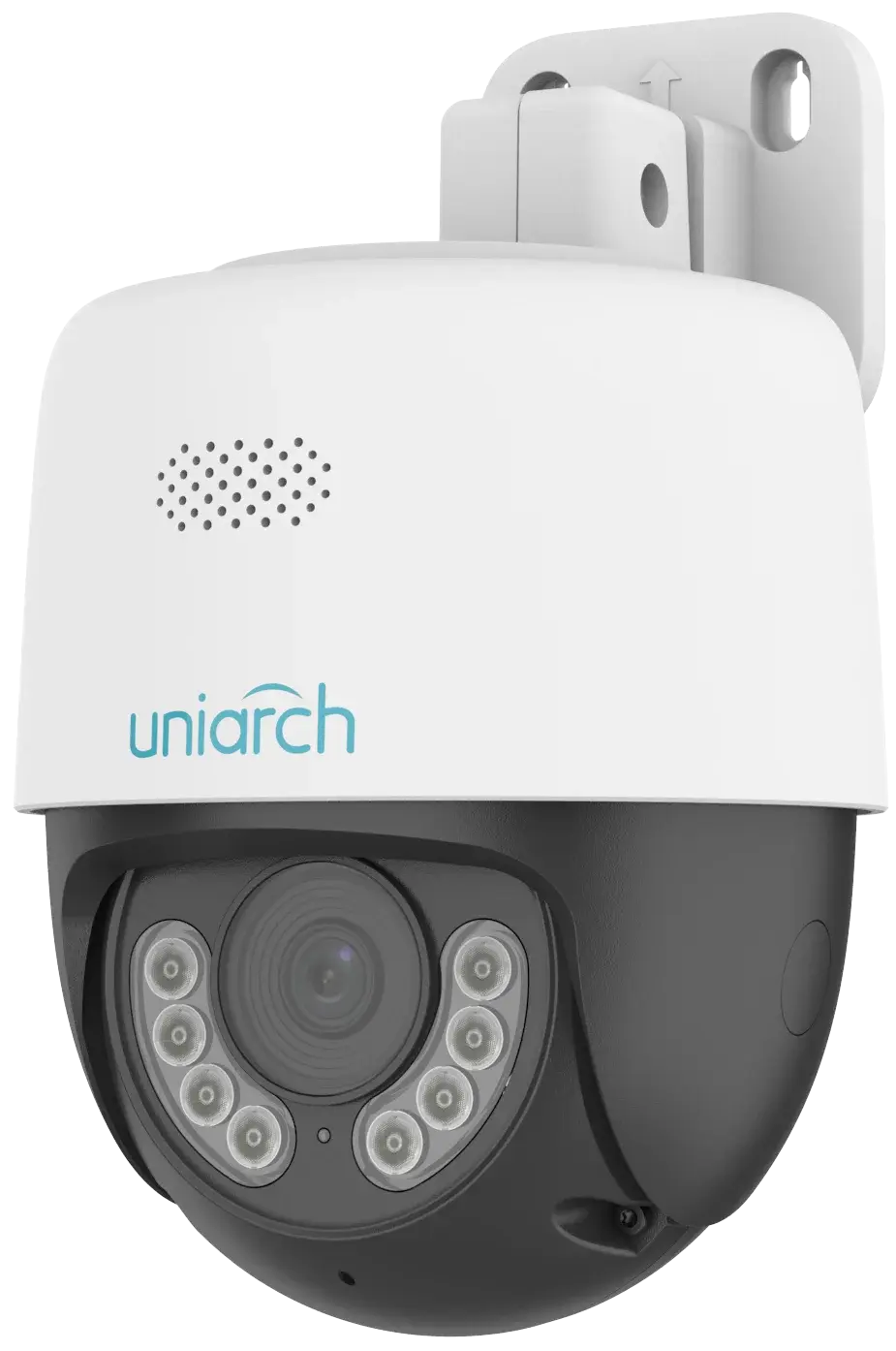

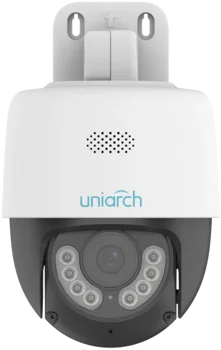

Uniarch IPC-P213-AF40KC

Modell: IPC-P213-AF40KC
2.943,80
( 2.355,04 )
lager: i lager

Prisvärd PT-kamera med IR, varmt ljus, högtalare och mikrofon

  • 2304*1296@20fps i mainstream
  • Ultra 265, H.265, H.264
  • Stöder digital WDR (Wide Dynamic Range)
  • Inbyggd mikrofon och högtalare, stöder tvåvägsljud, ger bättre interaktion
  • Smart IR, upp till 30m (98ft) IR och 30m (98ft) varmt ljusavstånd, lämplig för flera scener
  • Oberoende fäste, stöder två typer av montering
  • Stöder 256G Micro SD-kort
  • IP66 inträngningsskydd
  • DC12V eller PoE (IEEE 802.3af) strömförsörjning
  • Framsidan är gjord av grafem, som har bättre värmeavledning och mer miljöskydd

Du kan styra kameran från din mobil. Anslut till en NVR eller använd den självständigt med ett sd-kort.

PDF
Datablad
  IPC-P213-AF40KC
Camera
Sensor 1/2.8" progressive scan, 3.0 megapixel, CMOS
Min. Illumination Colour:0.005 lux (F1.6,AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, shutter time: 1 s ~ 1/100000 s
WDR Digital
S/N >52dB
Lens
Lens type 4mm
Iris Fixed; F1.6
Field of View (H) 90.5°
Field of View (V) 44.4°
Field of View (D) 111.3°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
4mm 73.5 (241.0ft) 29.4 (96.4ft) 14.7 (48.2ft) 7.3 (24.1ft)
Illuminator
IR Range Up to 30m (98ft)
Warm Light Range Up to 30m (98ft)
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264
Frame Rate Main Stream: 3MP (2304*1296), Max 20fps;
Sub Stream: D1 (720*576), Max 20fps;
Video Bit Rate 128 Kbps~6 Mbps
ROI Support
Video Stream Dual streams
OSD Up to 2 OSDs
Privacy Mask Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart Intrusion Prevention Support false alarm filtering: Cross Line detection, Intrusion detection
Events
Basic Detection Motion detection, Audio detection
General Function Access Policy, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U,G.711A
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, TCP, UDP, DHCP , RTSP, DNS, DDNS, NTP, HTTP, HTTPS, 802.1x , SSL
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Web Browser Plug-in required live view: IE 8-11
Pan & Tilt
Pan Range 0° ~ 345°
Pan Speed 1°/s ~ 40°/s
Preset speed: 40°/s
Tilt Range 0° ~ 90°
Tilt Speed 0.1°/s ~ 30°/s
Preset speed: 30°/s
Number of Presets 256
Home Position Support
Interface
Built-in Mic Support
Built-in Speaker Support
Network 1 * RJ45 10M/100M Base-TX Ethernet
General
Power DC 12V±25%, PoE(IEEE 802.3af)
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Φ118mm*118mm*199mm (Φ4.6”x 4.6”x 7.8”)
Weight 0.53kg(1.17lb)
Working Environment -30°C ~ 60°C (-22°F to 140°F), Humidity:≤95% RH(non-condensing)
Surge Protection 4KV
Reset Button Support
Protection Ingression protection: IP66
Vandal resistant: N/A
