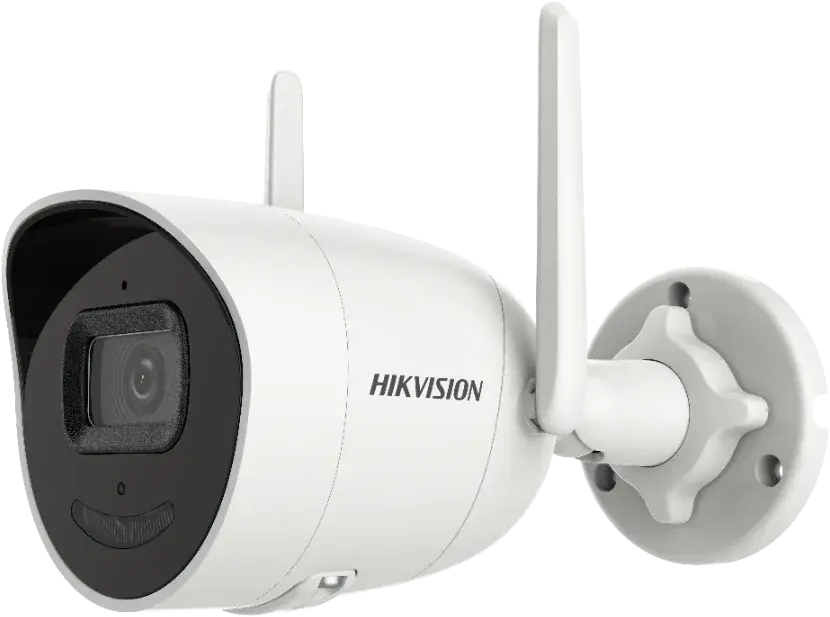

Hikvision DS-2CV2041G2-IDW 4MP WiFi
Modell:
DS-2CV2041G2-IDW(4)
2.130,36
(
1.704,29
)
lager:
inte i lager
WiFi
4 megapixlar
H.265+
Inbyggd mikrofon/högtalare
* Stöder INTE hickanslutning via WiFi
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3s to 1/100,000s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | ICR Cut |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Lens Type & FOV | 2.8 mm: horizontal FOV: 97°, vertical FOV: 52°, diagonal FOV: 114° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Video | |
| Max. Resolution | 2560 × 1440 |
| Main Stream | 50Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360) |
| Video Compression | Main stream/Sub-stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | BaseLine Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Stream Type | Main stream and sub-stream |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP,R TCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users 3 levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
| Network Storage | NAS(NFS, SMB/CIFS) |
| Client | Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 |
| Web Browser | Plug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11; Plug-in free live view: Chrome 45.0+, Firefox 52.0+ |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Interface | |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Traditional Algorithm | |
| Basic Event | Motion detection, flashing alarm light output, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| General | |
| Linkage Method | Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, audiable warning |
| Online Upgrade | Yes |
| Firmware Version | V5.5.132 |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter, flash log, pixel counter |
| Software Reset | Yes |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F) |
| Power Supply | 12 VDC ± 25%, reverse polarity protection |
| Power Consumption and Current | 12 VDC, 0.6 A, 7.2 W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Material | Front cover: metal, back cover: plastic |
| Camera Dimension | 175.6× 73.0 × 89.1 mm (6.91" × 2.87" × 3.51") |
| Package Dimension | 260 × 125 × 125 mm (10.24" × 4.92" × 4.92") |
| Camera Weight | 450 g (0.99 lb.) |
| With Package Weight | 770 g (1.70 lb.) |
