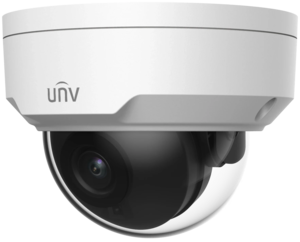

Uniview 2MP dome IR
Modell:
IPC322LB-DSF28K-G
1.795,80
(
1.436,64
)
lager:
i lager
Trevlig liten full HD-kamera som kan sitta på många ställen
- bra kamera för inomhusövervakning, men kan även användas utomhus (IP67)
- upp till 30 meter smart-IR-räckvidd
- testad och godkänd vandalsäker i klass IK10
- kan fungera helt självständigt eller tillsammans med en brännare
- stöder SD-kort
Alltid tillgång till videoövervakning direkt från din smartphone eller från PC/surfplatta.
IPC322LB-DSF28K-G | IPC322LB-DSF40K-G | |||||
Camera | ||||||
Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS | |||||
Minimum Illumination | Colour: 0.01Lux ( F2.0, AGC ON) 0Lux with IR |
|||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
Adjustment angle | Pan: 3° to 360°, Tilt: 0° to 68°, Rotate: 3° to 360° | |||||
S/N | >52dB | |||||
WDR | 120dB | |||||
Lens | ||||||
Lens Type | 2.8mm and 4.0mm @2.0, Fixed-focal | |||||
Lens Mount | M12 | |||||
Angle of View (H) | 112.9° | 91.2° | ||||
Angle of View (V) | 59.1° | 47.9° | ||||
Angle of View (O) | 121.2° | 95.9° | ||||
DORI | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
2.8 | 42 | 16.8 | 8.4 | 4.2 | ||
4.0 | 60 | 24 | 12 | 6 | ||
Illuminator | ||||||
IR Range | Up to 30m (98ft) IR range | |||||
Wavelength | 850nm | |||||
IR On/Off Control | Auto/Manual | |||||
Video | ||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
H.264 code profile | Baseline profile, Main profile, High profile | |||||
Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||
Video Bit Rate | 128 Kbps~6144 kbps | |||||
U-code | Supported | |||||
9:16 Corridor Mode | Supported | |||||
OSD | Up to 4 OSDs | |||||
Privacy Mask | Up to 4 areas | |||||
ROI | Up to 8 areas | |||||
Motion Detection | Up to 4 areas | |||||
Image | ||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | |||||
Digital noise reduction | 2D/3D DNR | |||||
Smart IR | Supported | |||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
Dewarping | N/A | |||||
HLC | Supported | |||||
BLC | Supported | |||||
Defog | Digital Defog | |||||
Storage | ||||||
Edge Storage | Micro SD, up to 128GB | |||||
Network Storage | ANR,NAS(NFS) | |||||
Network | ||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP | |||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
Client | EZStation EZView EZLive |
|||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | ||||||
Interface | ||||||
Network | 10/100M Base-TX Ethernet | |||||
Certifications | ||||||
EMC | FCC: FCC Part 15 | |||||
Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
|||||
General | ||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
Power consumption: Max 5.0W | ||||||
Power Interface | Ø 5.5mm coaxial power plug | |||||
Dimensions (Ø x H) | Φ109 x 81mm (Ø4.3” x 3.2”) | |||||
Weight | 0.36kg (0.79lb) | |||||
Material | Metal + plastic | |||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
Surge Protection | 4KV | |||||
Reset Button | N/A | |||||
IngressProtection | Ingression protection: IP67 Vandal resistant: IK10 |

NDAA Compliant
Våra modeller från Uniview, Bosch och Axis är alla tillåtna jämfört med NDAA (National Defense Authorization Act).
Detta innebär att utrustningen till och med måste inkluderas i kritisk infrastruktur i USA.
Detta innebär att utrustningen till och med måste inkluderas i kritisk infrastruktur i USA.

Power over Ethernet
Gillar du proffsen. Poe betyder att endast en kabel ska dras till kameran. Kameran får ström genom nätverkskabeln, vanligtvis från en inspelare med inbyggd Poe, eller från en POE-switch.

ONVIF full member
Univiews -kameror och inspelare stöder ONVIF-protokollet. Detta innebär att de kan blandas med utrustning från andra märken så länge de också stöder Onvif.
