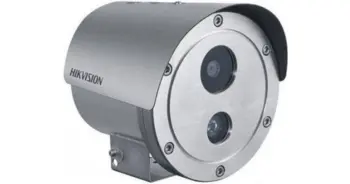

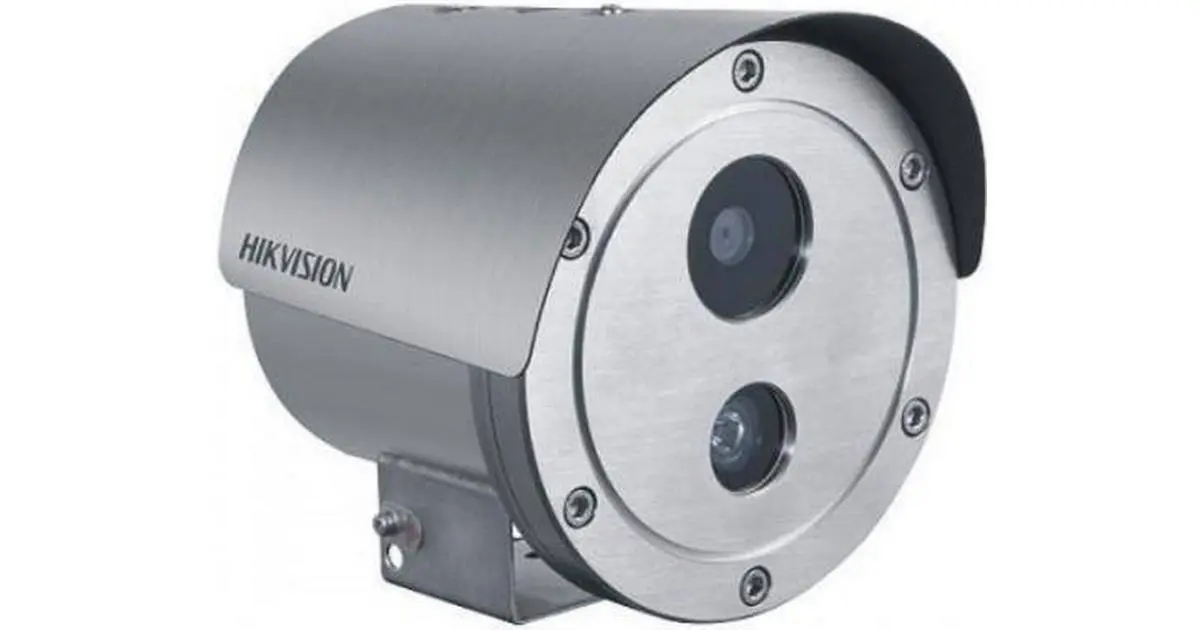

Hikvision DS-2XE6242F-IS/316L 4MP 4mm Explosion-Proof

Model/varenr.: DS-2XE6242F-IS/316L 4mm

Ring for pris
+45 7070 1009

Lager: Ikke på lager
PDF
Datablad Manual Quick Guide
  • Lens
  • FOV4 mm, horizontal field of view: 91° 6 mm, horizontal field of view: 60° 8 mm, horizontal field of view: 41.5° 12 mm, horizontal field of view: 26.6°
  • Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Min. IlluminationColor: 0.01 lux @ (F1.2, AGC ON); B/W: 0.001 lux @ (F1.2, AGC ON), 0 Lux with IR on
  • Shutter Speed1 s to 1/100,000 s
  • DNR3D DNR
  • WDR120 dB
  • Day & NightIR cut filter
  • Lens4 mm, 6 mm, 8 mm, 12 mm
  • Lens MountM12
  • Network
  • Alarm TriggerMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Network StorageSupport microSD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS, SMB/CIFS), ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
  • StandardONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
  • General FunctionMirror, anti-flicker, heartbeat, watermark, password protection, privacy mask
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Alarm2 alarm inputs, 2 alarm outputs
  • On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
  • Image
  • Image EnhancementBLC/3D DNR
  • Target CroppingSupport
  • Day/Night SwitchAuto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image SettingsSupport rotate mode, saturation, brightness, contrast, etc., adjustable by client software or web browser
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
  • ROI (Region of Interest)Support 4 customized regions for each stream, and face dynamic tracking
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 24fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)
  • Intelligent (Traditional Algorithm)
  • Face DetectionHuman face appears in the image can be detected and trigger linkage method
  • General
  • Power Consumption and CurrentMax. 7 W
  • Power Supply100 VAC to 240 VAC, 0.1 A, terminal block PoE (802.3af, class 3), 0.2 A
  • MaterialStainless steel 316L
  • Operating Conditions-30°C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Protection LevelIngress protection: IK08 (IEC 62262:2002), IP68 (IEC 60529-2013)
  • Explosion-proof CertificateATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68 IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68 For explosive gas atmospheres, the maximum surface temperature is 85°C; For flammable dust atmospheres, the maximum surface temperature is 80°C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
  • IR Range30 m
  • Dimensions (W × D × H)Camera: 202 × 174 × 172 mm (7.95"× 6.85" × 6.77") Package: 435 × 255 × 285 mm (17.1" × 10" × 11.2")
  • Weight (without hard disk)Camera: 5.99 kg(13.21 lb.) With package: 7.07 kg(15.59 lb.)
  • Compression Standard
  • H.264+Support
  • H.265+Support
  • H.264 TypeBaseline profile/main profile/high profile
  • Video CompressionMain stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
  • H.265 TypeMain profile
  • Video Bitrate32 Kbps to 16 Mbps
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bitrate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)
  • Approval
  • EMCFCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B） CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013） IC: IC-VoC(ICES-003 Issue 7:2020) KC: KN 301489-1,KN 301489-17,RRA NOTICE 2017-14(2017.12.05),RRA NOTICE 2017-19(2017.12.28)
  • SafetyUL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014 CB: IEC 60950-1 CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)
  • Smart Feature-set
  • Exception DetectionScene change detection, defocus detection
  • Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
