Hikvision DS-2CD6825G0/C-IS Dual-Lens idendørs Persontællerkamera
Model/varenr.:
DS-2CD6825G0/C-IS(B)
10.949,00
m/Moms
(
8.759,20
u/Moms
)
Persontællerkamera med 2 linser
- Tæller hvor mange der går ind - og ud af en butik
- Monteres over ind-/udgangen der skal tælles
- Besøgende pr. dag, uge, måned og år - få rapport på mail
- Kræver ingen licens eller abonnement
- Camera
- Image Sensor1/2.7" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON),B/W: 0.0035 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/25 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- Lens TypeFixed focal lens, 2 mm
- Focal Length & FOV2 mm, horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°
- Lens MountM12
- ApertureF2.25
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 6 m
- IR Wavelength850 nm
- Video
- Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
- Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)4 fixed region(s) for main stream and sub-stream
- Audio
- Audio Type-S: Mono sound
- Audio Compression -S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate-S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering-S: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK
- User/HostUp to 32 users 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
- ClientiVMS-4200,Hik-Connect
- Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+, Safari12+
- Image
- Image SettingsSaturation,brightness,contrast,sharpness,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger (-S)
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC,HLC,3D DNR,defog
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Built-in MicrophoneYes
- Audio-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm -S: 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
- RS-485-S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Event
- Basic Event Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
- Deep Learning Function
- People CountingCounts people entering and exiting separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height
- General
- Power12 VDC ± 20%, 0.58 A, max. 7.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.24 A to 0.15 A, max. 8.5 W
- MaterialFront cover: plastic, camera body: metal
- Dimension168 mm × 61 mm × 36 mm (6.6" × 2.4" × 1.4")
- Package Dimension235 mm × 120 mm × 125 mm (9.2" × 4.7" × 4.9")
- WeightApprox. 340 g (1 lb.)
- With Package WeightApprox. 695 g (1.6 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 144 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General FunctionHeartbeat,anti-flicker,mirror,password protection
- Approval
- EMCFCC: 47 CFR Part 15, Subpart B, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015
- SafetyUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
- EnvironmentCE-RoHS: 2011/65/EU+2015/863
Der er endnu ikke nogen anmeldelser her. Vi vil være glade for hvis du vil anmelde som den første.
Om kameraet
Kameraet er designet til at sidde over ind- og udgange og tælle hvor mange personer der kommer og går.
DS-2CD6825G0/C-IVS(2.0MM) til udendørs montage
DS-2CD6825G0/C-IS(2.0MM) til indendørs montage

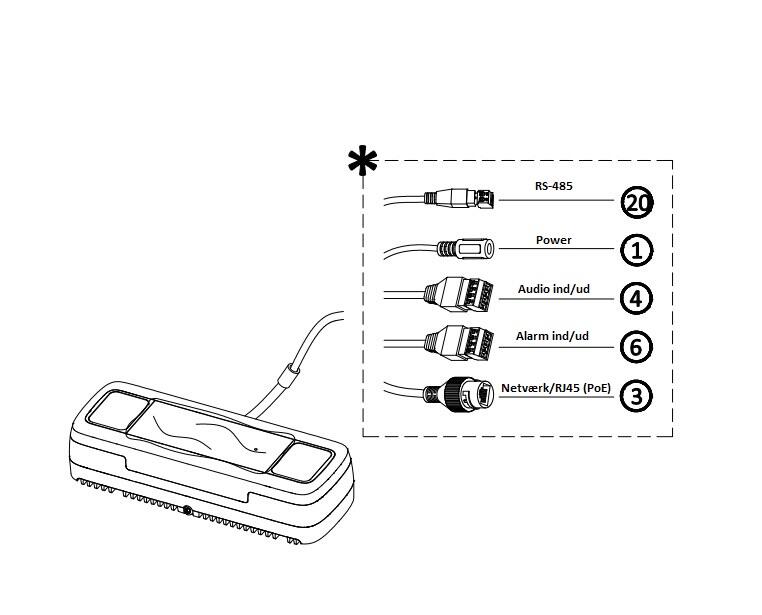

Kameraet har ind- og udgange (relæer) til f.eks. styring af låse, en alarm mm. Der er også indbygget mikrofon som kan slås til eller fra efter behov. Mikrofonen har miljø-støjfilter til at frasortere uønskede lyde. Kameraet understøtter PoE.
Om persontæller
Kameraet kan enten vise oplysningerne i billedet, som vist på videoen, sende data til programmer, f.eks. vores Android boks, hvis tallene skal vises på en lokal skærm. Det kunne f.eks. være en monitor der hænger ved indgangen, så kunderne selv kan se om der er for mange i butikken.

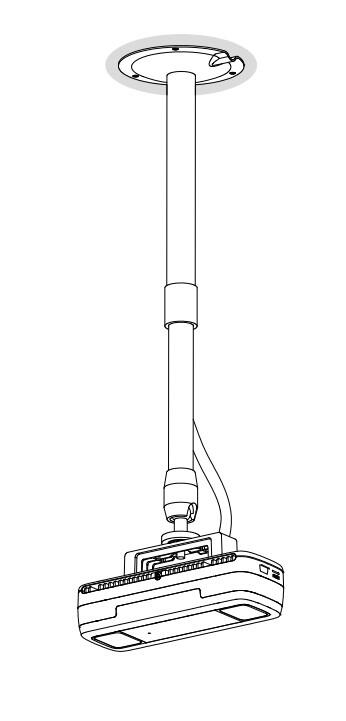

Montering

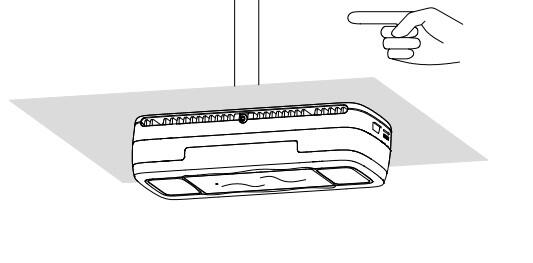

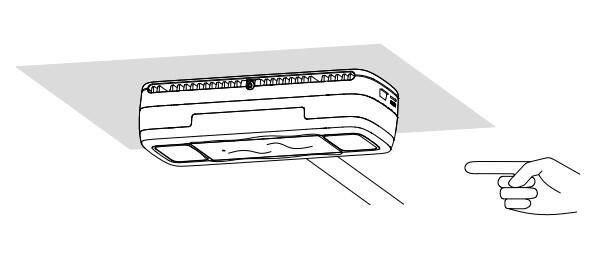

Kameraet kan monteres på flere forskellige måder, men skal monteres vandret over indgang/udgang. Kameraet kan monteres mellem 210 cm og 600 cm fra gulvet.
