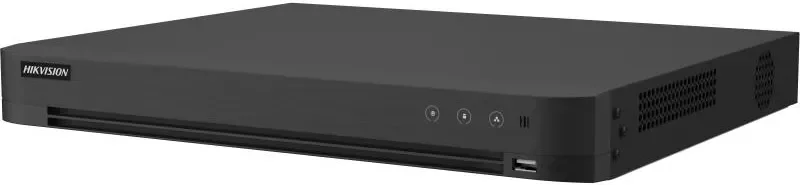

Hikvision IDS-7216HQHI-M2/XT 16 kanals Analog HD-TVI DVR

Model/varenr.: IDS-7216HQHI-M2/XT
3.360,00  m/Moms
( 2.688,00  u/Moms )
Lager: På lager og klar til afsendelse På lager og klar til afsendelse
Har du spørgsmål til produktet?
Bare giv os et kald på 70701009

16-kanals DVR med AcuSense

  • 16 analoge kanaler med mulighed for op til 24 IP-kameraer.
  • Understøtter alle almindelige kameratyper (TVI/AHD/CVI/CVBS/IP).
  • Optagelse med op til 5MP opløsning ved 12 billeder pr. sekund.
  • H.265 Pro+ teknologi sparer plads på harddisken.
  • Intelligent bevægelsesdetektering på alle 16 kanaler.
  • Perimeterbeskyttelse på op til otte kanaler.
  • Ansigtsgenkendelse på op til fire kanaler.
  • Plads til to harddiske med op til 12 TB hver.

Få adgang til dine optagelser via appen Hik-Connect.

En optager med deep learning-teknologi, der reducerer falske alarmer og giver effektiv overvågning døgnet rundt.

PDF
Datablad Manual Quick Guide
  • Facial Recognition
  • Face Picture LibraryUp to 16 face picture libraries; HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
  • Face Picture Comparison4-ch face picture comparison alarm (HD analog camera)
  • Motion Detection 2.0
  • Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
  • Perimeter Protection
  • Human/Vehicle AnalysisUp to 8-ch (advanced model)
  • Facial Detection
  • Facial Detection and CaptureFace picture detection, face picture search； 4-ch face picture capture
  • Video and Audio
  • IP Video Input8-ch (up to 24-ch), each up to 6MP
  • Analog Video Input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • CVBS InputPAL/NTSC
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Synchronous Playback16-ch
  • HDTVI Input3K(2960 x 1665)@25/20fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30fps,1080P@25/30 fps, 720P@25/30fps
  • AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • HDCVI Input3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)，16-ch via coaxial cable
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding ResolutionWhen 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
  • Frame RateMain stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Video Bitrate32 Kbps to 6 Mbps
  • Dual-streamSupport main stream or sub stream
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Decoding
  • Decoding Capabilityup to 24-ch 1080P@30fps
  • Network
  • Total Bandwidth256 Mbps
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
  • Remote Connection128
  • Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA2 SATA interface, up to 12 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex)
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 2 × USB 3.0
  • Alarm In/OutN/A (optional to support)
  • General
  • Power Supply12 VDC, 3.3 A
  • Consumption≤40 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
  • Weight≤ 2 kg (4.4 lb)
