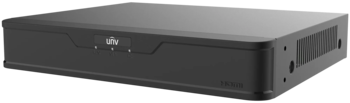

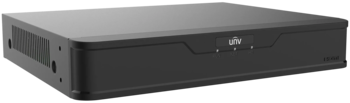

Uniview XVR301-08Q3 8 channels DVR

Model: XVR301-08Q3
NDAA
1.599,00  Incl. VAT
( 1.279,20  Excl. VAT )
Availability: In stock In stock
Do you have questions about the product? +45 70701009

8 Kanals optager til analoge og analoge HD kameraer (TVI, AHD, CVI, CVBSI)

  • 12 kanaler i alt – otte analoge og fire ekstra IP.
  • Op til otte megapixel ved otte billeder i sekundet.
  • HDMI-udgang.
  • Gratis app.
  • Understøtter intelligent analyse, menneske- og køretøjsdetektering samt alarmbeskeder.
  • Dansk, svensk, norsk og engelsk menu.

En god optager til at holde liv i et gammelt overvågningssystem og samtidig muliggøre en gradvis overgang til IP.

View full description

  • WD Purple SATA Hard Drive
    Price from
    465,00  Incl. VAT
    ( 372,00  Excl. VAT )
    WD Purple SATA Hard Drive

    Hard drive specially developed for surveillance/NVR

  • HDMI cable
    Price from
    39,00  Incl. VAT
    ( 31,20  Excl. VAT )
    HDMI cable

    HDMI cable – connect your NVR to TV or computer monitor

  • WD Purple SATA Hard Drive
    Price from
    465,00  Incl. VAT
    ( 372,00  Excl. VAT )
    WD Purple SATA Hard Drive

    Hard drive specially developed for surveillance/NVR

  • Uniview TR-JB03-G-IN
    149,00  Incl. VAT
    ( 119,20  Excl. VAT )
    Uniview TR-JB03-G-IN
  • NDAA
    Uniview 5MP smart-dome IR mic
    3.495,00  Incl. VAT
    ( 2.796,00  Excl. VAT )
    Uniview 5MP smart-dome IR mic

    Avanceret 5MP kamera til overvåging indendørs og udendørs

  • NDAA
    Uniview 5MP analog domekamera
    639,00  Incl. VAT
    ( 511,20  Excl. VAT )
    Uniview 5MP analog domekamera

    Diskret lille analog overvågningskamera i HD

PDF
Datablad Manual Quick Guide
  XVR301-04Q3 XVR301-08Q3
Video/Audio Input
IP Video Input 2-ch 4-ch
Analog Video Input 4-ch, BNC 8-ch, BNC
Max IP Video Input 6-ch 12-ch
Supported Analog Camera Types Support AHD input:
8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support TVI input:
8MP@15fps
3K@20fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVI input:
8MP@15fps
5MP@25fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input		 Support AHD input:
8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support TVI input:
8MP@15fps
3K@20fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVI input:
8MP@15fps
5MP@25fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input
BNC Audio Input 4-ch, channel audio 8-ch, channel audio
RCA Audio Input 1-ch
Video/Audio Output
HDMI Output HDMI: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
BNC Video Output 1-ch
RCA Audio Output 1-ch
Live View Display HDMI/VGA: 1/4/6/8/9 HDMI/VGA: 1/4/6/8/9/16
Encoding/Decoding
Recording Resolution 8MP Lite/5MP Lite/4MP Lite/1080P/720P/D1
Recording Frame Rate Main stream: 8MP Lite@8fps Sub stream: D1@8fps
Main stream: 3K Lite@12fps Sub stream: D1@12fps
Main stream: 5MP Lite@12fps Sub stream: D1@12fps
Main stream: 4MP Lite@15fps Sub stream: D1@15fps
Main stream: 1080P@15fps Sub stream: D1@15fps
Main stream: 720P@30fps Sub stream: D1@30fps
Audio Sample Rate 8 kHz, 16 bit per channel
Audio Bit Rate 64 Kbps per channel
Decoding Capability Analog: 4 x 8MP Lite@8, 4 x 3K Lite@12, 4x 5MP Lite@12, 4x 4MP Lite@15, 4 x 1080P@15
IP: 1 x 4MP@30, 2 x 1080P@30		 Analog: 8 x 8MP Lite@8, 8 x 3K Lite@12, 8 x 5MP Lite@12, 8 x 4MP Lite@15, 8 x 1080P@15
IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30
Two-way Audio
Two-way Audio 1-ch, RCA (Using the audio input and output)
Analog Snapshot
FTP/Schedule/Event Snapshot Schedule/FTP/Event snapshot:4-ch snapshot, up to 704*576 resolution Schedule/FTP/Event snapshot:8-ch snapshot, up to 704*576 resolution
Network
Incoming Bandwidth 40Mbps (Up to 48Mbps after all analog channel conversion) 40Mbps (Up to 56Mbps after all analog channel conversion)
Outgoing Bandwidth 48Mbps 64Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP
Browser(Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Smart
Analog Smart by XVR SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)
IP Smart by IPC Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking
VCA Search Face Search, Behavior Search
Smart Functions by XVR 4-ch (UMD), 2-ch (SIP) 8-ch (UMD), 2-ch (SIP)
Smart Functions by IP Camera 2-ch (SIP)
Alarm
General Alarm Motion
Alert Alarm IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA 1 SATA interface
Capacity Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface 1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB Rear panel: 2 × USB2.0
RS485 1
Alarm In 4-ch
Alarm Out 1-ch
Power Supply DC 12 V/2 A
Working Environment
Working Temperature -10 ℃ to 55 ℃ (14 ℉ to 131 ℉ )
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HDD) ≤ 10W
Dimensions
Weight (without HDD) ≤1.1 Kg ( 2.42lb )
Dimensions 260mm ×226mm× 47mm (10.2" × 8.9"×1.8")
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B

There is no reviews yet. Be the first to write us your opinion

Add review:

ONVIF full member

Univiews cameras and recorders support the ONVIF protocol. This means that they can be mixed with equipment from other brands as long as they also support ONVIF.

Alarm in/out

Start shooting when the alarm goes or a door is opened - and use the image analyzes to control your Philips Hue or open a port.
Alarm in and out allows you to connect cameras and recorders to other equipment.

HDMI / VGA

Connect the recorder to your TV or computer screen with HDMI/VGA cable.
You can then configure cameras, watch live views and search in recordings - directly on your NVR. It even comes with a mouse.

Hvor stor en harddisk skal jeg vælge?

Optagere leveres som udgangspunkt uden harddisk, for behovet er ikke det samme for alle.

Når du optager din videoovervågning, så er der flere ting der påvirker, hvor meget optagelserne fylder.
Helt oplagt så betyder antallet af kameraer, og deres opløsning meget - men din konfiguration, og hvor meget der sker foran kameraet, har også en betydning.

Udgangspunktet er, at man hellere skal optage en time for meget end et minut for lidt. Omvendt gider normalt kun nordmænd lave videoer, der viser at græsset gror.

Brug beregneren til at få en fornemmelse af dit pladsbehov. Synes du det er spændende, så læs lidt mere om pladsoptimering nederst på siden. Og har du vigtigere ting for - så bare ring til os...



1) Vælg kameraets opløsning...

2) Vælg antal kameraer...

3) Vælg størrelsen på harddisken...

4) Vælg antal timer med optagelse per dag... 6

1 time

24 timer

Resultat:

Lagringspladsen svarer til cirka 1095 timers videooptagelse.

Med 6 timers optagelse pr dag, kan du typisk gå 182 dage tilbage i tid.1)

1) Værdierne er tilnærmede, og baseret på typiske indstillinger med 25 billeder i sekundet og h265 komprimering.
