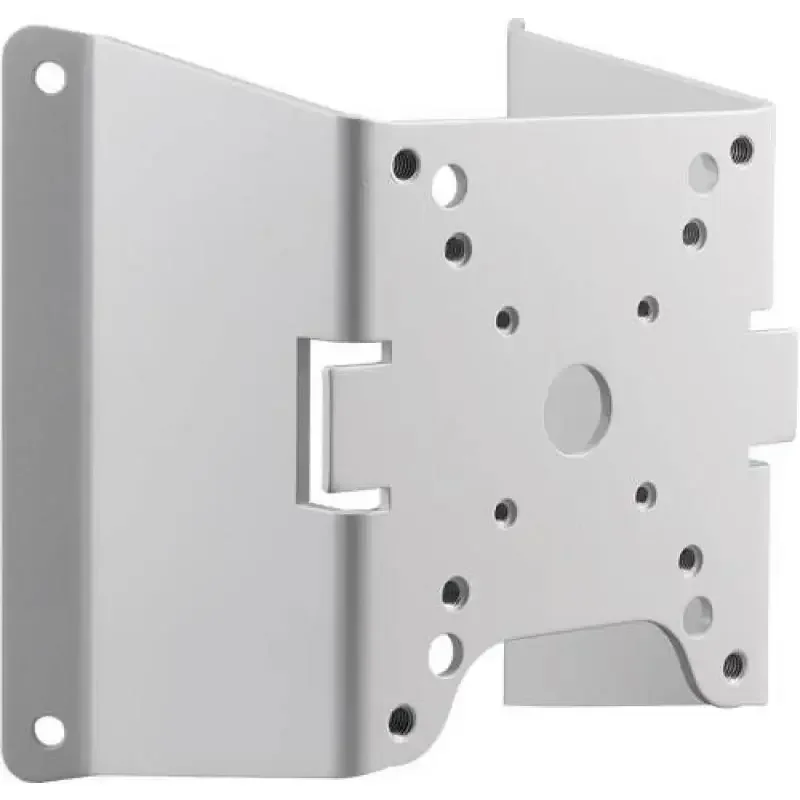

Bosch NDA-U-CMT corner bracket
Corner adapter from Bosch that makes it possible to mount compatible camera brackets on an exterior corner.
- For mounting on exterior corners
- Fits Bosch modular camera brackets
- Made of aluminum
- IK10 rated
- Weather-resistant finish
- White RAL 9003
- Dimensions: 219 × 236 × 148 mm
- Weight: 1.19 kg
| Datasheet | Quick Guide |
| Technical specifications | |
| Model | NDA-U-CMT |
| Product type | Corner mount adapter |
| Application | Installation of Bosch cameras on external corners |
| Design | Modular design for fast and easy installation |
| Finish | Weather-resistant finish |
| Material | Aluminum alloy |
| Color | White (RAL 9003) |
| Dimensions (W × H × D) | 219 × 236 × 148 mm |
| Weight | 1192 g |
| Impact resistance | IK10 |
| Salt mist resistance | IEC 60068-2-52 |
| Compatible accessories | |
| Pendant wall mount | NDA-U-WMT |
| Wall mount plate | NDA-U-WMP |
| Surveillance cabinets | NDA-U-PA0, NDA-U-PA1, NDA-U-PA2 |
| Pendant wall/ceiling mount SMB | NDA-U-PSMB |
| Parts included | |
| Corner mount | 1 |
| M6 × 20 mm hex screws | 4 |
| M6 spring washers | 4 |
| M6 washers | 4 |
| 3/8"-16 × 1.75" hex screws | 4 |
| 3/8" spring washers | 4 |
| Quick Installation Guide | 1 |
| Der tages forbehold for eventuelle fejl og ændringer i specifikationerne / Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
Mount Bosch camera on a corner
Bosch NDA-U-CMT is a corner adapter used when a surveillance camera needs to be mounted on an exterior corner of a building.
The bracket is mounted directly on the corner and then serves as a base for a compatible Bosch wall bracket or other mounting accessories.
It’s a practical solution, for example, if the camera needs to be placed on the corner of a building to get a better view along the facade, driveway, or around the building.
Part of Bosch's modular bracket system
NDA-U-CMT is part of Bosch's modular mounting system. This means the corner bracket is combined with other Bosch accessories depending on how the camera needs to be mounted.
The corner bracket can be combined with, among other things:
- Bosch NDA-U-WMT wall bracket
- Bosch NDA-U-WMP mounting plate
- Bosch NDA-U-PA0, NDA-U-PA1 and NDA-U-PA2 boxes
- Bosch NDA-U-PSMB mounting box
For outdoor installation
The bracket is made of aluminum and has a weather-resistant finish, so it is designed for outdoor installation.
It is also rated IK10, which means it has a high level of resistance to impacts and physical force.
Accessories
In the accessories tab, you can see which brackets and accessories are compatible.
Technical key points
- Model: Bosch NDA-U-CMT
- Type: Corner adapter
- Mounting: Exterior corner
- Material: Aluminum
- Impact resistance: IK10
- Color: White (RAL 9003)
- Dimensions: 219 × 236 × 148 mm
- Weight: 1192 g
