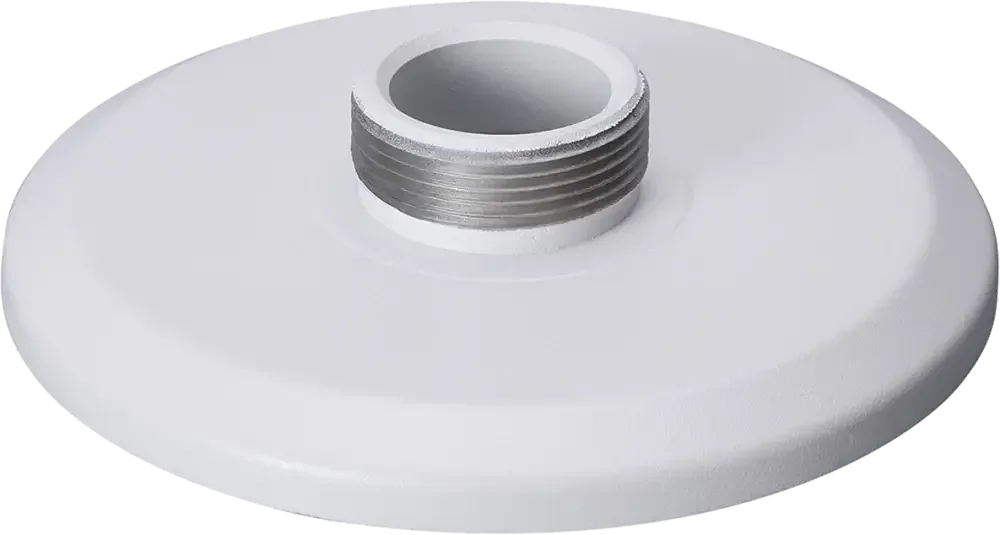

Dahua PFA101 mounting adapter for camera
Aluminium mounting adapter for compatible Dahua cameras with G1 1/2" thread and a load capacity of up to 3 kg.
- For compatible Dahua cameras
- Made of aluminium
- G1 1/2" thread
- Maximum load of 3 kg
- Diameter of 159 mm
- For ceiling mounting and compatible brackets
- Operating temperature from −40 °C to 60 °C
Dahua DH-PFA101 is a mounting adapter used between a compatible Dahua camera and the chosen mounting solution. The adapter provides the necessary mounting points and a G1 1/2" thread, allowing the camera to be integrated into different Dahua bracket systems.
| Technical specifications | |
| Model | DH-PFA101 |
| Product type | Mount Adapter |
| Installation | Ceiling mount |
| Material | Aluminum alloy |
| Colour | White |
| Dimensions | Ø159.0 × 34.6 mm |
| Net weight | 0.23 kg |
| Gross weight | 0.28 kg |
| Load bearing | Up to 3.0 kg |
| Screw thread | G1 1/2 |
| Compatibility | Designed for selected Dahua cameras; compatibility depends on camera model |
| Operating temperature | -40 °C to +60 °C |
| Operating humidity | <90% RH |
| Storage temperature | -40 °C to +60 °C |
| Storage humidity | 10%–90% RH |
| Anti-corrosion protection | Basic Protection |
| Packaging dimensions | 177 × 177 × 52 mm |
| Package contents | 1 × Mount adapter, 4 × M4×10 screws |
| Der tages forbehold for eventuelle fejl og ændringer i specifikationerne / Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
Adapter between camera and mounting bracket
DH-PFA101 is used as part of the camera’s mechanical mounting. Depending on the selected camera and other brackets, the adapter can be included in solutions for, for example, ceiling, wall, pole, or corner mounting.
It is important to check compatibility with the specific camera, as Dahua specifies the adapter for certain camera models.
G1 1/2" thread
The adapter has a G1 1/2" thread, which is used for connecting with compatible Dahua mounting parts.
This makes DH-PFA101 suitable as an interface between the camera and other parts of a complete bracket system.
Aluminium construction
DH-PFA101 is made of aluminium and has a net weight of approximately 230 grams.
The adapter can support equipment weighing up to 3 kg when used together with a correctly installed and compatible mounting solution.
For demanding temperature conditions
The adapter can be used at temperatures from −40 °C to 60 °C and at a relative humidity of under 90%.
This makes it suitable for both indoor and outdoor camera setups, when the rest of the installation is designed for the same conditions.
Supplied with mounting screws
The package includes the DH-PFA101 mounting adapter itself as well as four M4 × 10 mm screws.
Compatibility
DH-PFA101 fits only certain Dahua cameras and mounting brackets. Always check the camera’s accessories overview before ordering.
Compatible Dahua accessories can be found under the Accessories tab.
Technical key points
- Model: DH-PFA101
- Product type: Mounting adapter
- Material: Aluminium
- Color: White
- Mounting: Ceiling mount / part of compatible bracket system
- Thread: G1 1/2"
- Maximum load: 3.0 kg
- Dimensions: Ø159.0 × 34.6 mm
- Net weight: 0.23 kg
- Gross weight: 0.28 kg
- Operating temperature: −40 °C to 60 °C
- Operating humidity: Below 90% RH
- Corrosion protection: Basic Protection
- Included: 1 × mounting adapter and 4 × M4 × 10 mm screws
