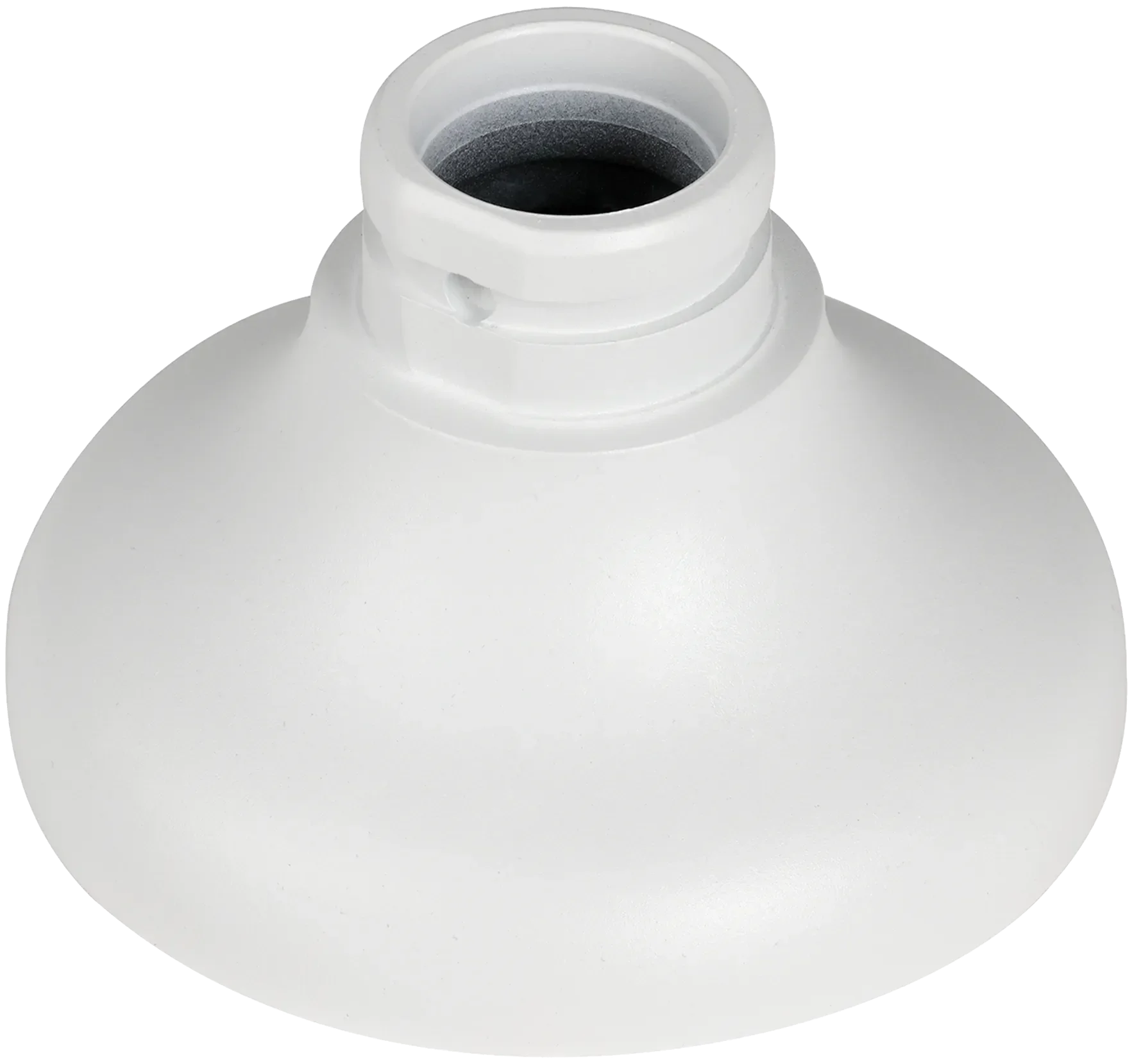

Dahua PFA106 mounting adapter
Aluminium mounting adapter for compatible Dahua cameras and ceiling brackets.
- For compatible Dahua cameras
- Used as an adapter for ceiling mounting
- Made of aluminium
- Can support up to 1 kg
- Dimensions: Ø134.1 × 83.5 mm
- White finish
DH-PFA106 is a mounting adapter from Dahua used between a compatible camera and the selected ceiling mount. The adapter provides the necessary mounting points so the camera can be connected correctly to a compatible Dahua bracket.
| Technical specifications | |
| Model | DH-PFA106 |
| Product type | Mount Adapter |
| Installation | Ceiling mount |
| Material | Aluminum alloy |
| Colour | White |
| Dimensions | Ø134.1 × 83.5 mm |
| Net weight | 0.29 kg |
| Gross weight | 0.37 kg |
| Load bearing | Up to 1.0 kg |
| Compatibility | Designed for selected Dahua cameras; compatibility depends on camera model |
| Operating temperature | -40 °C to +60 °C |
| Operating humidity | <90% RH |
| Storage temperature | -40 °C to +60 °C |
| Storage humidity | 10%–90% RH |
| Anti-corrosion protection | Basic Protection |
| Packaging dimensions | 155 × 153 × 113 mm (L × W × H) |
| Package contents | 1 × Mount adapter, 4 × M4×10 screws, 1 × S3.0 wrench, 1 × installation guide |
| Der tages forbehold for eventuelle fejl og ændringer i specifikationerne / Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
Adapter for mounting Dahua cameras
PFA106 is used when a camera cannot be mounted directly on the selected bracket. The adapter acts as the link between the camera and the rest of the mounting setup, making it possible to put together a suitable ceiling solution.
The exact combination depends on the camera model, so compatibility should always be checked before ordering.
Can support up to 1 kg
The adapter can support camera equipment weighing up to 1 kg.
It is therefore important to check the weight of the camera and the other parts included in the mounting setup.
Made of aluminium
PFA106 is made of aluminium and has a white finish that matches many of Dahua's cameras and brackets.
Multiple mounting points
The adapter has multiple mounting holes, so it can be used with various compatible Dahua camera models.
This makes it possible to connect the camera to the correct ceiling mount without changing the camera itself.
For different installation environments
DH-PFA106 can be used at temperatures from −40 °C to +60 °C and at a relative humidity of below 90 %.
Mounting accessories included
The package includes the mounting adapter, four M4 × 10 mm screws, a S3.0 hex key, and an installation guide.
Compatibility
DH-PFA106 fits selected Dahua cameras and mounting brackets. Therefore, always check the camera's accessories overview before ordering.
Compatible Dahua accessories can be found under the Accessories tab.
Technical key points
- Model: DH-PFA106
- Type: Camera mounting adapter
- Material: Aluminium
- Mounting: Ceiling
- Can support up to 1 kg
- Dimensions: Ø134.1 × 83.5 mm
- Colour: White
- Weight: Approx. 0.29 kg
- Operating temperature: −40 °C to +60 °C
- Operating humidity: Below 90 % RH
- Included: 4 × M4 × 10 mm screws
- Included: S3.0 hex key
- Included: Installation guide
