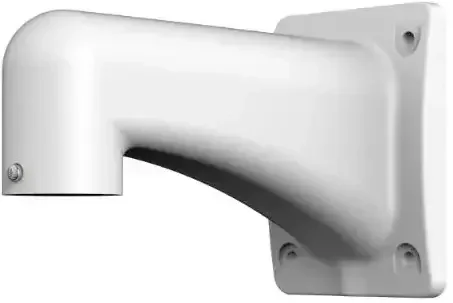

Dahua PFB303W Wall Mount for PTZ Camera
Aluminum wall mount for mounting PTZ camera on wall or façade
- Used to mount PTZ cameras on a wall
- Gives the camera a stable position and good clearance from the wall
- Allows cables to be routed through the mount
- Suitable for both indoor and outdoor installation
Dahua PFB303W is a wall mount for PTZ cameras when you need a stable and neat installation. The bracket lifts the camera away from the wall, giving you better room for both positioning and cable routing.
| Download |
| Datasheet |
| Model | DH-PFB303W |
| General | |
| Material | Aluminum |

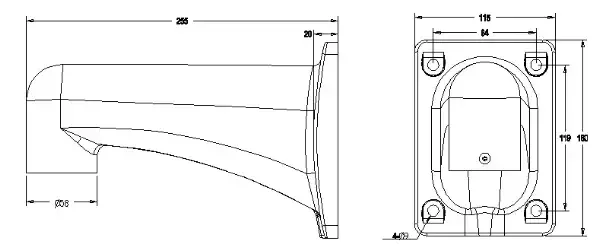

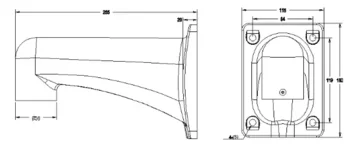

| Dimension(WxHxD) | 115mmx160mmx255mm (4.53”x6.3”x10.04”) |
| Weight | 0.66kg(1.46lb) |
| Load Bearing | 7kg(15.43lb) |
| Color | White |
| Operating Temperature | -40℃~+60℃(-40℉~+140℉) |
| Humidity | <90% RH |
| Applicable Model | Please see ”Accessory Selection” |
There is no reviews yet. Be the first to write us your opinion
Wall mount for PTZ cameras
The PFB303W is designed for mounting Dahua PTZ cameras on a wall or façade. It's typically used when the camera needs to be placed securely and correctly, giving the right angle and an installation where cables can be hidden as effectively as possible.
Mounting on wall or façade
The bracket is made for installation on fixed vertical surfaces like masonry, façades, or walls. It makes it easier to position a PTZ camera so it has an unobstructed view while sitting securely. This type of mounting is often used on buildings, driveways, gates, and other areas where the camera needs to monitor a larger area.
Concealed cable routing
One of the advantages of the bracket is that cables can be routed through its structure. That gives a neater installation because wires and connections aren't visible hanging under the camera. At the same time, the cables are better protected from weather, moisture, and external damage.
Material and construction
The PFB303W is made of aluminum alloy, a material commonly used for camera brackets because it offers a good balance between strength and weight. That means the bracket is solid enough for PTZ cameras, while still light enough to be easy to work with during installation.
Suitable for outdoor use
The bracket can be used both indoors and outdoors and is made to work in environments with large temperature fluctuations. That makes it well suited for locations where the camera will be permanently mounted and exposed to normal weather conditions.
Accessories
The bracket fits several Dahua PTZ cameras with the same mounting standard. You can always visit the camera's product page and check the accessories tab to find the mounts and mounting parts that fit that specific model.
Technical key points
- Product type: Wall mount
- Use: PTZ camera
- Material: Aluminum alloy
- Color: White
- Max. load: 7 kg
- Thread: G1 1/2\"
- Dimensions: 257.2 × 115 × 160 mm
- Weight: 0.67 kg
- Temperature range: -40 °C to +60 °C
- Operating humidity: Below 90% RH
- Corrosion level: Basic protection
