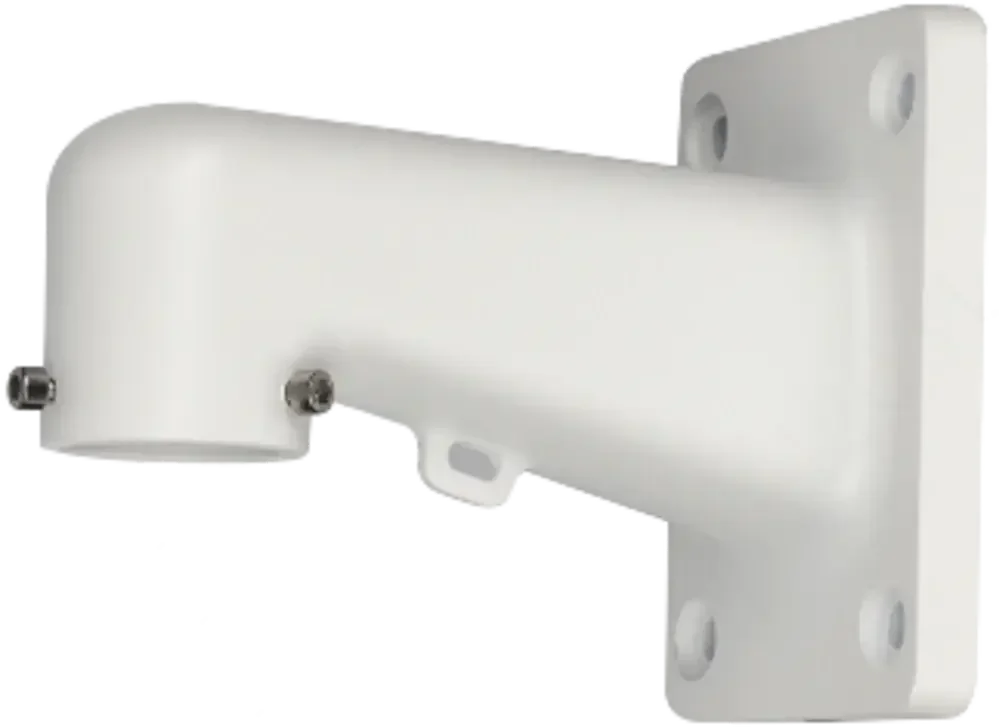

Dahua PFB305W wall mount bracket for camera
Aluminum wall mount bracket for compatible Dahua cameras
- For wall mounting compatible Dahua cameras
- Made of aluminum
- Maximum load of 5 kg
- White finish
- Operating temperature from −40 °C to 60 °C
- Supplied with mounting screws and hex key
Dahua DH-PFB305W is a wall mount bracket for installing compatible Dahua cameras. The bracket keeps the camera away from the wall and provides a solid mounting base, so the camera can be positioned correctly in relation to the area that needs to be monitored.
| Datasheet |
| Technical specifications | |
| Model | DH-PFB211W |
| Product type | Wall Mount Bracket |
| Installation | Wall mount |
| Material | Aluminum alloy |
| Colour | White |
| Dimensions | 235.4 × 180.3 × 84.2 mm (L × W × H) |
| Weight | 0.97 kg |
| Load bearing | Up to 3.0 kg |
| Operating temperature | -40 °C to +60 °C |
| Operating humidity | <90% RH |
| Compatibility | Designed for selected Dahua cameras; compatibility depends on camera model |
| Der tages forbehold for eventuelle fejl og ændringer i specifikationerne / Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
Wall mount bracket for larger Dahua cameras
DH-PFB305W is designed for camera installations where the camera needs to be mounted directly on a wall. With a load capacity of up to 5 kg, the bracket can be used with a range of compatible Dahua cameras and mounting solutions.
The bracket can be used on façades, warehouses, industrial areas, and other places where the camera needs to be positioned away from the wall to achieve the desired viewing angle.
Load up to 5 kg
DH-PFB305W can support camera equipment with a total weight of up to 5 kg.
This makes it possible to use the bracket with larger compatible camera models, as long as the total load stays within Dahua’s specified limit.
Made of aluminum
The bracket is made of aluminum and has a net weight of approximately 640 grams.
The white finish matches many of Dahua’s cameras and other mounting accessories.
For wall mounting
The bracket is specifically designed for wall mounting and gives the camera some distance from the mounting surface.
This can be an advantage when the camera’s field of view would otherwise be affected by the wall itself, roof overhangs, or other parts of the building.
For different temperature conditions
DH-PFB305W can be used at temperatures from −40 °C to 60 °C and at relative humidity below 90 %.
This makes the bracket suitable for many indoor and outdoor installations, as long as the camera and the other mounting accessories are designed for the same conditions.
Basic Protection against corrosion
Dahua classifies the bracket with Basic Protection against corrosion.
This means the bracket is intended for normal installation environments and not for areas with particularly high demands for corrosion resistance.
Mounting accessories included
Three M6 × 14 mm screws and an S5.0 hex key are included with the wall bracket.
The relevant accessories for securing it to the wall itself depend on the wall type and the installation.
Compatibility
DH-PFB305W fits selected Dahua cameras and can be used together with other compatible mounting accessories.
Always check the camera’s accessory overview before ordering. Compatible Dahua accessories can be found under the Accessories tab.
Technical key points
- Model: DH-PFB305W
- Product type: Wall mount bracket
- Material: Aluminum
- Color: White
- Mounting: Wall mounting
- Maximum load: 5.0 kg
- Dimensions: 202.5 × 115.0 × 160.0 mm
- Net weight: 0.64 kg
- Gross weight: 0.81 kg
- Operating temperature: −40 °C to 60 °C
- Operating humidity: Below 90 % RH
- Corrosion protection: Basic Protection
- Included: 1 × wall mount bracket
- Included: 3 × M6 × 14 mm screws
- Included: 1 × S5.0 hex key
