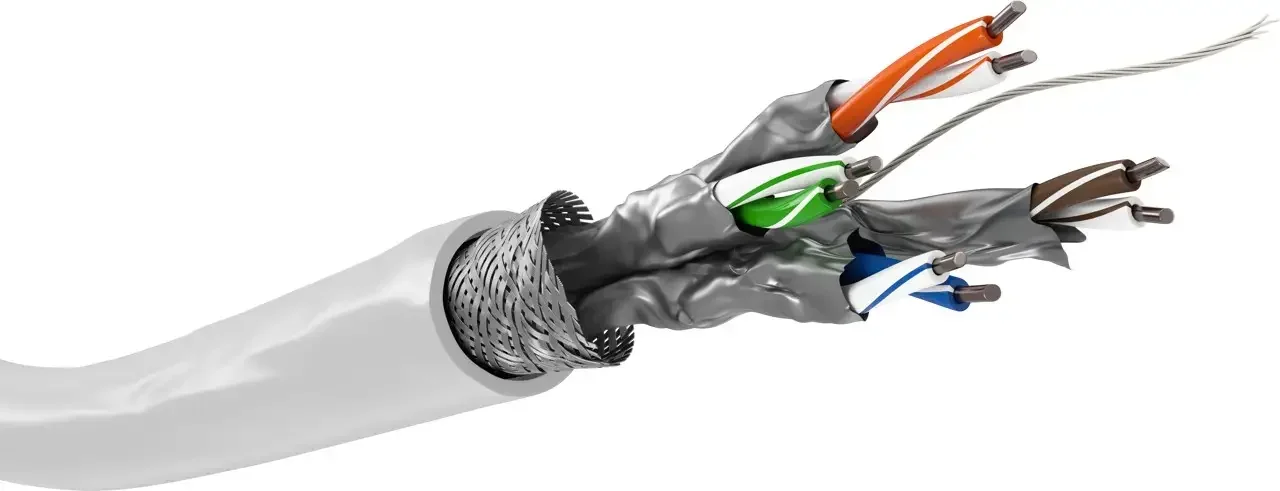

Cat 6 S/FTP Network Cable on Reel - White
Cat6 S/FTP shielded network cable - extra protection against electrical noise.
- Cat6 S/FTP installation cable
- For indoor installation
- Suitable for IP cameras and PoE
- Extra shielding against electrical noise
- Supports Gigabit Ethernet
- Meter marking on the cable
- Solid conductor for fixed installations
- White PVC jacket
This Cat6 S/FTP installation cable is designed for fixed network installations where a stable network connection and extra protection against electrical noise are needed. It is suitable for IP cameras, access points, network outlets, and other network equipment in both private and professional installations.
| Technical specifications | |
| Product type | CAT 6A Network Cable, S/FTP (PiMF) |
| Specification | CAT 6A |
| Shielding class | S/FTP (PiMF) |
| Cable type | Round cable |
| Cable specifications | |
| Diameter of insulated conductor | 1.03 mm (+/-0.05) |
| Cable sheath diameter | Approx. 5.9 mm |
| Inner conductor material | CU (copper) |
| AWG | 26/7 (stranded) |
| Number of shieldings | 2 × |
| Shielding 1 | Foil (alu) PiMF |
| Shielding 2 | Braid (alu) overall shield |
| Cable sheath material | LSZH |
| LSZH compliant | Yes |
| Fire class (CPR) | Fca |
| Meter scaling | Yes |
| Cable length | 50 m |
| Signal transmission | |
| Maximum bandwidth | 500 MHz |
| Maximum transmission rate | 10 Gbit/s |
| Impedance | 100 Ω |
| Usable up to cable length | 50 m |
| Environmental specifications | |
| Operating temperature | -20 °C to 60 °C |
| General | |
| Color | Grey |
| Markings | CE |
| Packaging type | Cable ring-coil |
| Consumption unit | 1 pc. coil |
| Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
Cat 6 S/FTP Shielded Network Cable on Reel
The cable comes without mounted connectors and can be cut to the length that fits the installation.
It is suitable for installation in cable trays, cable ducts, walls, and ceilings, where a permanent network connection is desired.
Extra protection against electrical noise
The S/FTP shielding protects the network signal from interference caused by electrical noise from, for example, power cables, machines, and other electrical equipment.
This provides a more stable connection in installations where the cables run close to other installations.
Suitable for IP cameras
The cable is an obvious choice for IP cameras and other network equipment that uses PoE.
PoE makes it possible to send both power and data through the same network cable, which gives a simpler installation.
Stable network connection
The Cat6 cable supports Gigabit Ethernet and provides a stable connection for both private and professional installations.
It can be used for computers, switches, routers, access points, NAS servers, and much more network equipment.
Meter marking on the cable
The cable is marked with a running meter indication.
This makes it easy to measure the cable length and keep track during installation.
Solid conductor for installation
The cable is built with solid copper conductors designed for fixed installations.
This provides a stable connection and makes the cable suitable for longer cable runs in buildings.
Technical key points
- Product type: Cat6 installation cable
- Category: Cat6
- Shielding: S/FTP (PiMF)
- Inner conductor: Solid copper (CU)
- Conductor size: AWG 23/1
- Conductor: Solid
- Cable jacket: PVC
- Bandwidth: Up to 250 MHz
- Supports: Gigabit Ethernet and PoE
- Meter marking: Yes
- Color: White
