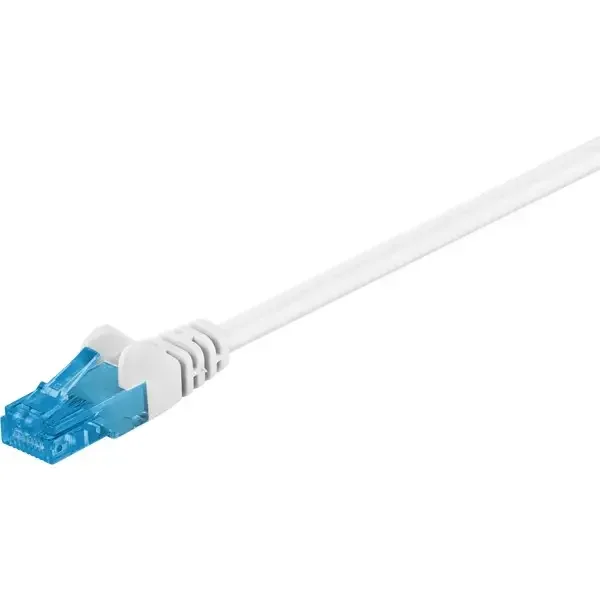

Cat6A U/UTP Standard Network Cable - White
Unshielded CAT 6A network cable with RJ45 connectors, pure copper conductor, and halogen-free LSZH jacket.
- CAT 6A network cable
- RJ45 connectors on both ends
- U/UTP – unshielded
- Up to 500 MHz
- Pure copper conductor – not CCA
- Supports PoE and PoE+
- Halogen-free LSZH jacket
- Locking tab protection on both connectors
- White
The cable is used to connect network equipment with RJ45 and is suitable for example surveillance cameras, NVR recorders, switches, routers, and patch panels.
| Technical specifications | |
| Product type | CAT 6A Patch Cable, U/UTP |
| Specification | CAT 6A |
| Shielding class | U/UTP |
| Maximum bandwidth | 500 MHz |
| Connections | |
| Connection | RJ45 male (8P8C) |
| Connection 2 | RJ45 male (8P8C) |
| Connection contact material | Gold-plated 3 µm |
| Contacting | EIA/TIA-568 B |
| Latch protection | Both sides |
| Kink protection | Both sides |
| Cable specifications | |
| Cable type | Round cable |
| Cable length | 3 m |
| Cable sheath diameter | Approx. 5 mm |
| Inner conductor material | CU (copper) |
| AWG | 26/7 (stranded) |
| Bending radius | > 50 mm |
| Cable sheath material | LSZH |
| LSZH compliant | Yes |
| Environmental specifications | |
| Operating temperature | -20 °C to 65 °C |
| General | |
| Color | White |
| Markings | WEEE, CE |
| Special feature | Length indication on connector |
| Packaging type | Cable Tag |
| Consumption unit | 1 pc. bulk |
| Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
CAT 6A network cable for cameras and network equipment
The network cable has RJ45 connectors on both ends and can be used for standard network installations. It is especially suitable for connecting IP cameras, recorders, switches, and other compatible network equipment.
CAT 6A with up to 500 MHz
The cable is CAT 6A and supports bandwidth of up to 500 MHz. This makes it suitable for modern network installations where a fast and stable connection is required.
Pure copper conductor
The cable’s conductors are made of pure copper and are therefore not a CCA cable, where copper is combined with aluminum. Pure copper provides good electrical properties and is a strong choice for stable network connections, including installations with IP cameras and PoE equipment.
Supports PoE and PoE+
The cable is suitable for PoE and PoE+, where both data and power are transmitted through the network cable. This makes it especially practical for compatible IP cameras, where the camera can be connected to a PoE switch or NVR with PoE.
U/UTP – unshielded network cable
The cable is U/UTP and therefore does not have extra shielding around the conductor pairs or the cable itself. This makes it suitable for standard network installations where a shielded cable is not required.
Halogen-free LSZH jacket
The cable has a halogen-free LSZH jacket. LSZH stands for Low Smoke Zero Halogen and is designed to limit the development of smoke and halogen-based gases if the cable jacket is exposed to fire.
Protected RJ45 connectors
The RJ45 connectors have protection around the locking tab, which helps prevent it from being damaged or caught when the cable is installed and removed.
Technical key points
- Type: RJ45 network cable / patch cable
- Category: CAT 6A
- Connector 1: RJ45 male (8P8C)
- Connector 2: RJ45 male (8P8C)
- Shielding: U/UTP
- Max. bandwidth: 500 MHz
- Conductor material: CU / pure copper
- Conductor construction: 26/7 stranded
- Cable diameter: approx. 5 mm
- Cable jacket: LSZH, halogen-free
- PoE: Yes
- PoE+: Yes
- Wiring standard: EIA/TIA 568B
- Locking tab protection: Yes, on both connectors
- Color: White
