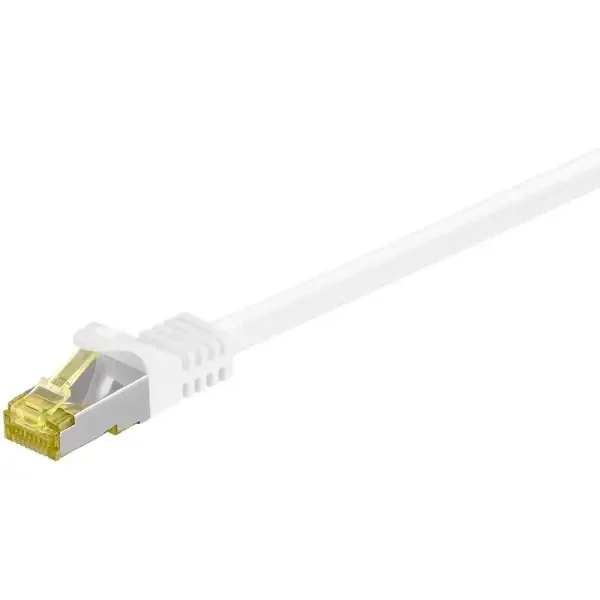

Cat6A S/FTP Shielded Network Cable - White
Shielded CAT 6A network cable with RJ45 connectors, copper conductors and a halogen-free LSZH jacket.
- CAT 6A network cable
- RJ45 connectors on both ends
- S/FTP (PiMF) shielding
- Up to 500 MHz
- Copper conductors
- Halogen-free LSZH jacket
- White
The cable is used to connect network equipment with RJ45 and is suitable for, for example, surveillance cameras, NVR recorders, switches, routers and patch panels.
| Technical specifications | |
| Product type | RJ45 Patch Cord CAT 6A S/FTP (PiMF) with CAT 7 Raw Cable |
| Specification | CAT 7 |
| Cable type | Cat 7 raw cable |
| Shielding class | S/FTP (PiMF) |
| Maximum bandwidth | 500 MHz |
| Data transmission | 10/100/1000/10000 Mbit/s |
| PoE | PoE, PoE+ |
| Connections | |
| Connection | RJ45 male (8P8C) |
| Connection 2 | RJ45 male (8P8C) |
| Contacting | EIA/TIA-568 B |
| Contact material | Gold-plated 50 µm |
| Connection shielding | Yes |
| Latch protection | Both sides |
| Kink protection | Both sides |
| Cable specifications | |
| Cable length | 2 m |
| Cable sheath diameter | Approx. 6.2 mm |
| Inner conductor material | CU (copper) |
| AWG | 26/7 (stranded) |
| Number of shieldings | 2 × |
| Shielding 1 | Foil (alu) PiMF |
| Shielding 2 | Braid (alu) overall shield |
| Bending radius | > 48 mm |
| Cable sheath material | LSZH |
| LSZH compliant | Yes |
| Environmental specifications | |
| Operating temperature | -20 °C to 65 °C |
| General | |
| Color | White |
| Markings | CE, WEEE |
| Special feature | Length indication on connector |
| Packaging type | Cable Tag |
| Consumption unit | 1 pc. bulk |
| Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
CAT 6A network cable for stable network connections
The network cable is fitted with RJ45 connectors on both ends and can be used to connect compatible network equipment. It is, for example, suitable for installations with surveillance cameras, recorders, switches and patch panels.
Pure copper conductor
The cable’s conductors are made of pure copper and are therefore not a CCA cable, where copper is combined with aluminum. Pure copper offers good electrical properties and is a great choice for stable network connections, including installations with IP cameras and PoE equipment.
CAT 6A with CAT 7 raw cable
The cable is built with CAT 7 raw cable and terminated with CAT 6A RJ45 connectors. It supports a bandwidth of up to 500 MHz.
S/FTP shielding
The cable is S/FTP shielded, with the conductor pairs individually shielded while the cable also has overall shielding. This helps protect the network connection against electrical noise and interference.
Copper conductors
The inner conductors are made of copper and provide a stable connection between compatible network equipment.
Halogen-free LSZH jacket
The cable has a halogen-free LSZH jacket. LSZH stands for Low Smoke Zero Halogen and is designed to limit the development of smoke and halogen-containing gases if the cable jacket is exposed to fire.
For surveillance cameras and network equipment
The cable can be used, among other things, between compatible IP cameras, NVR recorders, PoE switches, standard network switches, routers and patch panels.
Technical key points
- Type: RJ45 network cable / patch cable
- Category: CAT 6A
- Raw cable: CAT 7
- Connector 1: RJ45
- Connector 2: RJ45
- Shielding: S/FTP (PiMF)
- Max bandwidth: 500 MHz
- Conductor material: Copper
- Cable jacket: LSZH, halogen-free
- Color: White
