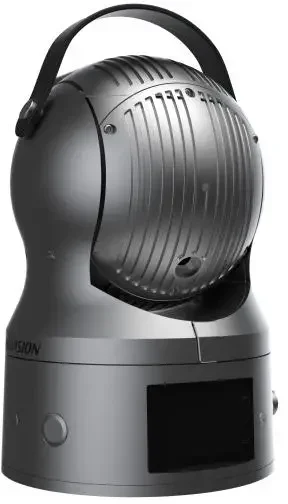

Hikvision iDS-MCD402-E/36X/I/GLE vehicle-mounted 4G PTZ camera with ANPR
Professional PTZ camera for vehicle mounting with dual cameras, 36× optical zoom, 4G, GPS, and automatic number plate recognition.
- Designed for patrol vehicles, service vans, and mobile control units
- Dual camera system with PTZ zoom camera and 4K wide-angle camera
- 36× optical zoom for identification over long distances
- Automatic number plate recognition (ANPR)
- 4G LTE, GPS, Wi-Fi, and Bluetooth
- Magnetic mounting makes the camera easy to move between vehicles
- Replaceable battery ensures operation during vehicle stops or when moving between installations
Hikvision iDS-MCD402-E/36X/I/GLE is designed for professional surveillance from vehicles. The camera mounts quickly on the roof or other magnetic surfaces using the powerful magnetic base and works as a mobile observation platform for, among others, police, emergency services, municipal authorities, road authorities, and other organizations carrying out mobile inspection and surveillance tasks.
The camera combines a powerful PTZ camera with 36× optical zoom and a fixed 4K wide-angle camera, giving the operator both a complete overview and the ability to zoom in on events or vehicles. The integrated 4G connection, GPS, and number plate recognition make it possible to send video and detections directly to the control center without the need for local network infrastructure.
| Technical specifications | |
| Model | iDS-MCD402-E |
| Product type | 4G dual-lens ANPR portable speed dome |
| Image sensors | Dual 1/1.8" Progressive Scan CMOS sensors |
| Maximum resolution | 3840 × 2160 (4K) |
| Zoom | 36× optical zoom and 12× digital zoom |
| Lens 1 | Motorized 6–216 mm lens, F1.3–F4.6 |
| Lens 2 | 2.8 mm fixed lens, F1.7 |
| Field of view | Lens 1: Horizontal 59° to 2.0° Lens 2: Horizontal 102°, Vertical 56°, Diagonal 123° |
| Minimum illumination | Lens 1: 0.005 Lux (colour), 0.0005 Lux (B/W) Lens 2: 0.02 Lux (colour/B/W) |
| Day/night function | Automatic IR cut filter |
| Image stabilization | Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS), 3D DNR and Defog |
| IR illumination | 850 nm IR, up to 100 m |
| Video compression | H.265, H.264 and MJPEG |
| Wide Dynamic Range | 120 dB WDR |
| Display | 2.0" LCD touchscreen (320 × 240) with status information |
| Memory | 2 GB RAM and 4 GB ROM |
| Storage | Dual TF card slots supporting up to 256 GB per card |
| Wireless connectivity | GPS, dual-band Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 4.0 and 4G LTE (model dependent) |
| Network interface | 1 × RJ45 Gigabit Ethernet port, RS-232, RS-485, alarm I/O, Line In/Out and power via aviation connectors |
| API support | ONVIF Profile S, G and T, ISAPI, SDK and ISUP |
| Smart functions | Automatic number plate recognition (ANPR), vehicle recognition, face recognition, helmet detection, phone usage detection, workwear detection, smoking detection, area invasion and intrusion detection |
| PTZ movement | 360° endless pan, -20° to 90° auto-flip tilt, 256 presets and 8 patrols |
| Audio | Built-in microphone and dual built-in speakers (102 dB) |
| Battery | Replaceable 13,400 mAh lithium-ion battery, charging time ≤ 4 hours, operating time up to 9 hours |
| Power supply | 12 VDC, maximum 60 W |
| Protection rating | IP66 weather resistant |
| Operating temperature | -20°C to 60°C, humidity 95% or less, non-condensing |
| Dimensions | 175 × 175 × 262 mm |
| Weight | Approx. 4.35 kg |
| Installation | Wall mounted, tripod mounted or movable bracket installation |
| Included accessories | DS-MH1391 portable PTZ dome battery, AC power cord, adapter, safety rope, screwdriver and composite cable |
| Optional accessories | DS-MH1491 battery charger, DS-MH1695I-H tripod, DS-MH1697-H tripod and DS-MH1790 shock absorber kit |
| Der tages forbehold for eventuelle fejl og ændringer i specifikationerne / Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
Designed for surveillance from vehicles
The iDS-MCD402-E is built for installation on vehicles where a flexible surveillance solution is needed that can be moved quickly between different units. The magnetic mounting base makes installation fast, without requiring any permanent modifications to the vehicle.
The included lithium-ion battery pack works as a mobile power reserve, so the camera can continue to be used during short stops or when being moved between vehicles. During normal operation, the camera is typically connected to the vehicle's power supply.
Dual camera system provides both overview and detail
The camera is equipped with two separate image sensors. The fixed 4K camera monitors a large area, while the PTZ camera with 36× optical zoom can track and identify vehicles, people, or events over long distances.
The two cameras work together and give the operator both situational awareness and the ability to document details without the need for multiple separate cameras.
36× optical zoom
The PTZ camera is equipped with a 6-216 mm lens, delivering 36× optical zoom without any loss of image quality.
The camera can pan 360° continuously and has a tilt range from -20° to 90° with Auto-flip, making it possible to follow vehicles and events in all directions.
Automatic number plate recognition (ANPR)
The built-in ANPR function automatically detects and identifies number plates, making the camera suitable for traffic surveillance, access control, parking control, and mobile police operations.
The detections can be transmitted via 4G to HikCentral or other compatible platforms, so the information is available in real time.
AI-based video analytics
The camera supports a wide range of intelligent analysis functions based on deep learning.
In addition to number plate recognition, it also supports face detection, helmet detection, mobile phone use detection, workwear detection, smoking detection, and intrusion detection. These functions make the camera suitable for traffic, security, and industrial applications.
4G, GPS and wireless communication
The integrated 4G LTE connection makes it possible to send live video and events directly to the control center without a local network connection.
The camera also supports GPS, Wi-Fi, and Bluetooth, providing accurate positioning and flexible communication during mobile operations.
IR up to 100 meters
The powerful infrared illumination provides effective surveillance in darkness at distances of up to 100 meters.
In addition, 3D DNR, Defog, and electronic image stabilization (EIS) improve image quality in rain, fog, vibrations, and other challenging conditions.
Built-in status display
An integrated 2" LCD touch display gives the operator a quick overview of the camera's current status.
The display shows, among other things, battery level, GPS status, network connection, storage capacity, recording status, Bluetooth, Wi-Fi, and active analysis function.
Local storage
The camera is equipped with two memory card slots, each supporting microSD cards of up to 256 GB.
The large local storage capacity makes the solution well suited for mobile installations where network connectivity may be limited.
Integration
iDS-MCD402-E supports ONVIF Profile S, G, and T as well as Hikvision's ISAPI, SDK, and ISUP.
The camera can be integrated with HikCentral Pro, HikCentral Master, Hik-Connect, and other compatible video management systems.
IP66 for outdoor use
The camera is IP66-certified and designed for professional outdoor use in demanding weather conditions.
It can be used at temperatures from -20 °C to +60 °C and is built for operation on vehicles in changing environmental conditions.
Accessories
Compatible accessories such as extra batteries, battery chargers, professional tripods, and vibration-damping mounting kits are available, making the system even more flexible for mobile vehicle installations.
Technical key points
- Model: Hikvision iDS-MCD402-E/36X/I/GLE
- Vehicle-mounted 4G PTZ camera
- Dual camera system
- 36× optical zoom
- 4K wide-angle camera
- Automatic number plate recognition (ANPR)
- Face detection
- AI-based video analytics
- 360° continuous pan
- Tilt -20° to 90° with Auto-flip
- IR range up to 100 meters
- 120 dB WDR
- 3D DNR, Defog, and EIS
- 4G LTE, GPS, Wi-Fi, and Bluetooth
- 2" LCD touch display
- Replaceable 13,400 mAh lithium-ion battery
- Two microSD slots with up to 256 GB per card
- Magnetic mounting base
- IP66
