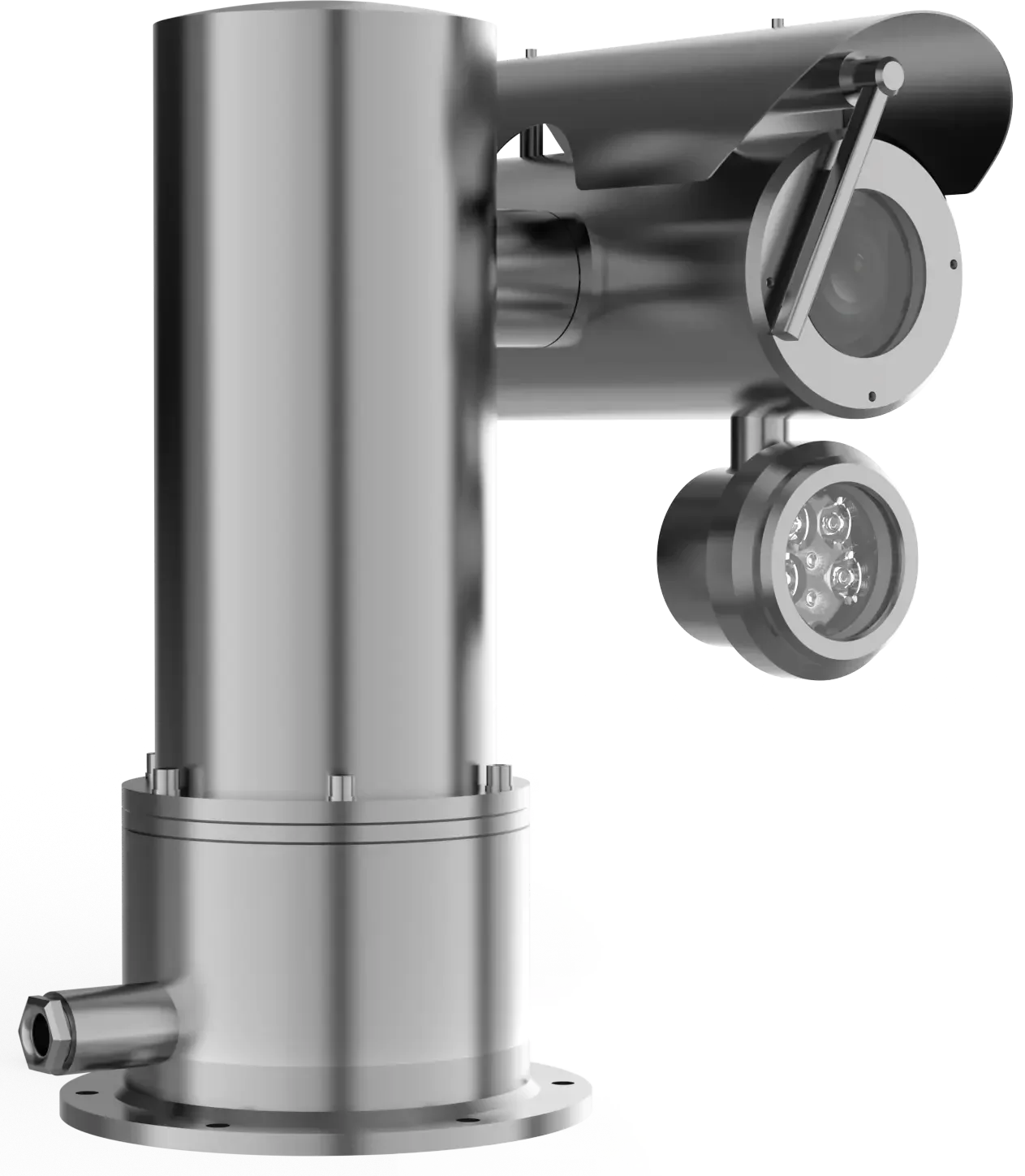

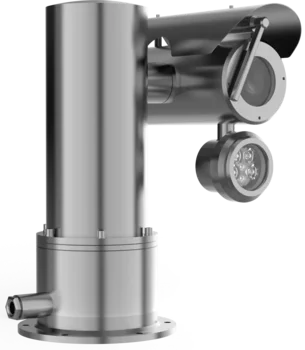

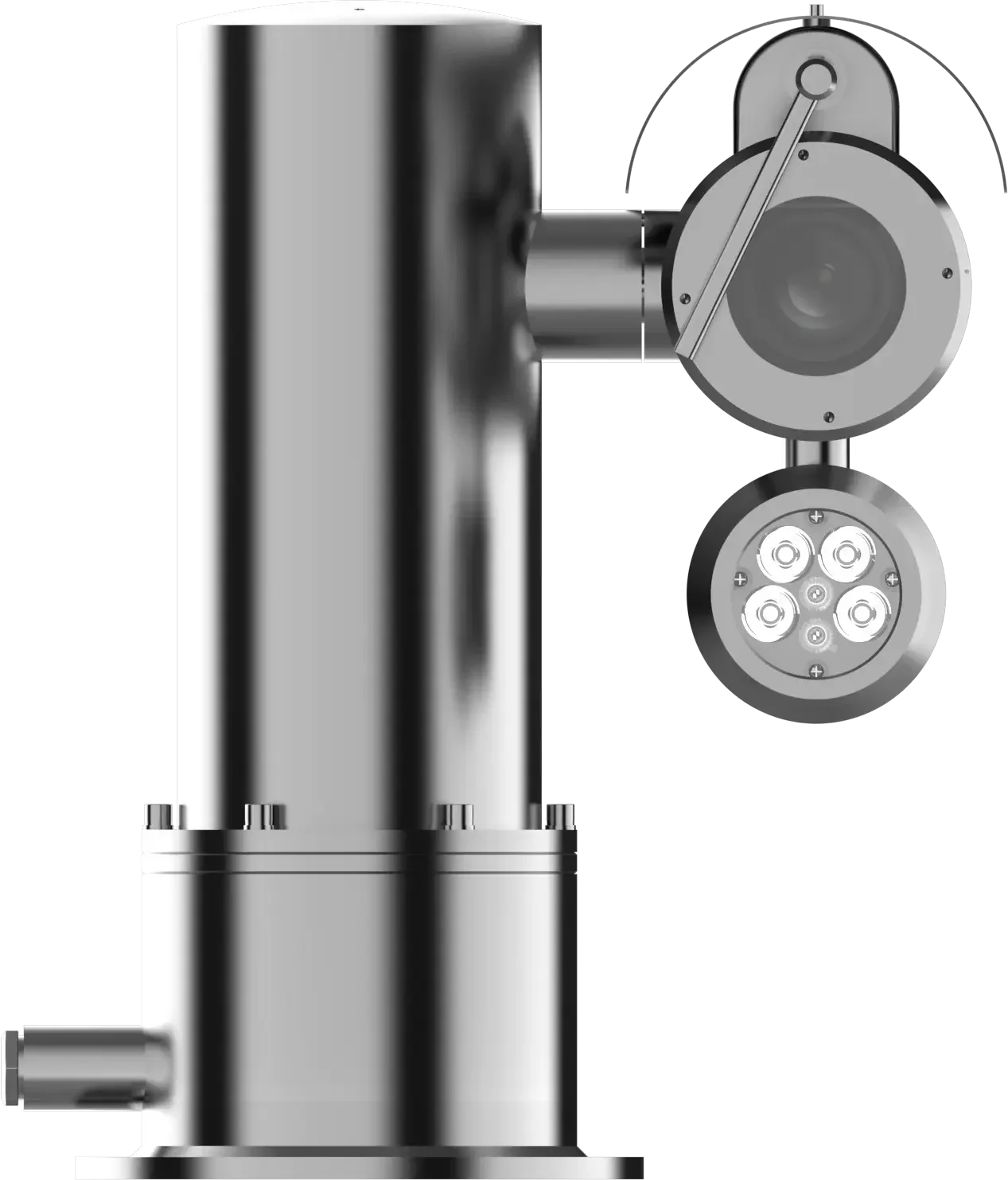

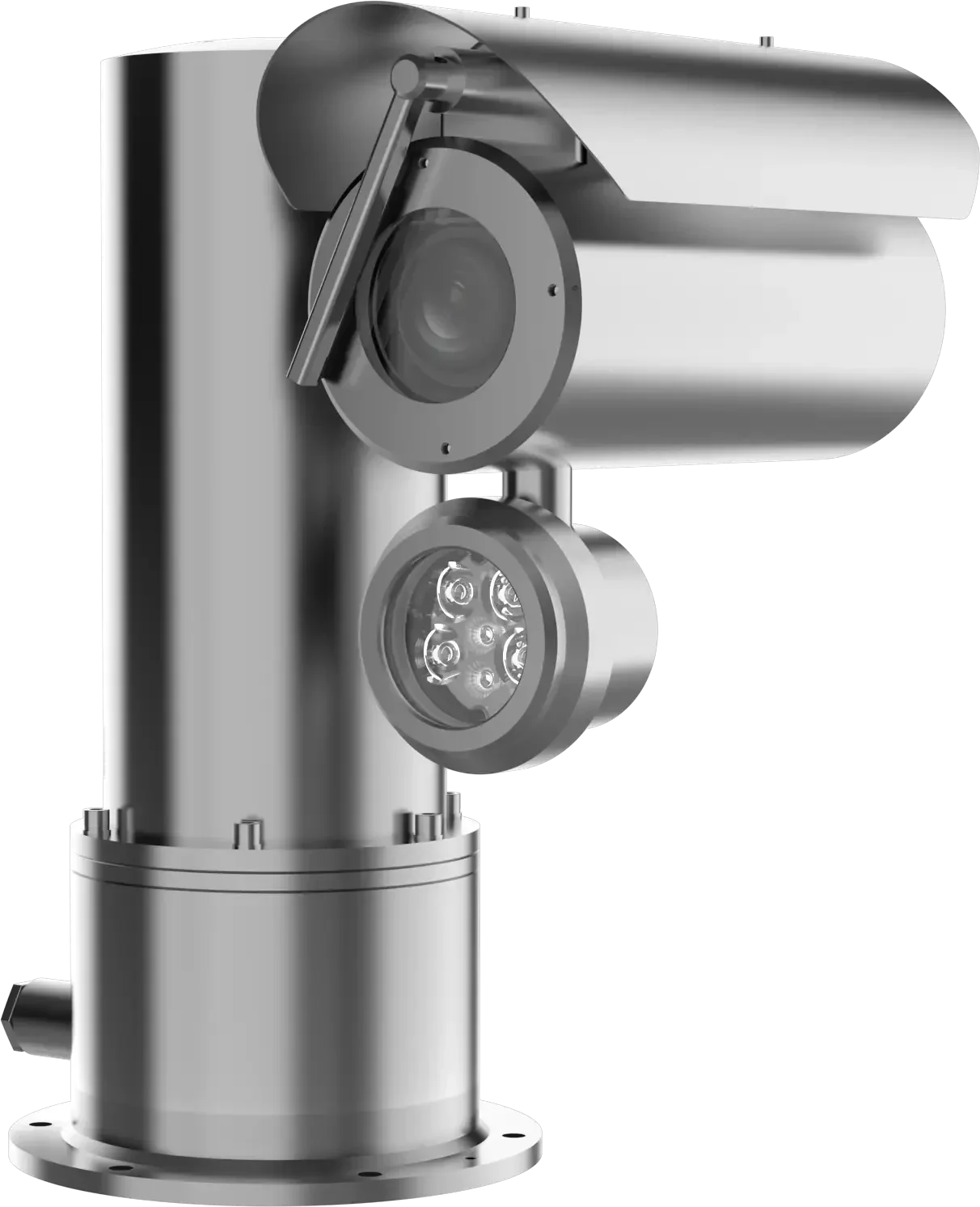

Uniview 4MP explosion-proof PTZ IR 33x

Explosion-proof PTZ camera with long range and AI

EXC7514S-X33-W-VD2 is designed for installations where standard surveillance cameras cannot be used due to explosion protection requirements. The camera housing is made of 316L stainless steel and has both ATEX and IECEx certification, as well as IP68 and NEMA 4X.

At the same time, it works as an advanced PTZ camera with 33x optical zoom, IR up to 200 meters, LightHunter, automatic tracking, and person and vehicle analytics. This makes it possible to monitor a larger area and then follow a relevant event more closely afterwards.

ATEX and IECEx certified

The camera is certified for use in hazardous explosive environments according to both ATEX and IECEx.

The stated Ex marking is ATEX: Ex II 2GD Ex db IIC T6 Gb / Ex tb IIIC T80°C Db and IECEx: Ex db IIC T6 Gb / Ex tb IIIC T80°C Db.

The specific installation must always be assessed in relation to the area classification and the applicable requirements at the installation site.

316L stainless steel

The camera housing is made of 316L stainless steel.

This material offers high corrosion resistance and is suitable for installations where the camera may be exposed to moisture, salt, chemical influences, or other demanding environments.

IP68 protection

EXC7514S-X33-W-VD2 is IP68 rated and has a fully sealed design with high protection against dust and water.

The camera can operate at temperatures from −40 °C to +60 °C.

NEMA 4X

The camera also supports NEMA 4X, which requires enclosure protection against, among other things, water, dust, and corrosion.

4 MP with up to 30 frames per second

The camera delivers a maximum resolution of 2688 × 1520 pixels at up to 30 frames per second.

This provides a detailed video image for both live viewing and later review of recordings.

33x optical zoom

The motorized lens ranges from 6.5 to 214.5 mm and provides 33x optical zoom.

This means the camera can go from a wider overview to a very narrow field of view, where people, vehicles, and other details can be examined from a greater distance.

Optical zoom preserves detail

Because the magnification happens optically in the lens, far more image detail is preserved than with purely digital zoom.

This is especially important on a PTZ camera, where an operator often needs to zoom in on an event far away from the camera.

IR up to 200 meters

The built-in IR illumination has a range of up to 200 meters.

This means the camera can continue monitoring after dark without the need for visible white light.

LightHunter in very low light

LightHunter helps the camera retain more usable detail when normal lighting is very limited.

The camera uses a light-sensitive 1/1.8" CMOS sensor, which provides a solid basis for surveillance in difficult lighting conditions.

120 dB WDR

120 dB WDR helps preserve detail in scenes where there are both very bright and very dark areas at the same time.

This can be relevant, for example, in strong backlight, openings facing daylight, or other places with high contrast.

Gyroscopic image stabilization

The camera has electronic image stabilization based on a gyroscope.

This function helps reduce visible shaking in the image, which is especially important when the camera uses long optical zoom.

Digital Defog

Digital Defog can improve image contrast when fog or haze reduces visibility.

This can make people, vehicles, and other details easier to see in difficult weather conditions.

360-degree continuous pan

The camera can pan continuously 360°, so it does not have a fixed stop in horizontal movement.

The pan speed can be adjusted from 0.1° to 40° per second.

Large tilt movement

The camera can tilt from −90° to +90° at a speed of up to 30° per second.

This makes it possible to follow targets both above and below the camera's normal horizontal position.

1024 saved positions

Up to 1024 fixed PTZ positions can be saved.

This means the camera can quickly move to predefined areas when an operator or an automatic event activates the desired position.

16 automatic patrols

Up to 16 patrols can be created, allowing the camera to automatically move between selected positions.

This makes it possible to monitor several areas continuously with the same camera.

Automatic tracking

Auto Tracking allows the camera to automatically follow a detected target using pan, tilt, and zoom.

When a relevant person or vehicle is detected, the camera can keep the target in view instead of only recording the position where the event started.

Person and vehicle detection

Smart Intrusion Prevention can classify people, motor vehicles, and non-motorized vehicles.

This means events can be targeted at specific types of objects instead of being triggered by all movement in the image.

Smart Intrusion Prevention

The camera supports line crossing, intrusion, and detection of targets entering or leaving a defined area.

The AI analysis also helps filter events that do not match the selected targets.

People counting

The camera supports people counting and can register the flow of people through a defined area.

This makes it possible to work with statistics on how many people pass a specific point.

Monitoring crowd density

In addition to standard people counting, crowd density detection is supported.

This function can be used to keep track of how many people are present in a particular area.

Advanced event detection

The datasheet also lists support for anomaly detection as part of the camera's advanced analytics features.

The exact capabilities depend on the camera configuration and the software or recorder used with the camera.

Five video streams

The camera can deliver up to five separate video streams.

This makes it possible to use different resolutions and data loads for, for example, recording, live viewing, mobile access, and integration with other systems.

H.265 video compression

The camera supports H.265, H.264, and MJPEG as well as U-code.

Video compression helps reduce the amount of data that must be sent over the network and stored on a recorder or other storage media.

microSD up to 512 GB

The camera supports microSD cards with a capacity of up to 512 GB.

Uniview recommends ordering the memory card together with the camera if local storage is desired, as the card is installed during production.

ANR and NAS

The camera supports both ANR and NAS storage.

ANR, together with compatible Uniview equipment, can help preserve recordings during a temporary network interruption, while NAS allows storage on compatible network storage.

Two-way audio

The camera has one audio input and one audio output and supports two-way communication with compatible external audio equipment.

No built-in microphone or speaker is specified.

Seven alarm inputs and two alarm outputs

There are seven alarm inputs and two alarm outputs.

This makes it possible to connect external sensors and other security equipment directly to the camera's events.

RS485

The camera has one RS485 port for integration with compatible external equipment.

Network connection

EXC7514S-X33-W-VD2 has a 10/100 Mbps RJ45 network port and supports a wide range of common network protocols.

Up to 32 users can have different access levels.

AC power supply

The camera is powered by 100 to 240 V AC and has a maximum power consumption of 84 W.

A built-in heating element is included for use in low temperatures.

6 kV surge protection

The camera has surge protection up to 6 kV.

This provides extra protection for the electronics against electrical voltage spikes.

ONVIF integration

The camera supports ONVIF Profile S, G, T, and M as well as SDK.

This makes integration with compatible network recorders and video platforms possible.

NDAA compliant

EXC7514S-X33-W-VD2 is stated by Uniview to be NDAA compliant.

Compatibility

The camera can be managed with, among others, Uniview EZStation, UNV-Link, and UNV-Link Pro and supports ONVIF Profile S, G, T, and M.

Compatible Uniview accessories can be found under the Accessories tab.

Technical key points

• Model: EXC7514S-X33-W-VD2
• Product type: Explosion-proof PTZ network camera
• Resolution: 4 MP
• Max. resolution: 2688 × 1520
• Max. frame rate: 30 fps
• Image sensor: 1/1.8" CMOS
• Lens: 6.5 to 214.5 mm
• Optical zoom: 33x
• Horizontal field of view: 56.7° to 2.60°
• IR range: Up to 200 meters
• LightHunter: Yes
• WDR: 120 dB
• EIS with gyroscope: Yes
• Digital Defog: Yes
• Smart Intrusion Prevention: Yes
• Person and vehicle detection: Yes
• People counting: Yes
• Crowd density monitoring: Yes
• Auto Tracking: Yes
• Pan: 360° continuous
• Pan speed: 0.1°/s to 40°/s
• Tilt: −90° to +90°
• Tilt speed: 0.1°/s to 30°/s
• Presets: 1024
• Patrols: 16
• Video streams: 5
• Video compression: H.265, H.264, and MJPEG
• U-code: Yes
• Privacy Masking: Up to 24 areas
• microSD: Up to 512 GB
• ANR: Yes
• NAS: Yes
• Two-way audio: Yes, via external audio equipment
• Audio input and output: 1/1
• Alarm inputs: 7
• Alarm outputs: 2
• RS485: 1
• Network: 1 × RJ45 10/100 Mbps
• ONVIF: Profile S, G, T, and M
• Material: 316L stainless steel
• ATEX: Ex II 2GD Ex db IIC T6 Gb / Ex tb IIIC T80°C Db
• IECEx: Ex db IIC T6 Gb / Ex tb IIIC T80°C Db
• Protection: IP68
• NEMA 4X: Yes
• Surge protection: 6 kV
• Power supply: 100 to 240 V AC
• Power consumption: Max. 84 W
• Heating element: Yes
• Operating temperature: −40 °C to +60 °C
• Dimensions: 428.6 × 362.8 × 303.11 mm
• Weight: Approx. 23.07 kg
• NDAA compliant: Yes
