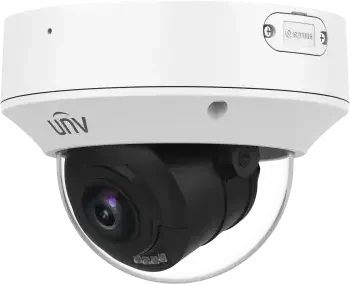

UNV 4 MP dome camera with motorized zoom, IR and white light

4 MP dome camera with motorized zoom and Dual Light

This Uniview dome camera combines 4 MP resolution with motorized zoom and two types of night illumination. This makes it possible to adjust the camera’s field of view and choose the lighting that best fits the area.

The camera also has intelligent analytics that can distinguish between people, motor vehicles, and non-motorized vehicles. This helps focus on relevant events and reduce unnecessary alarms.

Motorized zoom from 2.7 to 13.5 mm

The camera has a motorized lens, so you can adjust the image section without having to change the lens manually.

At 2.7 mm, you get a wide horizontal viewing angle of about 107°, which is well suited for entrances, stores, and larger areas.

At 13.5 mm, the viewing angle is about 29°, so you can zoom in on a specific area and capture more detail.

This makes it easier to adapt the camera to each installation.

Dual Light with IR and white light

The camera has both infrared light and warm white light for monitoring in the dark.

With IR, the camera can record black-and-white night images without visible light. This is practical when you want discreet surveillance.

The warm white light can be used to illuminate the area, so the camera also has the option of showing colors at night. This can be an advantage when the color of clothing, cars, or other objects is important.

Both types of lighting have a range of up to 40 meters.

Good images in challenging lighting conditions

The camera is designed to deliver detailed images, even when lighting is limited.

It can also handle large differences between bright and dark areas. This is useful, for example, at entrances with strong daylight outside and shadow inside.

Person and vehicle detection

The camera can distinguish between people, motor vehicles, and non-motorized vehicles. This helps reduce irrelevant alarms from things like leaves, birds, and changes in lighting.

You can, for example, set the camera to react when someone crosses a certain line, enters an area, or leaves an area.

This is especially useful at entrances, parking lots, warehouse areas, and other places where you want notifications about specific types of activity.

People counting and people density

The camera supports people counting and can be used to register how many people move through an area.

It also supports detection of people density, which can be relevant in stores, reception areas, and other places where you want an overview of foot traffic.

Built-in microphone

The camera has a built-in microphone, so there is an option to capture sound from the area around the camera.

It also has connections for external audio input and output. This makes it possible to use external audio equipment and communicate through the camera if a compatible speaker is connected.

The camera does not have a built-in speaker.

Supports SD card

The camera supports microSD cards up to 512 GB, so recordings can be stored directly in the camera.

This can be used as local storage or as a supplement to a compatible network recorder.

Access from mobile and computer

You can access the camera through Uniview’s app or EZStation on your computer. Here you can view live images and work with the camera’s recordings and settings.

Outdoor use

The camera has IP67 protection against dust and water as well as IK10 protection against impact and vandalism.

This makes it suitable for both indoor and outdoor installations where the camera may be exposed to weather or physical impact.

Accessories

Under the accessories tab, you can see which brackets and accessories fit.

Technical key points

• Model: Uniview IPC3234SB-ADZKM-DL-I1
• Type: IP dome camera
• Resolution: 4 MP (2688 x 1520)
• Image sensor: 1/2.9" CMOS
• Frame rate: Up to 30 frames per second at 4 MP
• Lens: 2.7-13.5 mm motorized zoom
• Aperture: F1.2
• Horizontal viewing angle: 107.4° to 29.2°
• Minimum illumination: 0.001 lux in color
• Dual Light: IR and warm white light
• IR range: Up to 40 meters
• White light: Up to 40 meters
• Smart IR: Yes
• WDR: 120 dB
• Video compression: Ultra 265, H.265, H.264 and MJPEG
• Intelligent analytics: Line crossing, intrusion, area entry and exit
• Target classification: People, motor vehicles and non-motorized vehicles
• Ultra Motion Detection: Yes
• People counting: Yes
• People density detection: Yes
• Built-in microphone: Yes
• Built-in speaker: No
• External audio input/output: 1/1
• Alarm input/output: 1/1
• MicroSD: Up to 512 GB
• Network storage: NAS and ANR
• ONVIF: Profile S, G, T and M
• Network: RJ45 10/100 Mbps
• Power supply: 12V DC or PoE (802.3af)
• Max power consumption: 7.8 W
• Protection: IP67 and IK10
• Material: Metal
• Operating temperature: -30 °C to +60 °C
• Dimensions: Ø148 x 111 mm
• Weight: 930 g

Power over Ethernet

Do like the professionals. POE means that only one cable is needed for the camera. The camera gets power through the network cable, typically from a recorder with built-in PoE, or from a POE switch.

Audio Trigger

Univiews cameras with microphone can also respond to what they don't see. For example, it can be cries or screaming on a women's toilet if you place the camera outside the door.

ONVIF full member

Univiews cameras and recorders support the ONVIF protocol. This means that they can be mixed with equipment from other brands as long as they also support ONVIF.

ANR

Avoid losing recordings with AutomaticNetwork R eplenishment.
If there are network problems, the camera stores the recordings on an SD- card - and then sends them to the recorder when the connection is stable again.

Smart Intrusion Prevention

The camera is constantly analyzing the image and spots people and vehicles in the area you set the camera to protect.
