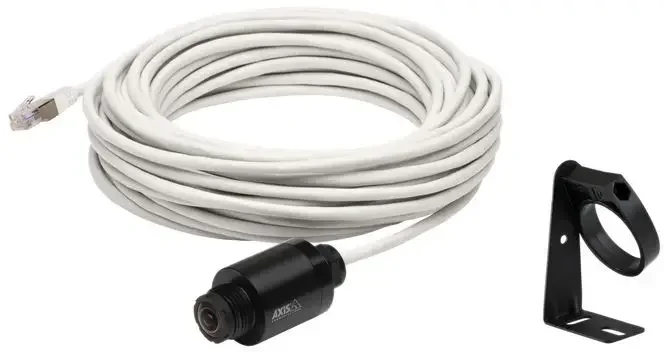

Axis F1035-E Sensor Unit 3M 1080p fisheye sensor unit
Discreet 1080p fisheye sensor unit with 194° field of view and 3 meter cable.
- Requires a compatible AXIS F34, F41 or F44 Main Unit to function
- 1080p resolution
- 194° horizontal field of view
- Fisheye lens
- 3 meter fixed cable
- WDR – Forensic Capture
- Up to 60 frames per second
- IP66 and IP67
AXIS F1035-E is a compact sensor unit for the AXIS F series modular camera system. The sensor unit contains the lens and image sensor, but has no network function or recording capability. It must therefore be connected to a compatible AXIS F34, F41 or F44 Main Unit, which provides power, image processing, and network connectivity.
| Technical specifications | |
| Model | AXIS F1035-E Sensor Unit 3M |
| Product type | Fisheye sensor unit for AXIS F Main Units |
| Compatibility | AXIS F34, AXIS F41 and AXIS F44 Main Unit |
| Image sensor | 1/2.8" effective progressive scan RGB CMOS |
| Maximum resolution | 1920 × 1200 / 1920 × 1080 |
| Maximum frame rate | Up to 50/60 fps (depending on Main Unit) |
| Lens | Fixed iris fisheye lens |
| Focal length | 1.3 mm |
| Aperture | F2.8 |
| Field of view | With AXIS F34/F41/F44 at 1080p: 194° horizontal, 113° vertical With AXIS F34/F44 at 720p: 112° horizontal, 66° vertical |
| Wide Dynamic Range | WDR – Forensic Capture (supported with AXIS F41 and AXIS F44 Main Units) |
| Minimum illumination | 0.3 lux (colour) |
| Shutter speed | 1/143000 s to 2 s (depending on Main Unit and resolution) |
| Cable length | 3 m pre-mounted cable |
| Housing material | Aluminium |
| Protection rating | IP66, IP67 |
| Operating temperature | -30 °C to +55 °C |
| Operating humidity | 10–100% RH (condensing) |
| Storage temperature | -40 °C to +65 °C |
| Dimensions | Ø30 × 62 mm |
| Weight | 96 g |
| Included accessories | Installation guide and AXIS F8201 Var-angle Mounting Bracket |
| Optional accessories | AXIS F8203 Fixed Mount Bracket, AXIS F8204 Mounting Band, AXIS F8212 Trim Ring and AXIS F8235 Fisheye Accessory |
| Warranty | 5-year manufacturer's warranty |
| Der tages forbehold for eventuelle fejl og ændringer i specifikationerne / Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
Axis sensor Unit
AXIS F1035-E is designed for installations where the camera itself needs to take up as little space as possible. The small sensor unit can be mounted visibly or hidden, while the main unit is placed in a protected location.
This makes the solution ideal for vehicles, stores, reception areas, elevators, entrances, and other places where a traditional camera is not the best option.
Requires an AXIS F Main Unit
The sensor unit cannot work on its own.
It must be connected to an AXIS F34, AXIS F41 or AXIS F44 Main Unit, which handles power supply, video processing, recording, network connection, and all camera functions.
194° fisheye gives you an almost complete overview
The built-in fisheye lens delivers a horizontal field of view of a full 194° at 1080p.
This makes it possible to monitor large areas with a single sensor unit and reduces the need for multiple cameras.
1080p image quality
The sensor delivers video at up to 1920 × 1200 resolution and Full HD 1080p.
That gives you a sharp overview of people, movement, and incidents in the area.
Up to 60 frames per second
When used together with an AXIS F41 Main Unit, the camera can record at up to 60 frames per second.
The high frame rate provides smoother video and is well suited for areas with lots of movement.
WDR provides better images in backlight
The sensor supports WDR - Forensic Capture when used with compatible main units.
This improves image quality in areas with both strong light and dark shadows, for example by windows, gates, and entrances.
Compact installation
The sensor measures just 30 × 62 mm and can be mounted very discreetly.
That makes it suitable for places where the camera should be as unobtrusive as possible.
3 meter cable
This model comes with a fixed 3 meter cable between the sensor and main unit.
This makes it possible to place the main unit hidden in a cabinet, ceiling, or behind panels.
Built for demanding environments
The sensor housing is made of aluminum and is protected to IP66 and IP67.
It can withstand rain, dust, vibrations, shocks, and outdoor installation all year round.
Suitable for vehicles
The sensor is approved for environments with vibration and movement.
It is often used in buses, trains, trams, and other mobile installations, where the compact size is a major advantage.
Mounting
A variable mounting bracket is included, making it easy to adjust the camera angle.
In addition, several brackets and mounting accessories are available for different installation types.
Compatibility
Important: AXIS F1035-E is only a sensor unit and does not work on its own.
It requires a compatible AXIS F34, AXIS F41 or AXIS F44 Main Unit, sold separately.
Technical key points
- Product type: Sensor unit
- Model: AXIS F1035-E 3M
- Requires: AXIS F34, AXIS F41 or AXIS F44 Main Unit
- Resolution: Up to 1920 × 1200 / 1080p
- Image sensor: 1/2.8" Progressive Scan CMOS
- Lens: 1.3 mm
- Aperture: F2.8
- Field of view: 194° horizontal / 113° vertical
- WDR – Forensic Capture
- Max. frame rate: 60 fps
- Minimum illumination: 0.3 lux
- Cable length: 3 meters
- Protection: IP66 and IP67
- Housing: Aluminum
- Operating temperature: −30 °C to 55 °C
- Dimensions: Ø30 × 62 mm
- Weight: 96 g
- Warranty: 5 years
