Uniview 16 megapixel 180 graders panorama kamera
Model:
IPC8544EA-KM-I1
26.789,00
Incl. VAT
(
21.431,20
Excl. VAT
)
Et genialt 180 graders kamera til det helt store overblik
- 4 linser i 2K pr. stk. giver enorm god billedkvalitet
- Samler de 4 kameraer til et samlet billede
- PoE
- 50 meter smart-IR
- IP67 - kan sidde inde og ude
- Husk at købe beslag (se tilbehør herunder)
Med blot et enkelt netværkskabel kan du få det vildeste overblik med dette kamera
| Technical specifications | |
| Model | IPC8544EA-KM-I1 |
| Product type | 16 MP LightHunter 180° OmniView Network Camera |
| Panoramic view | 180° |
| Main stream maximum resolution | 4800 × 2688 at up to 30 fps |
| Main stream aspect ratio | 16:9 |
| Camera | |
| Image sensor | 1/1.8" progressive scan CMOS |
| Sensor resolution | 4.0 megapixel per sensor |
| Minimum illumination | Color: 0.001 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with automatic switching (ICR) |
| Shutter | Auto / Manual, 1 s to 1/100000 s |
| WDR | Digital WDR |
| Signal-to-noise ratio | >56 dB |
| Built-in fan | Supported for heat dissipation and removal of mist from the window |
| Lens | |
| Lens configuration | 4 × 2.8 mm lenses |
| Aperture | F1.6 |
| Horizontal field of view | 180° |
| Vertical field of view | 90° |
| Diagonal field of view | 221.4° |
| DORI distance | |
| Lens | 2.8 mm |
| Detect | 63.0 m (206.7 ft) |
| Observe | 25.2 m (82.7 ft) |
| Recognize | 12.6 m (41.3 ft) |
| Identify | 6.3 m (20.7 ft) |
| Illuminator | |
| IR range | Up to 50 m (164 ft) |
| IR wavelength | 850 nm |
| IR control | Auto / Manual |
| Smart IR | Supported |
| Video | |
| Video compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Main stream | 4800 × 2688, up to 30 fps |
| Sub stream | 2688 × 1520, up to 30 fps |
| Third stream | 1280 × 720, up to 30 fps |
| Video streams | Triple streams |
| Video bitrate | 128 Kbps–16 Mbps |
| ROI | Up to 8 areas |
| OSD | Up to 8 OSDs |
| Privacy mask | Up to 8 areas, supporting 8 black masks / 8 mosaic masks |
| Image | |
| White balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital noise reduction | 2D / 3D DNR |
| Flip | Normal / Flip Vertical / Flip Horizontal / 180° |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Events & security functions | |
| Watermark | Supported |
| IP address filtering | Supported |
| Tampering alarm | Supported |
| Alarm input | Supported |
| Alarm output | Supported |
| Access policy | Supported |
| ARP protection | Supported |
| RTSP authentication | Supported |
| User authentication | Supported |
| Audio | |
| Audio compression | G.711U / G.711A |
| Two-way audio | Supported |
| Audio suppression | Supported |
| Sampling rate | 8 kHz |
| Audio input | 1 input; impedance 35 kΩ; amplitude 2 V [p-p] |
| Audio output | 1 output; impedance 600 Ω; amplitude 2 V [p-p] |
| Storage | |
| Edge storage | MicroSD card, up to 256 GB |
| Network storage | ANR / NAS (NFS) |
| Network | |
| Ethernet interface | 10M/100M/1000M Base-TX Ethernet |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1X, SNMP, QoS, RTMP |
| ONVIF | Profile S / Profile G / Profile T |
| Other integration | API |
| Client software | EZStation / EZLive / EZView |
| Web browser | |
| Plug-in required live view | IE 9+ / Chrome 41 and below / Firefox 52 and below |
| Interfaces | |
| Audio I/O | 1 input / 1 output |
| Alarm I/O | 2 inputs / 1 output |
| Network | 10M/100M/1000M Base-TX Ethernet |
| Power supply | |
| AC power supply | 24 V AC ±25% |
| DC power supply | 24 V DC ±25% |
| PoE | IEEE 802.3at |
| Maximum power consumption | 34 W |
| Physical specifications | |
| Dimensions | 258.8 × 211.0 × 115.0 mm (10.2" × 8.3" × 4.5") |
| Weight | 2.271 kg (5.01 lb) |
| Protection class | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Surge protection | 6 kV |
| Environment | |
| Operating temperature | –40 °C to +70 °C (–40 °F to 158 °F) |
| Operating humidity | ≤95% RH, non-condensing |
| Storage temperature | –40 °C to +70 °C (–40 °F to 158 °F) |
| Storage humidity | ≤95% RH, non-condensing |
| Certification | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019+A1:2021, EN 55035:2017+A11:2020; FCC: FCC CFR 47 Part 15 B, ANSI C63.4-2014 |
| Safety | CE-LVD: EN 62368-1:2014+A11:2017; CB: IEC 62368-1:2014; UL: UL 62368-1, 2nd Ed. |
| Environmental compliance | CE-RoHS: 2011/65/EU, (EU) 2015/863; WEEE: 2012/19/EU; REACH: Regulation (EC) No 1907/2006 |
| Compatible accessories | |

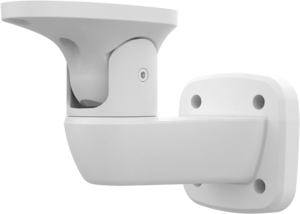

| TR-WE45-D-IN | Wall Mount |
| TR-JB07-D-IN | Junction Box |
| TR-CM06-C-IN | Pendant Mount |
| TR-UV06-C-IN | 2D Bracket Mount |
| TR-UP06-IN | Pole Mount |
| TR-UP06-B-IN | Pole Mount |
| Installation combinations | |
| Junction mount | TR-WE45-D-IN + TR-JB07-D-IN |
| Pole mount | TR-WE45-D-IN + TR-UP06-B-IN |
| Pendant mount | TR-CM06-C-IN |
| Horizontal pole mount | TR-UV06-C-IN + TR-UP06-IN |
| Der tages forbehold for eventuelle fejl og ændringer i specifikationerne / Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
Den professionelle måde at levere strøm, til et PoE-kamera, er gennem netværkskablet.
På den måde behøver man kun at trække et enkelt kabel til hvert kamera - og skal ikke døje med 230V og små strømforsyninger.
Strømmen til kameraet leveres gennem netværkskablet fra enten...
- en optager med indbygget PoE, også kaldet NVR. Et typisk valg for installationer op til og med 8 kameraer.
- en PoE-switch. Populært fortalt en fordelerdåse til netværkskabler. Det typiske valg på store installationer eller hvis man ønsker fleksibel kabelføring.
- en PoE-injector. Kan kun levere strøm til et kamera.
Af samme grund følger der ikke strømforsyning med PoE-kameraer. Du kan bestille en klassisk strømforsyning her, hvis du ikke ønsker at benytte PoE.
Power over Ethernet
Do like the professionals. POE means that only one cable is needed for the camera. The camera gets power through the network cable, typically from a recorder with built-in PoE, or from a POE switch.
ONVIF full member
Univiews cameras and recorders support the ONVIF protocol. This means that they can be mixed with equipment from other brands as long as they also support ONVIF.
Alarm in/out
Start shooting when the alarm goes or a door is opened - and use the image analyzes to control your Philips Hue or open a port.
Alarm in and out allows you to connect cameras and recorders to other equipment.
Alarm in and out allows you to connect cameras and recorders to other equipment.
ANR
Avoid losing recordings with AutomaticNetwork R eplenishment.
If there are network problems, the camera stores the recordings on an SD- card - and then sends them to the recorder when the connection is stable again.
If there are network problems, the camera stores the recordings on an SD- card - and then sends them to the recorder when the connection is stable again.
