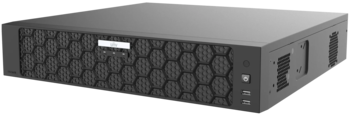

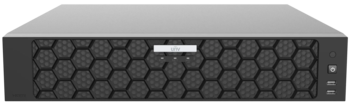

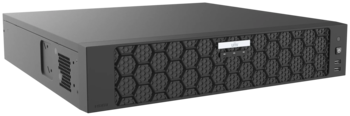

Ekstraordinær 64 kanal NVR med IQ
Model:
NVR508-64E-IQ
12.211,00
Incl. VAT
(
9.768,80
Excl. VAT
)
NVR med intelligent søgning og ekstra stor analyskapacitet
- RAID
- Håndterer op til 64 overvågningskameraer
- Viser forskellige kamerabilleder på 2x2 skærme (2 VGA, 2HDMI)
- Intelligent ansigtsgenkendelse og bevægelsesdetektion
- Sikker lagring med backup ved netværksudfald
Har kapacitet til samtidigt at udføre menneske- og køretøjsdetektering for ikke mindre end 16 kameraer, som ikke selv har funktionaliteten.
| Datablad | Brugermanual |
| Decoding | Description |
| DecodingFormat | Ultra 265,H.265,H.264 |
| DecodingCapability | NVR508‑32E‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30 Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 32 x 720P@30 NVR508‑64E‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30 Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30 |
| AudioCompression | G.711A,G.711U |
| Network | Description |
| IncomingBandwidth | Smart Off：384Mbps Smart On：200Mbps |
| OutgoingBandwidth | Smart Off：384Mbps Smart On：200Mbps |
| RemoteUsers | 128 |
| Protocols | TCP/IP;P2P;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6 |
| Browser(Plugin) | Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above) |
| Video/AudioInput | Description |
| IPVideoInput | NVR508‑32E‑IQ:32‑ch NVR508‑64E‑IQ:64‑ch |
| RCAAudioInput | 1‑ch |
| Video/AudioOutput | Description |
| HDMIOutput | HDMI:4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGAOutput | VGA:1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCAAudioOutput | 2‑ch |
| LiveviewDisplay | NVR508‑32E‑IQ:1/4/6/8/9/16/25/32 NVR508‑64E‑IQ:1/4/6/8/9/16/25/36/64 |
| CorridorModeScreen | 3/4/5/7/9/10/12/16/32 |
| Two-wayAudio | Description |
| Two-wayAudio | 1‑ch,RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/EventSnapshot | 16‑ch snapshot,up to 4K resolution |
| Recording | Description |
| RecordingResolution | 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Smart | Description |
| VCADetectionbyIPC | Face Detection;Vehicle Detection;SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection,Smoking Detection,Temperature Measurement,Smoke and Fire Detection);People Counting(People Flow Counting,Crowd Density Monitoring);Video Metadata;Traffic Monitoring |
| SmartbyNVR | Face detection;Smart Intrusion Prevention (SIP);Ultra Motion Detection(UMD) |
| VCASearch | Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map |
| SmartbyIPC | All channels (up to 16 images/s in total)Face Detection,Vehicle Detection,Temperature Detection,SIP,UMD,Video Metadata,Traffic Monitoring |
| FacePictureLibrary | Up to 128 face picture libraries,with up to 40,000 face pictures in total |
| VehiclePictureLibrary | Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total |
| SIPbyNVR | 8‑ch |
| UMDbyNVR | 16‑ch |
| CapacityofSnapshotRecords | 3 millions records for face snapshot;2 millions records for vehicle snapshot;2 millions records for SIP;2 millions records for video Metadata |
| Alarm | Description |
| GeneralAlarm | Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
| AlertAlarm | IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;Array Damaged;Array Degraded |
| GUILanguage | Description |
| GUILanguage | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| HardDisk | Description |
| SATA | 8 SATA Interfaces |
| Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| DiskGroup | Support |
| RedundantStorage | Support |
| DiskArrayType | RAID 0,1,5,6,10 |
| ExternalInterface | Description |
| NetworkInterface | 2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB | Front panel: 2 x USB2.0;Rear panel: 2 x USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| AlarmIn | 16‑ch |
| AlarmOut | 10‑ch |
| eSATA | 1 |
| PowerOutput | 12V |
| PowerSupply | AC 100~240V |
| WorkingEnvironment | Description |
| WorkingTemperature | ‑10°C ~ + 50°C (+14°F ~ +122°F) |
| WorkingHumidity | ≤ 90% RH (non‑condensing) |
| PowerConsumption(withoutHDD) | ≤ 20W |
| Dimensions | Description |
| Weight(withoutHDD) | ≤ 5.5Kg (12.1lb) |
| Height | 2U |
| Dimensions | 442mm × 432mm × 86mm (17.4"×17.0"×3.4") |
| Certification | Description |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part15 Subpart B |
There is no reviews yet. Be the first to write us your opinion
ONVIF full member
Univiews cameras and recorders support the ONVIF protocol. This means that they can be mixed with equipment from other brands as long as they also support ONVIF.
ANR
Avoid losing recordings with AutomaticNetwork R eplenishment.
If there are network problems, the camera stores the recordings on an SD- card - and then sends them to the recorder when the connection is stable again.
If there are network problems, the camera stores the recordings on an SD- card - and then sends them to the recorder when the connection is stable again.
HDMI / VGA
Connect the recorder to your TV or computer screen with HDMI/VGA cable.
You can then configure cameras, watch live views and search in recordings - directly on your NVR. It even comes with a mouse.
You can then configure cameras, watch live views and search in recordings - directly on your NVR. It even comes with a mouse.
Hvor stor en harddisk skal jeg vælge?
Optagere leveres som udgangspunkt uden harddisk, for behovet er ikke det samme for alle.
Når du optager din videoovervågning, så er der flere ting der påvirker, hvor meget optagelserne fylder.
Helt oplagt så betyder antallet af kameraer, og deres opløsning meget - men din konfiguration, og hvor meget der sker foran kameraet, har også en betydning.
Udgangspunktet er, at man hellere skal optage en time for meget end et minut for lidt. Omvendt gider normalt kun nordmænd lave videoer, der viser at græsset gror.
Brug beregneren til at få en fornemmelse af dit pladsbehov. Synes du det er spændende, så læs lidt mere om pladsoptimering nederst på siden. Og har du vigtigere ting for - så bare ring til os...
1) Vælg kameraets opløsning...
2) Vælg antal kameraer...
3) Vælg størrelsen på harddisken...
4) Vælg antal timer med optagelse per dag... 6
1 time
24 timer
Resultat:
Lagringspladsen svarer til cirka 1095 timers videooptagelse.
Med 6 timers optagelse pr dag, kan du typisk gå 182 dage tilbage i tid.1)
1) Værdierne er tilnærmede, og baseret på typiske indstillinger med 25 billeder i sekundet og h265 komprimering.
