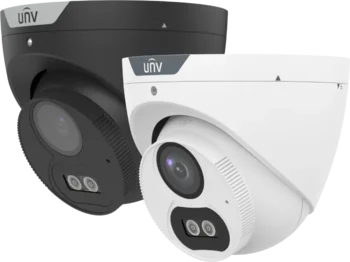

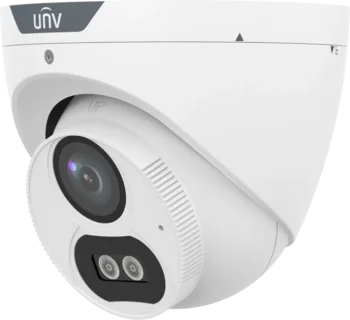

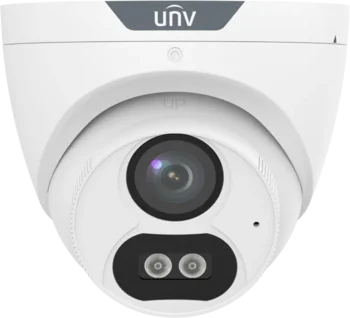

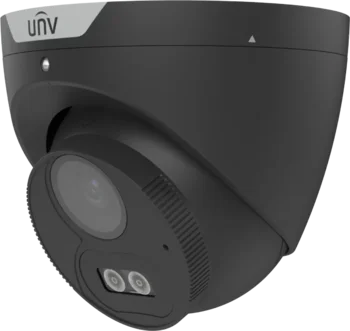

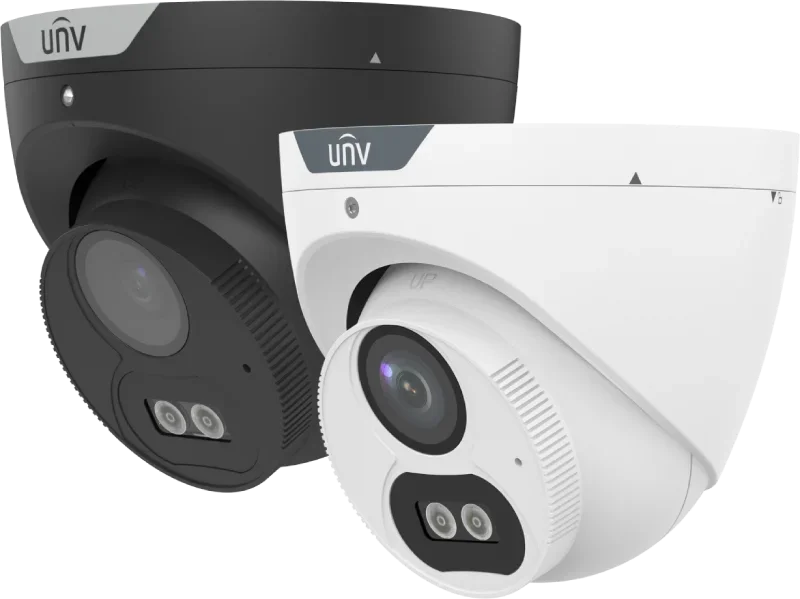

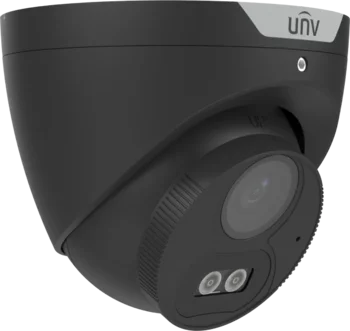

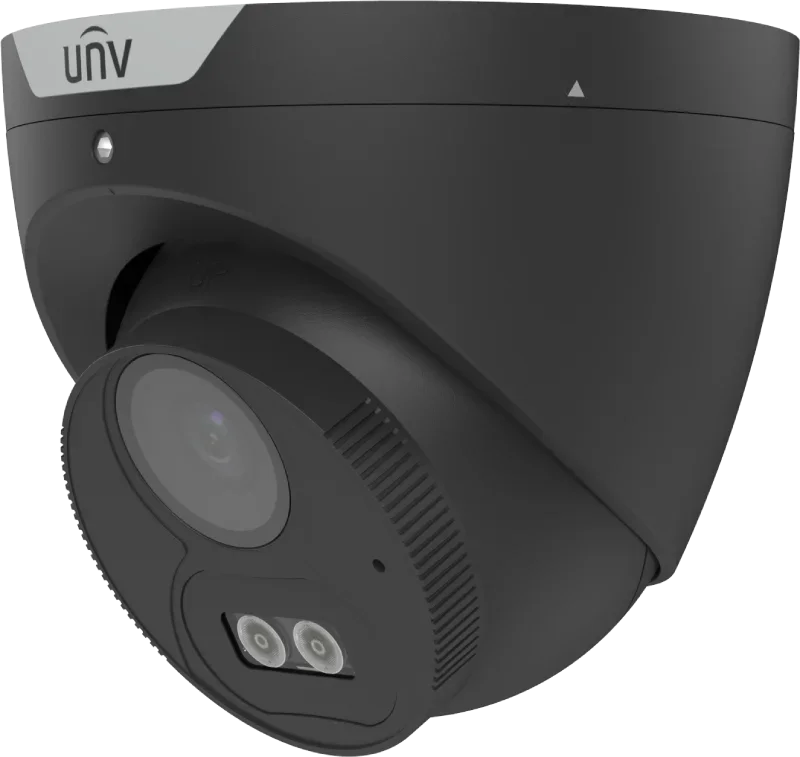

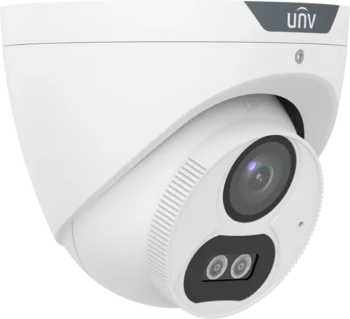

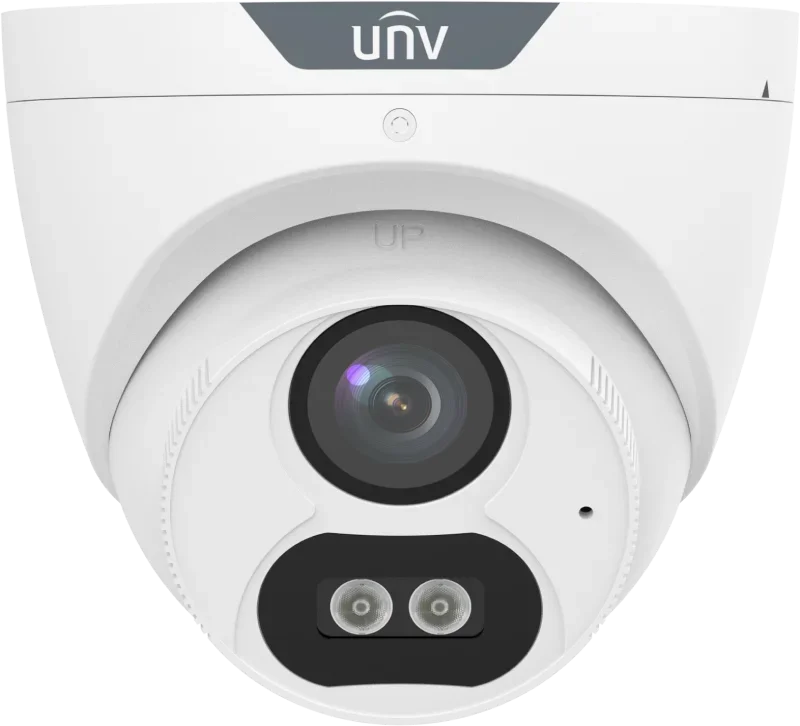

Uniview 5MP ColorHunter analog turret mic hvidt lys
Model:
UAC-T125-AF28(40)M-W
639,00
Incl. VAT
(
511,20
Excl. VAT
)
5MP analog turret kamera med fuld farve døgnet rundt og indbygget mikrofon
- 5MP opløsning
- Fuld farve dag og nat
- Hvidt lys op til 40 meter
- Indbygget mikrofon via koaksialkabel
- Understøtter TVI, AHD, CVI og CVBS
- Menu på flere sprog
- IP67 klassificeret
- 3-aksers justering
UAC-T125-AF28(40)M-W er et 5MP analogt turret kamera med farvebillede hele døgnet og indbygget mikrofon. Kameraet er udviklet til HD over koaksialkabel og passer perfekt til både nye analoge installationer og opgraderinger af eksisterende systemer.
| Model | UAC-T125-AF28M-W | UAC-T125-AF40M-W |
| Sensor | ||
| Pixel | 5MP | |
| Size | 1/2.7" | |
| Minimum illumination | 0.005lux (F1.4, AGC ON) 0 lux (white light on) |
|
| Lens | ||
| Lens | 2.8mm | 4.0mm |
| Lens mount | M12 | |
| Angle of view | H: 111.5° V: 58.9° D: 134.8° | H: 89.6° V: 48.3° D: 106.4° |
| Illuminator | ||
| Illuminator | Two white-light illuminators | |
| Illumination distance | 40m | |
| Lifetime | ≥60,000 hours | |
| Video | ||
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
|
| Frame rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC |
|
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
|
| Image | ||
| Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
| Day/Night | 24/7 color images | |
| Digital noise reduction | 2D | |
| White balance | Two modes: Auto (default), Manual | |
| WDR | DWDR | |
| Flip | Supports 180° horizontal flip, 180° vertical flip | |
| Audio | ||
| Microphone | Built-in Mic | |
| Camera audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps |
|
| Interface | ||
| Power | 5.5mm power interface | |
| Video output | BNC, supports TVI/AHD/CVI/CVBS | |
| Operating environment | ||
| Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Humidity | ≤95% (RH, non-condensing) | |
| Surge protection | 4kV | |
| Ingress protection | IP67 | |
| General | ||
| Power | DC12V (±25%), with reverse polarity protection. Max 3.28W | |
| Mount | Surface mount (default), optional junction box and wall mount bracket | |
| Dimensions | Φ111mm*96mm (diameter*height) | |
| Material | Metal and plastic | |
| Weight | 356g (0.79lb) | |
| Certification | CB, CE, FCC, UL | |
