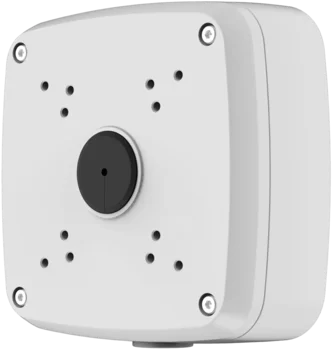

Dahua PFA121 waterproof junction box
Dahua aluminum junction box for neat and secure camera mounting
- Waterproof junction box for mounting surveillance cameras.
- Provides space for cables and connections behind the camera.
- Cable outlets in both bottom and side make installation more flexible.
- Made from aluminum.
- Suitable for both indoor and outdoor use.
This junction box is used when you want a neater and more practical camera installation. It gives you space to gather cables and connectors inside the box instead of leaving them exposed outside.
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
134.0 mm × 133.9 mm × 56.0 mm (5.28" × 5.27" × 2.20") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.52 kg (1.15 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.62 kg (1.37 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Load Bearing |
3.0 kg (6.61 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Junction mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screw Thread Type |
G3/4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Applicable Model |
Please see "Camera Accessories Selection" |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
146.0 mm × 65.0 mm × 147.0 mm (5.75" × 2.56" × 5.79") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP66 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
<90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-corrosion Level |
Basic Protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
There is no reviews yet. Be the first to write us your opinion
Waterproof junction box for Dahua cameras
The PFA121 is a waterproof junction box used with selected Dahua cameras. It makes installation neater by giving you an enclosed space for cables, connectors and splices directly behind the camera.
This is especially useful if there's no room for cables inside the wall, or if you want a cleaner finish to the installation. The junction box can be used both indoors and outdoors and is designed to fit well into a surveillance setup.
Space for cables and connections
One of the main benefits of a junction box like this is that you get a practical place to gather the cables. Instead of leaving connectors and splices outside the camera, you can hide them inside the box.
This gives a neater installation and also makes it easier to protect the connections from moisture, dirt and external influence.

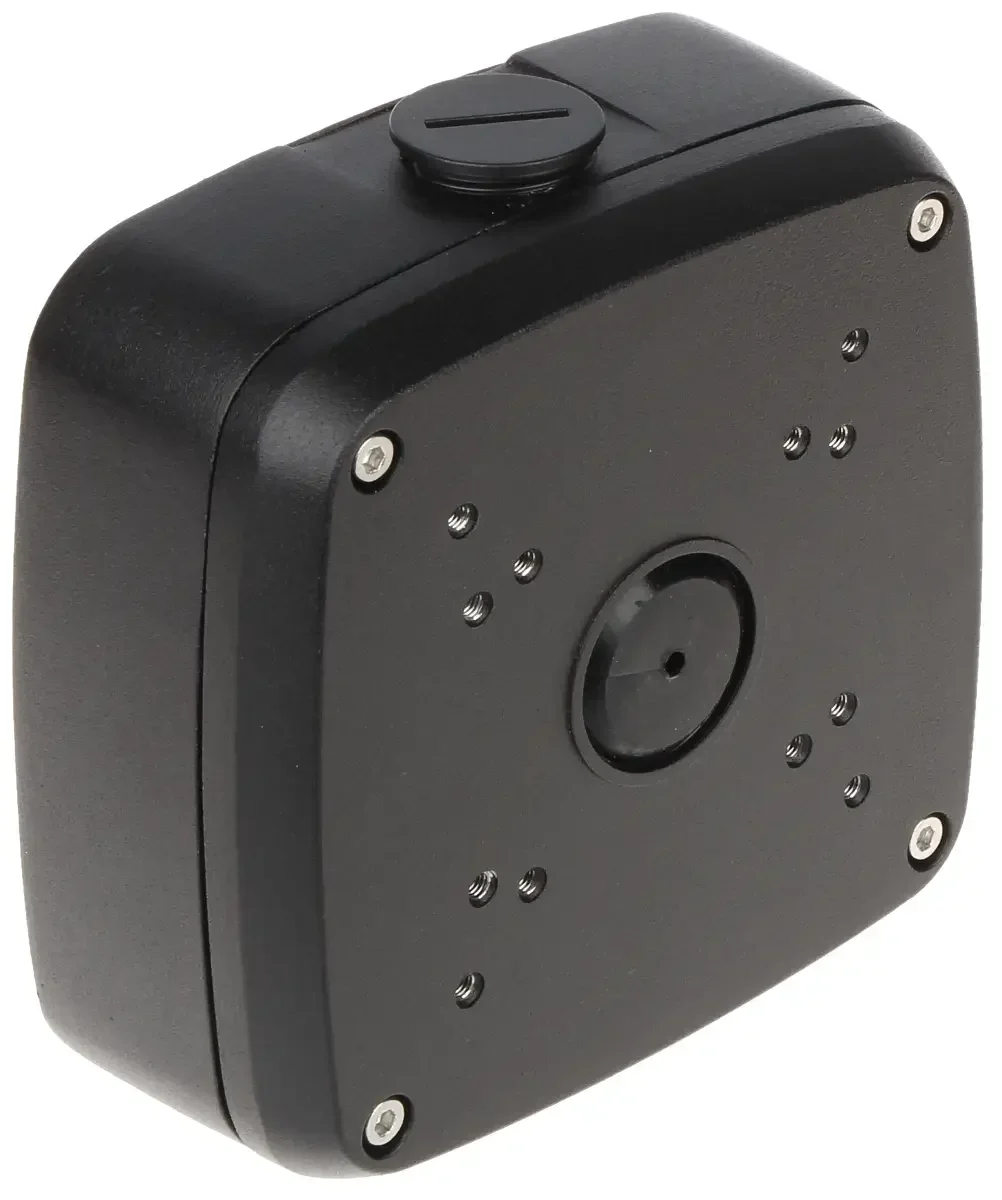

Cable outlets at bottom and side
The PFA121 has cable outlets both at the bottom and on the side. That makes it more flexible in practice because you can choose the solution that best fits the location where the camera will be mounted.
This can be useful if the cable comes directly through the wall, or if it should be run along the surface and enter from the side.
Aluminum
The junction box is made from aluminum, making it suitable for use with surveillance cameras both indoors and outdoors. The material provides a solid and stable mount and suits setups where the junction box will be permanently installed.
It also means you get a solution that feels more finished than a standard plastic box.
IP66 protection
The junction box is IP66-rated. That means it's protected against dust and heavy rain when installed correctly. Therefore it's suitable for outdoor installations where connections and cables need the best possible protection.
That also makes it ideal for locations where the camera is exposed on a facade, wall or pole.
What does the mount fit?
The junction box fits selected Dahua cameras. You can always check the camera's 'Accessories' tab or open the camera's datasheet to see which mounts and junction boxes fit that specific model.
Installation
The junction box is used as a base between the camera and the wall or ceiling. It can also be a good solution if you want more space for splices, or if the cables can't be hidden behind the surface.
Under the camera's 'Accessories' tab you can always see which brackets and mounting parts pair with this junction box.
Technical key points
- Product type: Waterproof junction box
- Model: Dahua PFA121
- Material: Aluminum
- Color: White
- Protection: IP66
- Max. load: 3 kg
- Thread type: G3/4
- Dimensions: 134.0 × 133.9 × 56.0 mm
- Weight: approx. 0.52 kg
- Temperature range: −40 °C to +60 °C
- Mounting type: Junction mount
