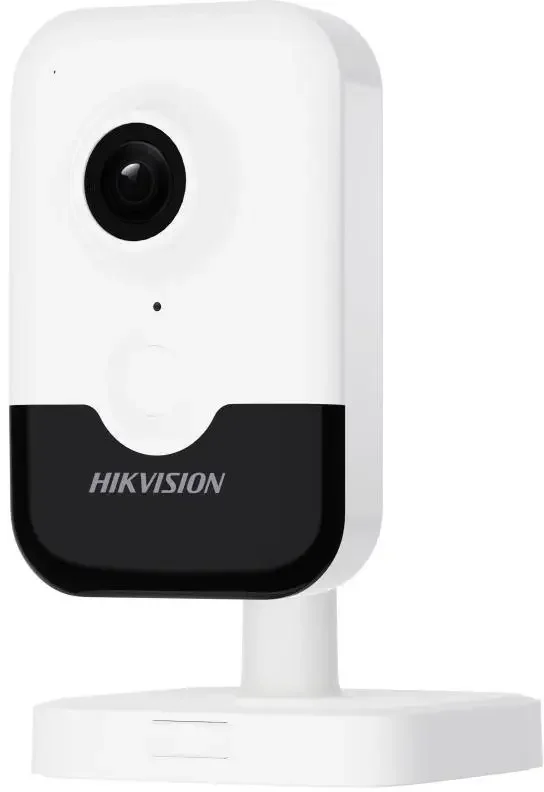

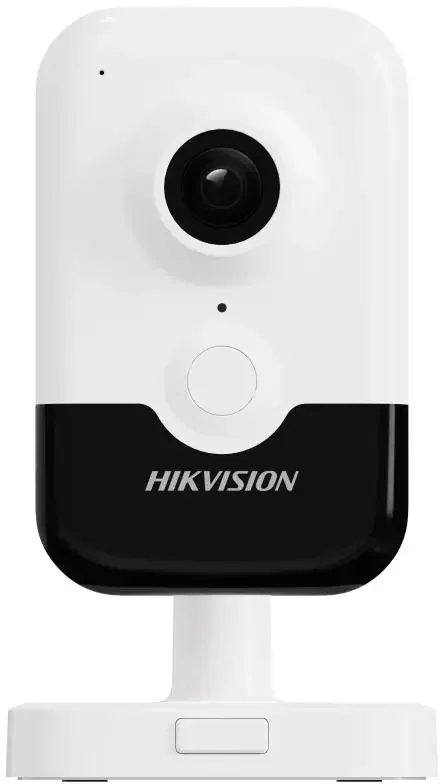

Hikvision DS-2CD2443G2-IW WIFI Cube with microphone and speaker
Small indoor WIFI camera with speaker and microphone
- 4 MegaPixel
- Built-in speaker and microphone
- Wifi and PoE

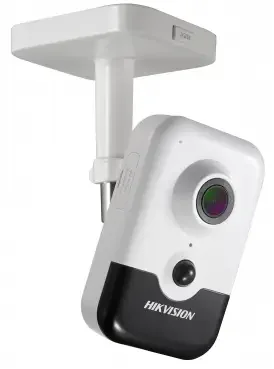

The camera can easily be moved around, since it can stand on a base.
Note: Works ONLY with an NVR
Configuration interface exclusively through iVMS-4200 or NVR
| Technical specifications | |
| Model | DS-2CD2443G2-IW |
| Camera type | 4 MP fixed cube network camera with Wi-Fi |
| Image sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 2560 × 1440 |
| Minimum illumination | Color: 0.005 lux @ F1.6, AGC on; B/W: 0 lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Day / night | IR cut filter |
| Wide Dynamic Range | Digital WDR |
| Angle adjustment | Pan: 0–360°; tilt: 0–90°; rotation: 0–360° |
| Lens and illumination | |
| Lens type | Fixed focal lens |
| Focal length | 2.8 mm |
| Lens mount | M12 |
| Aperture | F1.6 |
| Horizontal field of view | 92° |
| Vertical field of view | 50° |
| Diagonal field of view | 110° |
| Supplement light type | IR |
| IR range | Up to 10 m |
| IR wavelength | 850 nm |
| Smart Supplement Light | Yes |
| DORI | |
| Detect | 56.0 m |
| Observe | 22.2 m |
| Recognize | 11.2 m |
| Identify | 5.6 m |
| Video | |
| Main stream, 50 Hz | 25 fps at 2560 × 1440, 1920 × 1080 or 1280 × 720 |
| Main stream, 60 Hz | 30 fps at 2560 × 1440, 1920 × 1080 or 1280 × 720 |
| Sub stream, 50 Hz | 25 fps at 1280 × 720, 768 × 432 or 512 × 288 |
| Sub stream, 60 Hz | 30 fps at 1280 × 720, 768 × 432 or 512 × 288 |
| Video compression | H.265 / H.264 |
| Video bit rate | Up to 2 Mbps |
| H.264 profiles | Baseline Profile, Main Profile and High Profile |
| H.265 profile | Main Profile |
| Bit rate control | CBR / VBR |
| Image processing | |
| Day / night modes | Day, night, auto or schedule |
| Image settings | Saturation, brightness, contrast, sharpness, gain and white balance |
| Image parameter switch | Yes |
| Privacy masks | 4 programmable polygon privacy masks |
| Intelligent functions | |
| Target classification | Human and vehicle classification based on deep learning |
| Motion detection | Supports alarm triggering by specified human and vehicle target types |
| Exception detection | Yes |
| Linkage methods | Upload to memory card, notify surveillance center, trigger capture and audible warning |
| Audio | |
| Built-in microphone | Yes, 1 built-in microphone |
| Built-in speaker | Yes, 1 built-in speaker |
| Two-way audio | Yes |
| Environmental noise filtering | Yes |
| Audio sampling rate | 8 kHz / 16 kHz |
| Audio compression | G.711 / AAC-LC |
| Audio bit rate | 64 kbps for G.711 μ-law / A-law; 16–64 kbps for AAC-LC |
| Wi-Fi | |
| Wi-Fi standards | IEEE 802.11b / 802.11g / 802.11n |
| Frequency range | 2.412–2.472 GHz |
| Channel bandwidth | 20 MHz |
| Wi-Fi encryption | WPA-PSK / WPA2-PSK |
| Modulation | 802.11b: CCK, QPSK, BPSK; 802.11g: OFDM; 802.11n: OFDM |
| Wireless range | Up to 50 m, depending on the installation environment |
| Wireless transfer rate | 802.11b: up to 54 Mbps; 802.11g: up to 54 Mbps; 802.11n: up to 150 Mbps |
| Network and storage | |
| Ethernet | 1 × RJ45 10/100 Mbps self-adaptive Ethernet port |
| API | ONVIF and SDK |
| Network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour and SSL/TLS |
| Simultaneous live view | Up to 4 channels |
| User level | Administrator |
| Security | Password protection, HTTPS encryption, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2 and WSSE for ONVIF |
| On-board storage | MicroSD / microSDHC / microSDXC card, up to 512 GB |
| Client software | iVMS-4200, Hik-Connect and Hik-Partner-Pro |
| Power and environmental specifications | |
| Power supply | 12 VDC |
| Maximum power consumption | 4.56 W at 12 VDC |
| Power connector | Ø 2.0 mm coaxial power plug |
| PoE | IEEE 802.3af, Class 3 |
| Operating temperature | -10 °C to +45 °C |
| Storage temperature | -10 °C to +45 °C |
| Operating humidity | ≤95%, non-condensing |
| Physical specifications | |
| Material | Plastic |
| Dimensions | 102.9 × 65.2 × 32.9 mm |
| Weight | Approx. 120 g |
| Package dimensions | 150 × 125 × 99 mm |
| Weight with package | Approx. 430 g |
| Compliance | |
| EMC | CE-EMC |
| Radio compliance | CE-RED |
| Safety | CE-LVD |
| Environmental compliance | CE-RoHS and WEEE |
| Specifications are based on the manufacturer's supplied product data for the DS-2CD2443G2-IW 2.8 mm version and may vary depending on regional version, firmware and configuration. Wireless performance and range depend on the actual installation environment. Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
Den professionelle måde at levere strøm, til et PoE-kamera, er gennem netværkskablet.
På den måde behøver man kun at trække et enkelt kabel til hvert kamera - og skal ikke døje med 230V og små strømforsyninger.
Strømmen til kameraet leveres gennem netværkskablet fra enten...
- en optager med indbygget PoE, også kaldet NVR. Et typisk valg for installationer op til og med 8 kameraer.
- en PoE-switch. Populært fortalt en fordelerdåse til netværkskabler. Det typiske valg på store installationer eller hvis man ønsker fleksibel kabelføring.
- en PoE-injector. Kan kun levere strøm til et kamera.
Af samme grund følger der ikke strømforsyning med PoE-kameraer. Du kan bestille en klassisk strømforsyning her, hvis du ikke ønsker at benytte PoE.
Small and nice Cube camera with WIFI
Super easy to move around the house since it has WIFI and can stand on a base.
Built-in microphone and speaker – talk directly through the app
Through the app on your phone, you can both hear what’s happening and talk through the camera. You can have a conversation with the kids at home, or talk to the dog.
Can detect people
The camera has built-in AcuSense technology, which means it can detect if a person appears and send a notification directly to your phone, where you can play the clip.
Wi-Fi and PoE – flexible installation
You can connect the camera via Wi-Fi or wired network with PoE (power over Ethernet).
Built-in microSD slot
The camera can handle a Micro SD card of up to 512GB. The camera can also be connected to an NVR.
IR light for night recordings
It has built-in IR light, which means it can see up to 10 meters at night, which is more than enough for most indoor rooms. Indoors, there is also reflection from the white walls, which improves the image at night.
Technical specifications
- Resolution: 4 MP (2560 × 1440)
- Lens: 2.8 mm (92° H), also available in 4 mm (75° H)
- Night vision: IR up to 10 meters
- Detection: Motion, people and vehicle filtering
- Audio: Built-in microphone and speaker (two-way communication)
- Network: Wi-Fi (2.4 GHz) + RJ45 with PoE
- Storage: microSD up to 512 GB
- Power: 12VDC or PoE (802.3af)
- Material: Plastic (indoor use)
- Dimensions: 103 × 65 × 33 mm
- App control: Hik-Connect (iOS and Android)
