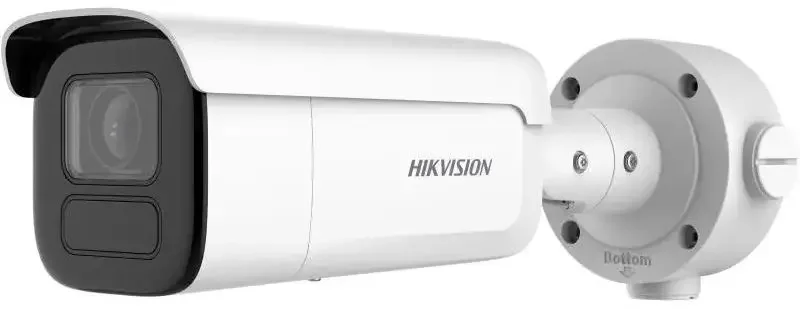

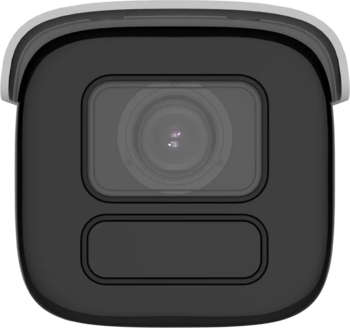

Hikvision DS-2CD3B86G2T-IZHSY 8MP varifocal Bullet with analytics and NEMA 4X
- A great choice for outdoor use at commercial sites and warehouses.
- What sets this camera apart is its motorized zoom.
- With its 8 Megapixel sensor the camera delivers a strong daytime image, and with up to 60 m IR it also sees far at night.
- AcuSense lets the camera classify people & vehicles.
Accessible from smartphone, PC and tablet via the Hik-Connect app.
Supports Danish, Swedish, Norwegian, German and English languages.
- Camera
- Image Sensor 1/1.8" Progressive Scan CMOS
- Max. Resolution 3840 × 2160
- Min. Illumination Color: 0.004 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
- Shutter Time 1/3 s to 1/100,000 s
- Lens
- Focal Length & FOV 2.8 to 12 mm: horizontal FOV 112° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47° 8 to 32 mm: horizontal FOV 41.8° to 15°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°
- Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
- Aperture 2.8 to 12 mm: F1.4; 8 to 32 mm: F1.7
- Lens Mount Integrated
- Focus Auto,Semi-auto,Manual
- Depth of Field 2.8 to 12 mm: 1.5 m to ∞ 8 to 32 mm: 9.3 m to ∞
- Iris Type P-iris
- DORI
- DORI 2.8 to 12 mm: D: 87 to 216 m, O: 34.5 to 85 m, R: 17.4 to 43.2 m, I: 8.7 to 21.6 m 8 to 32 mm: D: 218 to 580 m, O: 86.5 to 230.2 m, R: 43.6 to116 m, I: 21.8 to 58 m
- Illuminator
- IR Wavelength 850 nm
- Supplement Light Range 2.8 to 12 mm: up to 60 m; 8 to 32 mm: up to 80 m
- Smart Supplement Light Yes
- Supplement Light Type IR
- HEOP
- Open Resources Memory: 40 MB, Smart RAM: 350 MB, eMMC: 2 GB
- Computing Power 1.5 TOPS
- Open Capability HEOP 2.0 OpendevSDK
- Deep Learning Structure Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
- Programming Language C,C++
- Video
- Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
- Target Cropping Yes
- Audio
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Type Mono sound
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
- Simultaneous Live View Up to 6 channels
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200,Hik-Connect,Hik-Central
- Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch Yes
- Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR) 120 dB
- Image Enhancement BLC,HLC,3D DNR,Defog
- SNR ≥ 52 dB
- Privacy Mask 4 programmable polygon privacy masks
- Interface
- Alarm 3 inputs, 3 outputs (max. 24 VDC/24 VAC, 1 A)
- Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset Key Yes
- RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Power Output 12 VDC, max. 100 mA
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart Event scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
- Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
- Deep Learning Function
- Face Capture Yes
- People Counting Yes
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle)
- General
- Power 12 VDC ± 25%, 1.20 A, max. 14 W,two-core terminal block, 24 VAC ± 20%, 1.03 A, max. 14 W, PoE: IEEE 802.3at, Class 4, max. 17 W
- Material Aluminum alloy body
- Dimension Ø105 mm × 340.7 mm (Ø4.1" × 13.4")
- Package Dimension 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
- Weight Approx. 1455 g (3.1 lb.)
- With Package Weight Approx. 2256 g (5.0 lb.)
- Storage Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Heater Yes
- Approval
- EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
- Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013;IK10: IEC 62262:2002
- Anti-Corrosion Protection -Y: NEMA 4X (NEMA 250-2018)
There is no reviews yet. Be the first to write us your opinion
Den professionelle måde at levere strøm, til et PoE-kamera, er gennem netværkskablet.
På den måde behøver man kun at trække et enkelt kabel til hvert kamera - og skal ikke døje med 230V og små strømforsyninger.
Strømmen til kameraet leveres gennem netværkskablet fra enten...
- en optager med indbygget PoE, også kaldet NVR. Et typisk valg for installationer op til og med 8 kameraer.
- en PoE-switch. Populært fortalt en fordelerdåse til netværkskabler. Det typiske valg på store installationer eller hvis man ønsker fleksibel kabelføring.
- en PoE-injector. Kan kun levere strøm til et kamera.
Af samme grund følger der ikke strømforsyning med PoE-kameraer. Du kan bestille en klassisk strømforsyning her, hvis du ikke ønsker at benytte PoE.
8MP varifocal camera with advanced analytics and powerful image sensor
Hikvision DS-2CD3B86G2T-IZHSY is a network camera with 8 MP resolution and DarkFighter technology, delivering detailed footage even in low-light conditions. The camera is suitable for both private and commercial installations where high image quality matters.

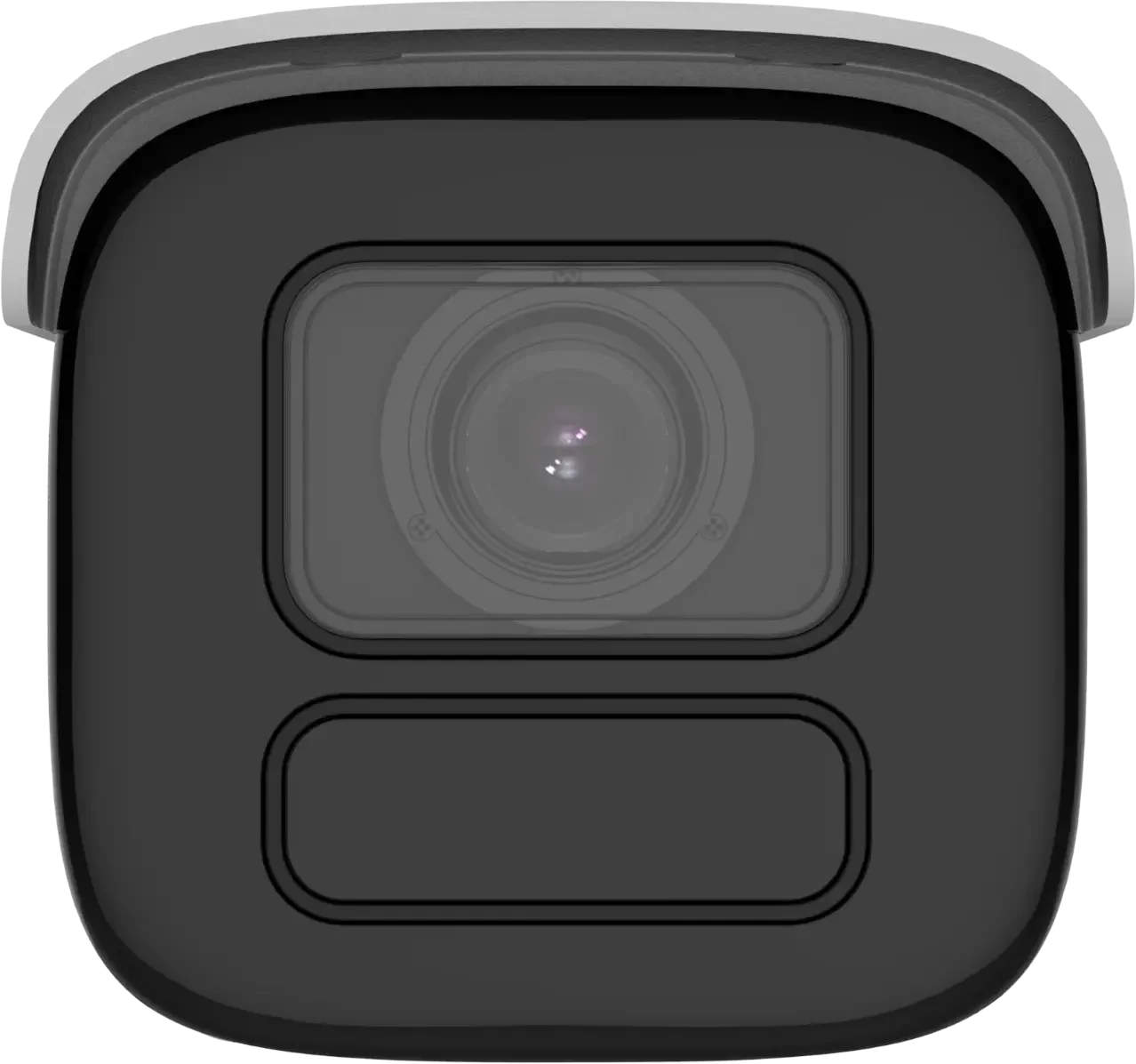

Motorized varifocal lens
The camera comes with a motorized varifocal lens available in either 2.8–12 mm or 8–32 mm. Focus and zoom can be adjusted directly via software or recorder, making setup flexible whether you want a wide overview or long-range monitoring.
Human and vehicle detection
The camera has built-in analytics that can distinguish between people and vehicles. It is based on deep learning and reduces the number of alarms triggered by irrelevant motion, such as animals, leaves or rain.
System resources
The unit offers 1.5 Tops of processing power, 40 MB system memory, 350 MB smart RAM and 2 GB eMMC storage. The built-in eMMC supports analytics and temporary storage without the need for an SD card, but long-term video storage still requires an NVR or server.
Connections and integration
The camera supports Hikvision Embedded Open Platform (HEOP), allowing installation of third-party applications. It also has audio and alarm interfaces for integration with external equipment such as microphones, speakers or sensors.
Weather and vandal protection
The camera is IP67-rated, making it dust- and water-resistant. The housing is also IK10-rated for high impact resistance. This Y(H) version includes anti-corrosion treatment and NEMA 4X certification, so it can be used in environments with extra demands, for example coastal areas.
NEMA 4X
This Y(H) version is treated for corrosion resistance and NEMA 4X certified. NEMA 4X means the camera has been tested to withstand rain, snow, salt, dust and corrosive environments. That makes this model well suited for harsh climates, for example near the sea or in industrial settings where regular cameras can quickly be damaged.
Technical specifications
- Resolution: 8 MP (3840 × 2160)
- Sensor: 1/1.8" Progressive Scan CMOS with DarkFighter technology
- Lens: Motorized varifocal 2.8–12 mm or 8–32 mm
- WDR: 120 dB
- Analytics: Classification of people and vehicles via deep learning
- Compression: H.265+
- Storage: 2 GB eMMC, also supports microSD up to 512 GB
- Interfaces: Audio and alarm ports, HEOP support
- Protection: IP67, IK10, Y(H) anti-corrosion and NEMA 4X
- Operating temperature: –40 °C to +60 °C
- IR illumination: Up to 60 m (2.8–12 mm) / up to 80 m (8–32 mm)
Power over Ethernet
Alarm in/out
Alarm in and out allows you to connect cameras and recorders to other equipment.
Face Capture
