Uniview standalone thermal kit for early detection of heat and fire

Thermal monitoring for fire prevention

A thermal camera can be used for more than standard video surveillance. It can monitor the temperature in an area and respond to abnormal heat development before the problem is necessarily visible in a regular camera image.

This makes the solution especially useful around, for example, EV chargers, electrical installations, rack and server cabinets, technical rooms, and other areas where abnormal heat should be detected as early as possible.

Get an alert before the fire develops

An abnormal rise in temperature can be an early sign that something is wrong. The thermal camera can monitor temperature continuously and trigger an alarm when the set temperature limits are exceeded.

This makes it possible to respond to abnormal heat development before the situation turns into an actual fire. It is especially relevant for example at EV chargers, rack and server cabinets, electrical panels, and other electrical installations.

Can warn before a regular smoke detector

A regular smoke detector typically only reacts once smoke has developed. The thermal camera, on the other hand, can react to an abnormal rise in temperature before smoke or visible flames necessarily appear.

It can therefore provide an earlier warning, for example in the event of overheating in an EV charger, a rack cabinet, an electrical panel, or other electrical equipment, so action can be taken before the situation develops further.

The thermal camera is an addition to fire protection and must not replace an approved smoke detector or an approved fire alarm system where required.

Ideal for EV chargers and charging areas

For EV chargers and charging areas, the camera can be used to monitor temperature development around the area covered by the camera. If the temperature exceeds the limits set in the camera, the system can respond with an alarm.

This makes it possible to detect abnormal heat development early and investigate the cause before the situation potentially develops further.

Rack cabinets, server rooms, and electrical installations

The solution can also be used for rack cabinets, server equipment, and technical installations where components, power supplies, or connections can develop abnormal heat.

Here, the thermal image can be used to monitor temperature differences and hot spots that may not be visible in a regular camera image.

Thermal and optical camera in one unit

The camera is bi-spectrum and includes both a thermal sensor and a regular 4 MP camera.

The thermal part detects temperature differences and heat development, while the optical part provides a regular camera image of the area. That means you can both detect the incident thermally and see what is actually happening around the installation.

Wide coverage at shorter distances

The thermal part has a 2.1 mm lens with a horizontal viewing angle of 88.8°. This provides a broad thermal overview and makes the model suitable for areas where the camera is mounted fairly close to what needs to be monitored.

This could, for example, be a row of charging stations, a technical area, or installations in and around a rack or server cabinet.

Temperature measurement and alarm thresholds

The camera can monitor temperature and be used to react when the temperature moves outside the set limits.

This makes it possible to use the camera as an active part of monitoring installations where an abnormal temperature rise may be a sign of overload, faults, or the start of a fire.

Automatic fire and smoke detection

The camera supports automatic fire detection via the thermal sensor and smoke detection via the optical camera module.

In the event of an incident, the camera can, among other things, activate a local warning or send a signal onward via its alarm outputs, depending on how the installation is configured.

A thermal monitoring camera is an addition to fire protection and does not replace an approved fire alarm system where one is required.

Local warning with light and sound

The camera has a built-in speaker as well as red and blue warning lights. That means the camera can be configured to give a visible and audible warning when an incident is detected.

It also has a built-in microphone and speaker, so the camera can be used for audio communication as well.

Can be connected to other systems

The camera has 2 alarm inputs and 2 alarm outputs. This makes it possible to integrate the camera with compatible external alarms, relays, sirens, or other control systems.

In this way, a thermal event can be used for more than just sending a notification.

Standalone - does not require an NVR

The camera performs the thermal analysis directly in the camera and supports local storage on a microSD card. The package includes a 64 GB Uniview PRO microSD card, so the solution can be used without a separate NVR.

The camera supports microSD cards of up to 512 GB.

PoE switch included

The included Uniview Gigabit PoE switch provides both power and network connection to the camera through the network cable. This makes installation easier, because the camera does not need a separate power supply at the mounting location.

40 minutes of online technician support

2 x 20 minutes of online technician support are included. A technician can help with setting up the system, so temperature rules, alarms, and relevant functions can be configured for the installation.

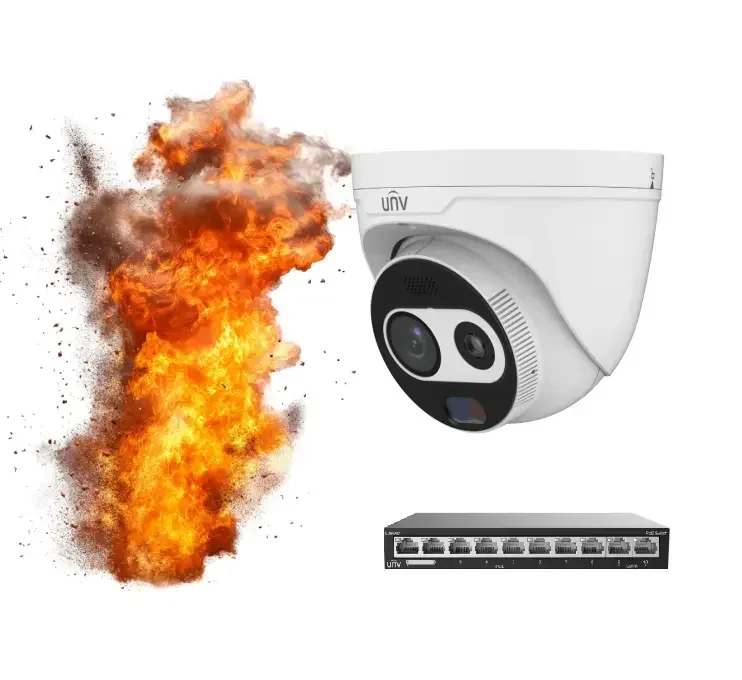

The package includes

• 1 x Uniview TIC3612SA-F2-4F3AC-I1 thermal and optical camera - Read more
• 1 x Uniview managed Gigabit PoE switch with 4 PoE ports + 2 Gigabit ports - Read more
• 1 x Uniview PRO microSD card 64 GB - Read more
• 2 x 20 minutes of online technician support - Read more

Remember the network cable

A network cable between the camera and the PoE switch is not included and must be purchased separately. You can therefore choose the cable length that fits the installation.

See our network cables in different lengths here - Choose network cable

Technical key points

• Camera: Uniview TIC3612SA-F2-4F3AC-I1
• Type: Thermal and optical bi-spectrum camera
• Thermal resolution: 256 x 192
• Optical resolution: 4 MP
• Thermal lens: 2.1 mm
• Thermal viewing angle: 88.8° horizontal
• Optical lens: 2.6 mm
• Optical viewing angle: 108.5° horizontal
• Temperature measurement: -20 °C to +150 °C or +100 °C to +550 °C
• Temperature accuracy: ±8 °C or ±8 %
• Fire detection: Yes
• Smoke detection: Yes
• Fire detection, 10 x 10 cm: Up to approx. 9 meters
• Temperature detection, 10 x 10 cm: Up to approx. 3.5 meters
• Person and vehicle detection
• Built-in microphone and speaker
• Built-in red and blue warning light
• Alarm inputs/outputs: 2 / 2
• MicroSD: Up to 512 GB
• Included microSD card: 64 GB
• PoE: IEEE 802.3af
• Protection: IP67
• PoE switch: 4 PoE ports + 2 Gigabit ports
• Online technician support: 2 x 20 minutes
