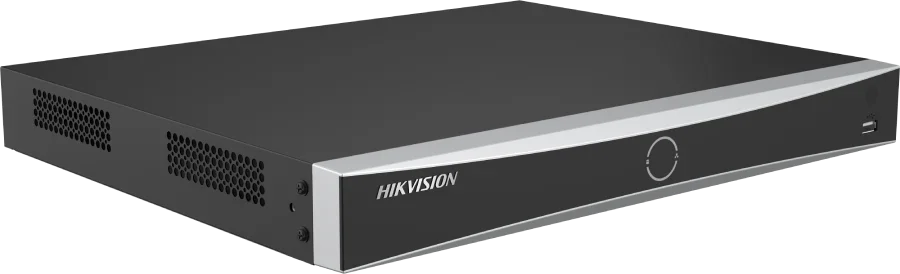

Hikvision DS-7616NXI-I2/VPro 16-channel AI NVR with AcuSeek
Professional 16-channel network recorder with intelligent video analytics, AcuSeek, and face recognition.
- Supports up to 16 IP cameras
- AcuSeek and AcuSearch for intelligent search in recordings
- Face recognition with up to 50,000 face images
- Space for 2 hard drives with up to 20 TB per drive
- 4K HDMI output
- H.265+ video compression
- Supports up to 8 IP speakers
- Two Gigabit network ports
Hikvision DS-7616NXI-I2/VPro is a professional network video recorder (NVR) that supports up to 16 IP cameras and uses Hikvision’s Guanlan AI model for intelligent video analytics. The recorder makes it easier to find relevant events, manage large amounts of video data, and use the intelligent features in compatible Hikvision cameras.
| Technical specifications | |
| Model | DS-7616NXI-I2/VPro |
| Product type | 16-channel I/VPro Network Video Recorder (NVR) with AcuSeek |
| IP camera support | Up to 16 IP cameras |
| Video compression | H.265+, H.265, H.264+ and H.264 |
| Incoming bandwidth | 160 Mbps |
| Outgoing bandwidth | 256 Mbps |
| Maximum recording resolution | Up to 32 MP |
| Video decoding | Up to 32 × 1080p channels or 1 × 32 MP channel |
| Video outputs | 1 × HDMI (up to 4K@30Hz) and 1 × VGA (up to 1080p), independent output |
| Audio | 1 RCA audio output, 1 RCA two-way audio, supports G.711, G.722, G.726, AAC, MP2L2 and PCM |
| AI functions | AcuSeek, AcuSearch, facial recognition, perimeter protection, Motion Detection 2.0, video structuralization, ANPR and people counting |
| Facial recognition | Up to 8 channels with support for 16 face libraries and up to 50,000 face images |
| AcuSeek / AcuSearch | Supports all channels with AI-assisted search and modelling of up to 300,000 targets per day |
| ANPR | Supports license plate recognition, vehicle attributes and plate attributes on supported camera channels |
| Playback | 16-channel synchronous playback with Smart Search, AcuSearch and AcuSeek |
| Storage | 2 × SATA interfaces supporting up to 20 TB per HDD |
| Network interfaces | 2 × Gigabit RJ45 Ethernet ports |
| Network protocols | TCP/IP, IPv4/IPv6, DHCP, DNS, NTP, RTSP, HTTPS, ONVIF, ISUP, NFS, iSCSI, SMTP, SNMP, UPnP and OTAP |
| Remote connections | Up to 128 simultaneous remote users |
| Alarm interfaces | 4 alarm inputs and 1 alarm output |
| USB interfaces | 1 × USB 2.0 (front), 1 × USB 3.0 (rear) |
| Power supply | 12 VDC, 5 A (60 W) |
| Power consumption | ≤ 50 W (without HDD) |
| Operating temperature | -10°C to 55°C |
| Operating humidity | 10% to 90% RH |
| Chassis | 1U rackmount |
| Dimensions (W × D × H) | 384 × 317 × 52 mm |
| Weight | ≤ 4 kg (without HDD) |
| Certifications | CE, CB, REACH, WEEE, UKCA, RCM, IC, LOA and KC |
| Der tages forbehold for eventuelle fejl og ændringer i specifikationerne / Specifications are subject to change without notice. Errors and omissions excepted. | |
SADP
Hik-ConnectThere is no reviews yet. Be the first to write us your opinion
An intelligent NVR for efficient video surveillance
The DS-7616NXI-I2/VPro is designed for businesses, stores, warehouses, institutions, and other installations where intelligent video analytics and quick access to recordings are needed.
When used with compatible Hikvision cameras, the recorder can take advantage of advanced AI features such as face recognition, perimeter protection, license plate recognition, people counting, and intelligent search.
AcuSeek
AcuSeek makes it possible to quickly find people and vehicles in large amounts of video footage.
The system uses Hikvision’s Guanlan AI model to index up to 300,000 entries per day, making searches much faster than manually reviewing recordings.
AcuSearch
AcuSearch makes it possible to search for people and vehicles across recordings from compatible cameras.
This reduces the time spent finding specific events.
Face recognition
The recorder supports up to 16 face libraries with a total of 50,000 face images.
Face recognition can be used for identification, searching, and comparison of registered persons.
Intelligent video analytics
The recorder supports intelligent features such as perimeter protection, Motion Detection 2.0, license plate recognition (ANPR), people counting, and Heat Map when the cameras used support these functions.
This provides more accurate alarms and makes it easier to analyze events.
Space for large recordings
The DS-7616NXI-I2/VPro has room for two SATA hard drives with up to 20 TB capacity per drive.
The large storage capacity makes the recorder suitable for installations with many cameras or long retention periods.
4K video output
The HDMI output supports up to 4K resolution, providing sharp viewing of both live video and recordings.
The recorder also supports playback from up to 16 cameras at the same time.
H.265+ reduces storage usage
H.265+ compresses video data more efficiently than earlier standards.
This reduces both storage usage and network load without compromising image quality.
Network and integration
The recorder is equipped with two Gigabit network ports and supports Hik-Connect, ONVIF, and ISAPI.
In addition, up to eight Hikvision IP speakers can be connected as part of the surveillance solution.
Technical key points
- Model: Hikvision DS-7616NXI-I2/VPro
- 16-channel AI NVR
- Supports up to 16 IP cameras
- AcuSeek
- AcuSearch
- Face recognition
- Motion Detection 2.0
- Perimeter protection
- ANPR (license plate recognition)
- People counting
- Heat Map
- H.265+
- 2 SATA bays
- Up to 20 TB per hard drive
- 4K HDMI output
- 16-channel simultaneous playback
- 2 × Gigabit network ports
- Up to 8 IP speakers
- Hik-Connect
- ONVIF support
Hvor stor en harddisk skal jeg vælge?
Optagere leveres som udgangspunkt uden harddisk, for behovet er ikke det samme for alle.
Når du optager din videoovervågning, så er der flere ting der påvirker, hvor meget optagelserne fylder.
Helt oplagt så betyder antallet af kameraer, og deres opløsning meget - men din konfiguration, og hvor meget der sker foran kameraet, har også en betydning.
Udgangspunktet er, at man hellere skal optage en time for meget end et minut for lidt. Omvendt gider normalt kun nordmænd lave videoer, der viser at græsset gror.
Brug beregneren til at få en fornemmelse af dit pladsbehov. Synes du det er spændende, så læs lidt mere om pladsoptimering nederst på siden. Og har du vigtigere ting for - så bare ring til os...
1) Vælg kameraets opløsning...
2) Vælg antal kameraer...
3) Vælg størrelsen på harddisken...
4) Vælg antal timer med optagelse per dag... 6
1 time
24 timer
Resultat:
Lagringspladsen svarer til cirka timers videooptagelse.
Med 6 timers optagelse pr dag, kan du typisk gå dage tilbage i tid.1)
1) Værdierne er tilnærmede, og baseret på typiske indstillinger med 25 billeder i sekundet og h265 komprimering.
