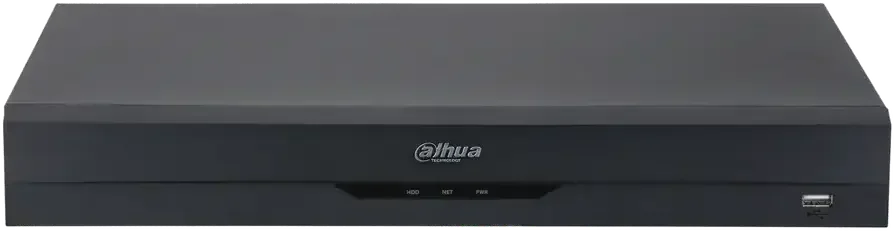

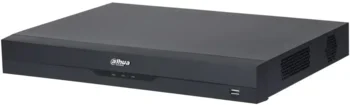

Dahua XVR5216AN-I3 16-channel hybrid DVR with AI

Model: XVR5216AN-I3
3.997,00  Incl. VAT
( 3.197,60  Excl. VAT )
Availability: In stock In stock - ships within 1 to 2 weekdays In stock In stock - ships within 1 to 2 weekdays
Do you have questions about the product? +45 70701009

Dahua 16-channel hybrid recorder for video surveillance supporting both analog and IP cameras, with intelligent analysis features.

  • Supports up to 16 analog cameras.
  • Can be expanded to up to 24 cameras with IP cameras.
  • SMD Plus filters motion and focuses on people and vehicles.
  • Perimeter protection can detect events like line crossing and intrusion.
  • Face recognition can detect and search for people in recordings.
  • Supports multiple camera formats such as HDCVI, AHD, TVI, CVBS and IP.
  • Space for 2 hard drives to store recordings.

A digital video recorder (DVR) is used to record and store video from your surveillance cameras. The cameras send video to the recorder, where the footage is saved to a hard drive.

You can view live feeds and play back recordings directly from the recorder on a connected monitor. You can also access the system from your mobile or computer via the internet, so you can monitor the cameras no matter where you are.

View full description

  • WD Purple SATA Hard Drive
    Price from
    1.099,00  Incl. VAT
    ( 879,20  Excl. VAT )
    WD Purple SATA Hard Drive

    Hard drive specially developed for surveillance/NVR

  • Wireless mouse for recorder
    179,00  Incl. VAT
    ( 143,20  Excl. VAT )
    Wireless mouse for recorder

    Wireless mouse for hard disk recorder

  • BNC Cable
    Price from
    190,00  Incl. VAT
    ( 152,00  Excl. VAT )
    BNC Cable
  • Lockable 19" cabinet for NVR
    2.999,00  Incl. VAT
    ( 2.399,20  Excl. VAT )
    Lockable 19" cabinet for NVR

    Lock your NVR inside this sleek cabinet

  • 19'' Wall-mounted Rack Cabinet - 12U - 600x600
    1.389,00  Incl. VAT
    ( 1.111,20  Excl. VAT )
    19'' Wall-mounted Rack Cabinet - 12U - 600x600

    Wall-mount rack cabinet

Download
Datasheet Manual Quick Guide

System

Main Processor

Embedded processor

Operating System

Embedded Linux

Operating System

Web; Local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 2 channel, 10 IVS for each channel

General Model: 4 channels, 10 IVS for each channel

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 12 face images/s)

Face Recognition

Face Database Capacity

Up to 10 face databases with 10000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

16 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.

2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.

3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.

IP Camera Input

Up to 24 channels of IPC access

8 IP channels by default + 16 channels (analog channels are converted to IP channels)

incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps

*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding Capacity

Main stream:

5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@(1-12fps)

5M-N Mode:

All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps)

Sub stream: D1, CIF@(1–15fps)

Dual-stream

Yes

Video Frame Rate

PAL: 1 fps–25 fps.
NTSC: 1 fps–30 fps.

Video Bit Rate

32 Kbps–6144 Kbps Per Channel

Audio Sampling

8 KHz, 16 bit

Audio Bit Rate

64 Kbps

Bit Rate Type

Video stream and composite stream.

Video Output

1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25

Third-party Camera Access

Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

Compression Standard

Video Compression

AI Coding/H.265+/H.265/H.264+/H.264

Audio Compression

G.711A/G.711u/PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iPhone, iPad, Android

Interoperability

ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome, IE9 or above, Firefox

Network Mode

Single-address mode

Recording Playback

Record Mode

General, motion detection; intelligent; alarm; POS

Recording Playback

1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.

Backup Method

USB Device/Network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection, video loss, tampering

Anomaly Alarm

No disk, disk error, low space, offline, ip conflict, MAC conflict

Intelligent Alarm

Face detection, face recognition, perimeter protection

Alarm Linkage

Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

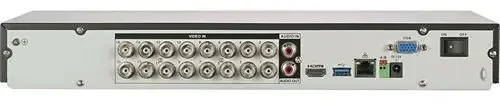

Ports

Audio Input

1-channel RCA (external)

16-channel BNC (coaxial audio)

Audio Output

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

HDD Interface

2 SATA Ports, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature

RS-485

1 Port, for PTZ Control

USB

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI

1

VGA

1

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

DC12V, 4A

Power Consumption

Lower than 12 W

Net Weight

1.56 kg (3.44 lb)

Gross Weight

2.86 kg (6.31 lb)

Product Dimensions

1U, 375.0 mm × 289.4 mm × 53.0 mm
14.76" × 11.39" × 2.09" (W × D × H)

Packaging Dimensions

433.0 mm × 141.0 mm × 366.0 mm
17.05" × 5.55" × 14.41" (W × D × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90%

Installation

Desktop

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B

There is no reviews yet. Be the first to write us your opinion

Add review:

Hybrid recorder for multiple camera types

The Dahua XVR5216AN-I3 is a hybrid recorder that works with multiple types of surveillance cameras. It supports both traditional analog cameras and IP cameras over the network.
That makes it a good choice if you already have an analog surveillance system and later want to expand with IP cameras.



Supports up to 16 cameras

The recorder has 16 inputs for analog cameras. In addition, the system can be expanded with up to 8 IP cameras over the network.
This gives you the option to build a surveillance system with up to 24 cameras in total.



Supports multiple camera formats

The recorder supports several different camera formats, including HDCVI, AHD, TVI, CVBS and IP cameras.
The system can automatically detect the camera type, making installation easier.



SMD Plus - intelligent motion detection

SMD Plus analyzes motion in the video and can distinguish between people, vehicles and other types of movement.
This makes it easier to find times when people or cars were in the area, while also reducing many false alarms from things like rain, leaves or changes in lighting.



Perimeter protection

Perimeter protection is used to detect events in specific areas of the image.
For example, it can notify you if someone crosses a line or enters a defined zone. The feature helps reduce false alarms from general motion in the scene.



Face recognition

The recorder can detect faces in the video and save them to a database.
The system can analyze facial features and store information such as age, gender, glasses and face mask. This makes it possible to search for specific people in the recordings.



AI search in recordings

The recorder supports intelligent searching in recordings. The system can analyze the video and help you find people or events in the footage.
This makes it easier to locate relevant clips without manually watching hours of video.



Storage on hard drives

The recorder has space for two hard drives to store video recordings.
The drives store footage from the cameras so you can playback and review events later. When the drives fill up, the system automatically overwrites the oldest recordings.



Monitor connections

The recorder has HDMI and VGA outputs so you can connect a monitor directly to the system.
This lets you view live camera feeds and play back recordings straight from the recorder.



Access from mobile and computer

The recorder can be connected to a mobile app or computer software.
That allows you to view live feeds, review recordings and manage the system over the internet, so you can keep an eye on your cameras from anywhere.



Key technical points

  • Camera channels: 16 analog
  • IP camera expansion: up to 8 additional cameras
  • Max IP camera resolution: 6 MP
  • Incoming bandwidth: up to 128 Mbps
  • Video output: HDMI and VGA
  • Hard drive: 2 SATA, up to 16 TB per disk
  • Network port: 1 × Gigabit RJ45
  • USB ports: 2
  • Power supply: 12 V DC
  • Operating temperature: −10 °C to +55 °C
  • Dimensions: 375 × 289 × 53 mm
  • Weight: approx. 1.56 kg

Hvor stor en harddisk skal jeg vælge?

Optagere leveres som udgangspunkt uden harddisk, for behovet er ikke det samme for alle.

Når du optager din videoovervågning, så er der flere ting der påvirker, hvor meget optagelserne fylder.
Helt oplagt så betyder antallet af kameraer, og deres opløsning meget - men din konfiguration, og hvor meget der sker foran kameraet, har også en betydning.

Udgangspunktet er, at man hellere skal optage en time for meget end et minut for lidt. Omvendt gider normalt kun nordmænd lave videoer, der viser at græsset gror.

Brug beregneren til at få en fornemmelse af dit pladsbehov. Synes du det er spændende, så læs lidt mere om pladsoptimering nederst på siden. Og har du vigtigere ting for - så bare ring til os...



1) Vælg kameraets opløsning...

2) Vælg antal kameraer...

3) Vælg størrelsen på harddisken...

4) Vælg antal timer med optagelse per dag... 6

1 time

24 timer

Resultat:

Lagringspladsen svarer til cirka timers videooptagelse.

Med 6 timers optagelse pr dag, kan du typisk gå dage tilbage i tid.1)

1) Værdierne er tilnærmede, og baseret på typiske indstillinger med 25 billeder i sekundet og h265 komprimering.
