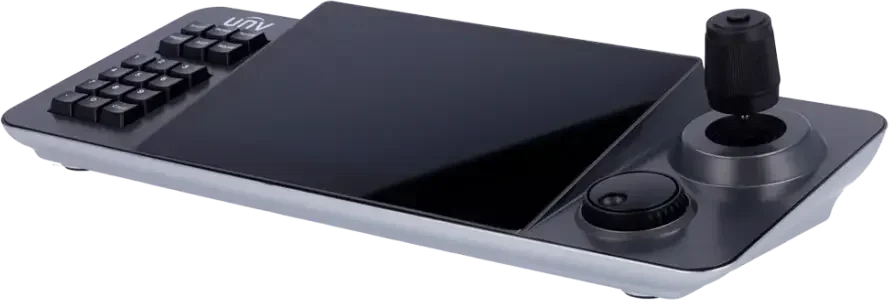

Uniview network keyboard with 10.2" touchscreen and PTZ joystick
Advanced network keyboard with touchscreen, video decoding, PTZ control and video wall management
- 10.2" capacitive touchscreen
- 4D joystick for PTZ control
- Display live video directly on the keyboard
- Supports up to 500 camera and recorder channels
- H.264 and H.265 support
- Decoding of up to 4K video
- Control of video walls and decoders
- HDMI output in Full HD
- Search for and add cameras with a few clicks
- USB port for updates and mouse connection
KB-2100 is developed for professional monitoring centers, control rooms and larger surveillance installations. The keyboard combines touchscreen, joystick and video decoding in one unit, so the operator can both control cameras and view live video directly from the keyboard.
| Datablad |
| Technical specifications | |
| Product type | Network control keyboard |
| Model | KB-2100 |
| Display | 10.2" capacitive touchscreen 2-point touch control |
| Video output resolution | 1920 × 1080 @ 60 Hz |
| Video decoding formats | H.264, H.265 |
| Decoding capacity | 1 × 3840 × 2160 @ 25 Hz 4 × 1080P @ 30 Hz 8 × 720P @ 30 Hz |
| Supported devices | Up to 500 IPC and NVR channels |
| Camera management | One-click search and addition of IPCs and NVRs |
| Split screen modes | 1 / 4 / 9 split screen Supports display of up to 8 channels simultaneously |
| Joystick | 4D joystick Pan, tilt, focus and zoom control for PTZ cameras |
| Video wall control | Supports VMS, VM, decoders and video wall control Window opening, roaming, split screen, sequence, scene management and screen on/off control |
| Audio | 1 × 3.5 mm audio output (reserved) |
| HDMI output | 1 × HDMI output |
| Network interface | 1 × 10/100 Mbps RJ45 Ethernet port |
| Serial interfaces | 1 × RS232 (DB9, reserved) 1 × RS485 half-duplex (reserved) |
| USB | 1 × USB port for upgrades and mouse connection |
| Power supply | 12 V DC |
| Maximum power consumption | < 15 W |
| Additional functions | Enable/disable key tone Scheduled restart System upgrade via USB flash drive |
| Dimensions | 449.7 × 178.6 × 115.4 mm |
| Weight | 1.4 kg |
| Operating temperature | −10 °C to +40 °C |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Storage temperature | −40 °C to +60 °C |
| Der tages forbehold for eventuelle fejl og ændringer i specifikationerne | |
There is no reviews yet. Be the first to write us your opinion
Touchscreen provides a quick overview
The built-in 10.2" touchscreen lets you navigate the surveillance system without a separate computer.
The screen gives a fast overview of cameras, recorders and system functions, while touch control makes navigation simple and intuitive.
That makes daily operation faster, especially in installations with many cameras.
Precise PTZ control with joystick
The keyboard is equipped with a professional 4D joystick for controlling PTZ cameras.
You can pan, tilt, zoom and focus directly from the joystick, giving much more precise control than using a mouse.
It's especially useful during active monitoring, where the operator continuously follows people or vehicles.
View live video directly on the keyboard
KB-2100 can decode video streams itself and display live images directly on the built-in screen.
The system supports decoding of, among others:
- 1 channel in 4K resolution
- 4 channels in 1080P
- 8 channels in 720P
This allows you to quickly check footage without switching to a separate workstation.
Control up to 500 cameras and recorders
The keyboard supports connecting up to 500 channels from cameras and recorders.
That makes the model suitable for larger installations such as businesses, campus areas, industrial sites, airports, shopping centers and monitoring centers.
Cameras and recorders can be searched for and added directly from the keyboard.
Video wall control
KB-2100 can manage decoders, video walls and central monitoring systems.
The operator can, for example:
- Open and move video windows
- Change screen layouts
- Start sequences
- Switch between saved scenarios
- Turn screens on and off
That makes the keyboard well suited as a central control unit in control rooms.
HDMI output for external monitor
The keyboard has an HDMI output with Full HD resolution at 1920 × 1080 @ 60 Hz.
This allows you to connect an external monitor and use the keyboard as a standalone control station.
In smaller installations, this can in some cases reduce the need for a separate computer.
Built for daily operation
The unit is designed for professional use and supports scheduled reboot, updates via USB and the option to enable or disable keyboard sounds.
That makes administration easier in larger installations where the equipment is used daily.
Key technical points
- 10.2" capacitive touchscreen
- 4D joystick for PTZ control
- Supports up to 500 camera and recorder channels
- H.264 and H.265 support
- Decoding of 1 × 4K, 4 × 1080P or 8 × 720P
- HDMI output 1920 × 1080 @ 60 Hz
- 1/4/9 screen split
- Control of video walls and decoders
- Gigabit network connection
- USB port for updates and mouse
- RS232 and RS485 interface
- Scheduled reboot
- Power consumption under 15 W
- Operating temperature from -10 °C to 40 °C
- Weight 1.4 kg
