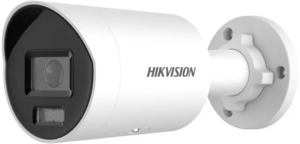

Hikvision DS-2CD2046G2H-I 4MP AcuSense mini-bullet
Discreet Bullet Camera with Advanced Features
- 4 megapixel image sensor delivers a great daytime image.
- Invisible IR light with a range of up to 40 meters.
- AcuSense technology enables precise detection of people and vehicles.
- Suitable for both indoor and outdoor use.
Receive push notifications and access video directly from your smartphone, computer or tablet.
- Camera
- Image Sensor 1/3" Progressive Scan CMOS
- Max. Resolution 2688 × 1520
- Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens Type Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV 2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7° 4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.0
- Depth of Field 2.8 mm: 1.9 m to ∞ 4 mm: 2.5 m to ∞
- DORI
- DORI 2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m 4mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 40 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- Video
- Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
- Video Compression Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR/VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 1 fixed region for main stream and sub-stream
- Audio
- Audio Type -U: mono sound
- Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering -U: Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host Up to 32 users. 3 user levels: administrator, operator and user
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200, Hik-Connect, Hik-Central
- Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch Yes
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR) 120 dB
- SNR ≥ 52 dB
- Image Enhancement BLC, HLC, 3D DNR
- Privacy Mask 4 programmable polygon privacy masks
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone -U: Yes
- Reset Key Yes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart Event Scene change detection
- Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
- Deep Learning Function
- Face Capture Yes
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
- General
- Power 12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
- Material Front cover: Metal, body: Metal, bracket: Metal
- Dimension Ø74.4 mm × 179.2 mm (Ø2.9" × 7.1")
- Package Dimension 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
- Weight Approx. 525 g (1.2 lb.)
- With Package Weight Approx. 750 g (1.7 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment CE-RoHS: 2011/65/EU
- Protection IP67: IEC 60529-2013
There is no reviews yet. Be the first to write us your opinion
Den professionelle måde at levere strøm, til et PoE-kamera, er gennem netværkskablet.
På den måde behøver man kun at trække et enkelt kabel til hvert kamera - og skal ikke døje med 230V og små strømforsyninger.
Strømmen til kameraet leveres gennem netværkskablet fra enten...
- en optager med indbygget PoE, også kaldet NVR. Et typisk valg for installationer op til og med 8 kameraer.
- en PoE-switch. Populært fortalt en fordelerdåse til netværkskabler. Det typiske valg på store installationer eller hvis man ønsker fleksibel kabelføring.
- en PoE-injector. Kan kun levere strøm til et kamera.
Af samme grund følger der ikke strømforsyning med PoE-kameraer. Du kan bestille en klassisk strømforsyning her, hvis du ikke ønsker at benytte PoE.
Mini-Bullet from Hikvision with human and vehicle detection
The surveillance camera is from the AcuSense family from Hikvision. This means that it can give you notifications about people and vehicles while reducing false alarms from, for example, animals, shadows and moving trees. It is well suited for private homes, where the camera can be mounted a little higher.
Watch the video showing how it works
As you can see in the video below, the camera's specialty is being able to distinguish between people, vehicles, and uninteresting things.
About the camera
The camera is part of Hikvision's Mini-Bullet series. These are small Bullet cameras that are not as strong in the joint. Therefore, they should be mounted where you can't reach them. The camera is IP67-approved, which means that it can withstand heavy weather and can be used both indoors and outdoors. The camera is also easy to mount, as it can be mounted on vertical, horizontal and inclined surfaces.
Human and vehicle detection (AcuSense)
Even though the camera is intelligent, it still needs some input from you. Once the camera is mounted, you can choose from several types of smart events:
Intrusion Detection: Where a square is drawn in the image. When a target moves into the square and stays longer than you have allowed (1-10 seconds), your reaction is triggered.
Line crossing: Detects if a target moves across the line you have drawn. This can be in both directions or just one direction. For example, it can be used for one-way roads where an alarm is given when driving against the direction of travel, or for a driveway where you can choose to only be notified upon arrival and not upon departure.
What is a reaction? The event that is triggered when a rule is violated is called a reaction. Depending on which model is chosen, you have different options. Most commonly used reactions:
- Push notification on your mobile (get a picture sent directly to your phone of the goal that broke the rule, with a link to live playback in the app).
- Send email (this feature should be used with caution as email providers may close your account for suspected spamming if too many images are sent).
- Flashing with white light.
- Warning sound (siren or voice warning - there is also the option to record your own messages).*
*To have all functions, choose the models where the model number ends in IU/SL.
Which AcuSense Mini-Bullet cameras can do what?
The model name tells you what features the camera has if it ends in:
- DS-2CDXXX6G2H- I = Standard with infrared night vision.
- DS-2CDXXX6G2H- IU = With infrared night vision and one microphone.
- DS-2CDXXX6G2H- IU/SL = With infrared night vision, microphone, white strobe light and speaker.
IP67 approved
The camera is IP67 rated, which means it can withstand wind and weather.
- Dustproof (6): Full protection against dust.
- Waterproof by immersion (7): Can withstand temporary immersion in water up to 1 meter deep for up to 30 minutes.
Supports microSD cards
The camera can take a microSD card up to 512 GB (memory card not included, but can be purchased here ).
About the lens
The camera is available with several lenses, and the lens has an impact on the FOV (Field Of View).
2.8 mm lens provides:
- Horizontal: 100.2°
- Vertical: 54.7°
- Diagonal (corner to corner): 119.7°
4 mm lens provides:
- Horizontal: 81.1°
- Vertical: 44.7°
- Diagonal: 94.6°
Assembly
The camera is very easy to install and can be mounted directly on the wall or in the ceiling or overhang. A back box or bracket may be required if a cable connection cannot be located behind the wall, ceiling or overhang. Under the 'accessories' tab you can see which brackets are suitable for the camera.
