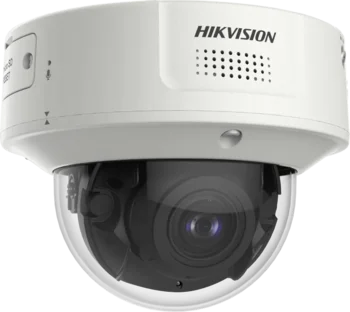

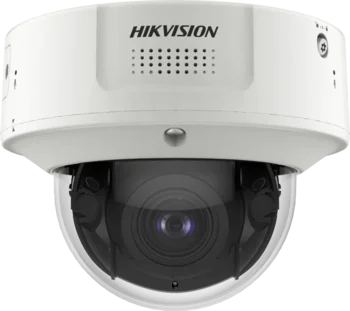

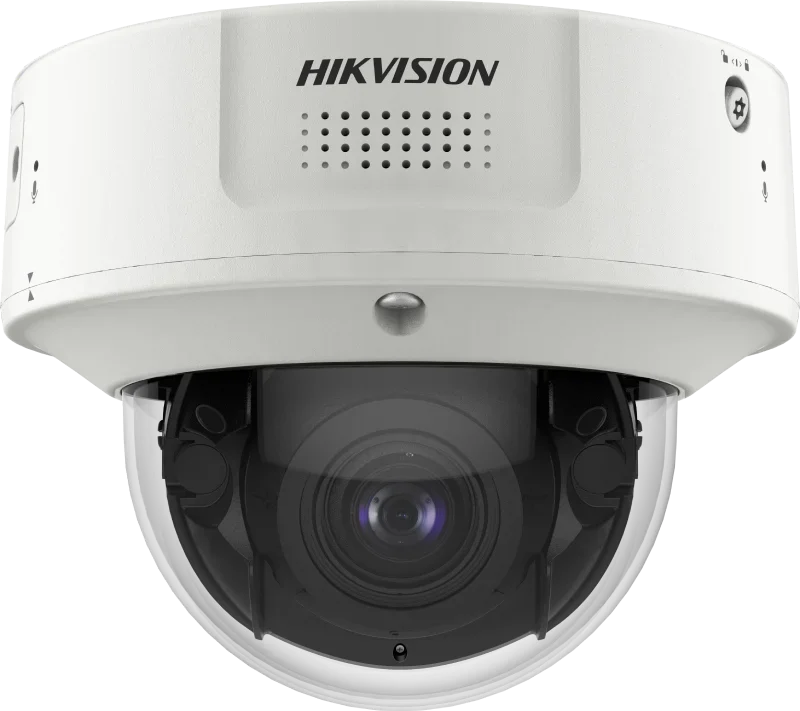

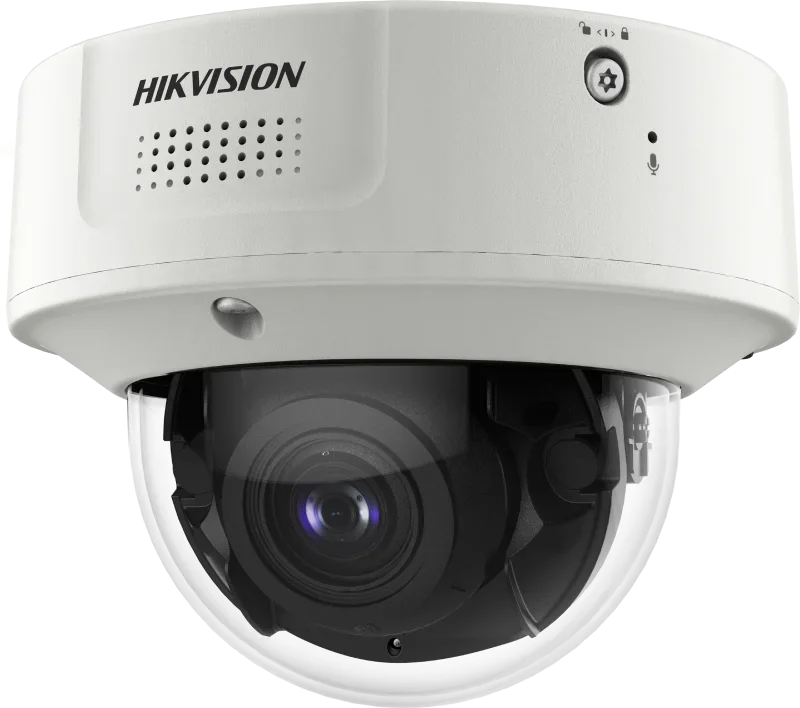

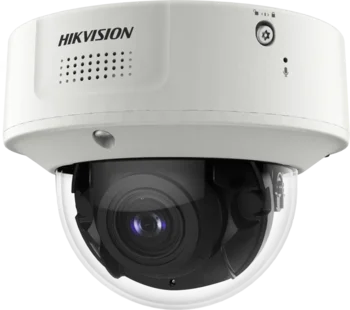

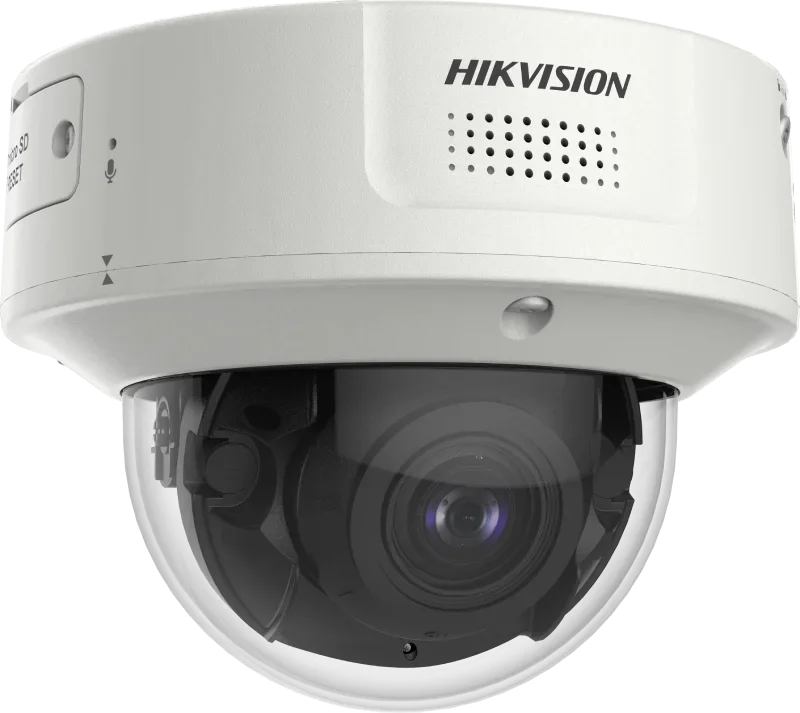

Hikvision iDS-2CD7146G0-IZHSY(D) 4 MP AI dome camera with motorized zoom and NEMA 4X
4 MP AI dome camera with DarkFighter, motorized zoom, face detection and advanced video analytics.
- 4 MP resolution with DarkFighter technology
- Motorized varifocal lens (2.8-12 mm or 8-32 mm)
- 140 dB WDR for demanding lighting conditions
- AI features for face detection, people counting and perimeter protection
- Heat Map, queue management and Hard Hat Detection
- Built-in microphone, speaker and microSD slot up to 1 TB
- IP67, IK10 and NEMA 4X corrosion protection
Hikvision iDS-2CD7146G0-IZHSY(D) is a professional AI network camera designed for advanced video analytics and surveillance. The camera combines DarkFighter technology, motorized zoom and intelligent analytics functions, making it a great choice for businesses, industry, retail, transport, logistics and public installations where surveillance also needs to deliver valuable data.
| Datasheet | Quick Guide |
| Technical specifications | |
| Model | iDS-2CD7146G0-IZHSY(D) |
| Product type | 4 MP IR varifocal dome network camera with Deep Learning analytics |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Maximum resolution | 2688 × 1520 (4 MP) |
| Minimum illumination | Colour: 0.0005 Lux @ F1.2 (AGC ON); B/W: 0.0001 Lux @ F1.2 (AGC ON); 0 Lux with IR |
| Shutter speed | 1 s to 1/100,000 s |
| Day/night function | IR cut filter |
| Lens options | Motorized varifocal 2.8–12 mm or 8–32 mm with auto, semi-auto and manual focus |
| Aperture | 2.8–12 mm: F1.2–F2.5 8–32 mm: F1.7–F1.73 |
| IR illumination | Smart IR, up to 40 m (2.8–12 mm) or 60 m (8–32 mm) |
| Maximum frame rate | Up to 30 fps at 2688 × 1520 or 60 fps at 2560 × 1440 / 1920 × 1080 |
| Video streams | Up to 5 configurable video streams |
| Video compression | H.265+, H.265, H.264+, H.264 and MJPEG |
| Wide Dynamic Range | 140 dB WDR |
| Image enhancement | BLC, HLC, 3D DNR, Defog, Distortion Correction, EIS and ROI |
| AI analytics | Face capture, face comparison, perimeter protection, human/vehicle detection, people counting, queue management, regional people counting, heat mapping, hard hat detection, on/off duty detection and metadata generation |
| Built-in audio | 2 built-in microphones and built-in speaker |
| Audio interfaces | 1 audio input and 1 audio output (3.5 mm) |
| Alarm interfaces | 2 alarm inputs and 2 alarm outputs |
| Storage | Built-in microSD/microSDHC/microSDXC slot supporting cards up to 1 TB |
| Network interface | 1 × RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| API support | ONVIF Profile S, G, T and M, ISAPI, SDK and ISUP |
| Power supply | 12 VDC, 24 VAC or PoE IEEE 802.3at Type 2 Class 4 |
| Power consumption | Maximum 11.92 W |
| Protection rating | IP67 weatherproof and IK10 vandal resistant |
| Anti-corrosion protection | NEMA 4X (-Y model) |
| Material | Metal base and metal cover |
| Operating temperature | -40°C to 60°C (-H model), humidity 95% or less, non-condensing |
| Dimensions | Ø 144.3 × 114.1 mm |
| Weight | Approx. 990 g |
| Compatible accessories | DS-1475ZJ-SUS, DS-1475ZJ-Y, DS-1476ZJ-SUS, DS-1476ZJ-Y, DS-1227ZJ-DM32, DS-2280ZJ-WA140, DS-2200ZJ-WA-140, DS-2200ZJ-WAJ140 and DS-2210ZJ-WA-140 |
| Der tages forbehold for eventuelle fejl og ændringer i specifikationerne / Specifications are subject to change without notice. Errors and omissions excepted. | |
:contentReference[oaicite:0]{index=0}
There is no reviews yet. Be the first to write us your opinion
4 MP AI dome camera with motorized zoom and NEMA 4X
The camera delivers sharp images at up to 4 MP resolution and is equipped with a large 1/1.8" Progressive Scan CMOS image sensor, ensuring high image quality both day and night.
DarkFighter technology delivers excellent performance in very low light conditions, helping preserve details where ordinary cameras often lose image quality.
Motorized varifocal lens
The camera comes with either a 2.8-12 mm or 8-32 mm motorized lens.
The focal length can be adjusted directly from software or NVR, so the field of view can easily be adapted to the installation without manual lens adjustment.
The shorter zoom version is well suited for wide monitoring of entrances, reception areas and shops, while the 8-32 mm model is ideal for surveillance over longer distances.
DarkFighter for very low light
DarkFighter technology gives the camera very high light sensitivity, so monitoring continues with high image quality even in very limited lighting.
The camera also uses intelligent IR illumination with a range of up to 40 meters (2.8-12 mm) or 60 meters (8-32 mm), where Smart IR automatically adjusts the brightness according to the distance to the subject.
140 dB WDR
The built-in 140 dB Wide Dynamic Range handles very large differences in light within the same image.
This gives noticeably better images at entrances, gates, warehouses, loading docks and other areas with strong backlighting.
AI-based perimeter protection
The camera uses deep learning to detect people and vehicles for line crossing, intrusion, area entry and area exit.
By distinguishing between relevant targets and movement from, for example, animals, rain or vegetation, the number of false alarms is significantly reduced.
Face detection
The camera can detect up to 120 faces at the same time and automatically select the best face images.
Faces can be stored with both an overview image and a close-up, making the function well suited for access control, investigations and documentation.
Face comparison
The camera supports up to 10 face databases with a total of 150,000 face profiles.
This makes it possible to perform local face recognition and compare against existing databases in compatible solutions.
People counting
The built-in AI supports advanced people counting with detection of people entering, exiting or passing through an area.
The system can generate daily, weekly, monthly and annual reports that can be used to analyze customer flow or visitor statistics.
Queue management
The camera can analyze queue lengths and waiting times in up to eight monitoring zones.
This makes the solution well suited for retail, reception areas, airports, ticketing areas and other places where waiting times need to be monitored.
Heat Map
Heat Map visually shows which areas are visited most, or where people stay the longest.
The data can be used to optimize store layout, customer flow or staffing.
Hard Hat Detection
The camera supports detection of people not wearing a safety helmet in defined areas.
The function can be used on construction sites, production areas and other workplaces where helmet use is required.
On/Off Duty Detection
The camera can detect whether employees are in a specific area and whether a workstation is occupied or unoccupied.
This can be used to monitor staffing and work routines in production and service areas.
Five video streams
The camera supports up to five simultaneous video streams.
This makes it possible to send different video qualities for, for example, recording, live view, mobile clients and analytics at the same time.
Built-in audio
The camera has two built-in microphones and a built-in speaker.
In addition, it includes both audio input and audio output, so external audio equipment can be connected as needed.
Local storage
The built-in microSD slot supports memory cards of up to 1 TB.
The camera also supports recording to NAS as well as ANR, which helps secure recordings during temporary network outages.
IP67, IK10 and NEMA 4X
The camera is IP67 certified against dust and rain and IK10 vandal resistant.
This -Y model also has NEMA 4X corrosion protection, making it suitable for installations in areas with moderate salt exposure or other environments with increased corrosion resistance requirements.
Accessories
Under the accessories tab, you will find compatible mounting solutions, including junction boxes, wall mounts, ceiling mounts, corner mounts and pole mounts.
Technical key points
- Model: Hikvision iDS-2CD7146G0-IZHSY(D)
- 4 MP (2688 × 1520)
- DarkFighter
- 140 dB WDR
- Motorized lens: 2.8-12 mm or 8-32 mm
- Smart IR up to 40 or 60 meters
- Five video streams
- Face detection and face comparison
- AI perimeter protection
- People counting
- Queue management
- Heat Map
- Hard Hat Detection
- On/Off Duty Detection
- Two built-in microphones
- Built-in speaker
- microSD up to 1 TB
- PoE+ (IEEE 802.3at)
- IP67
- IK10
- NEMA 4X corrosion protection
