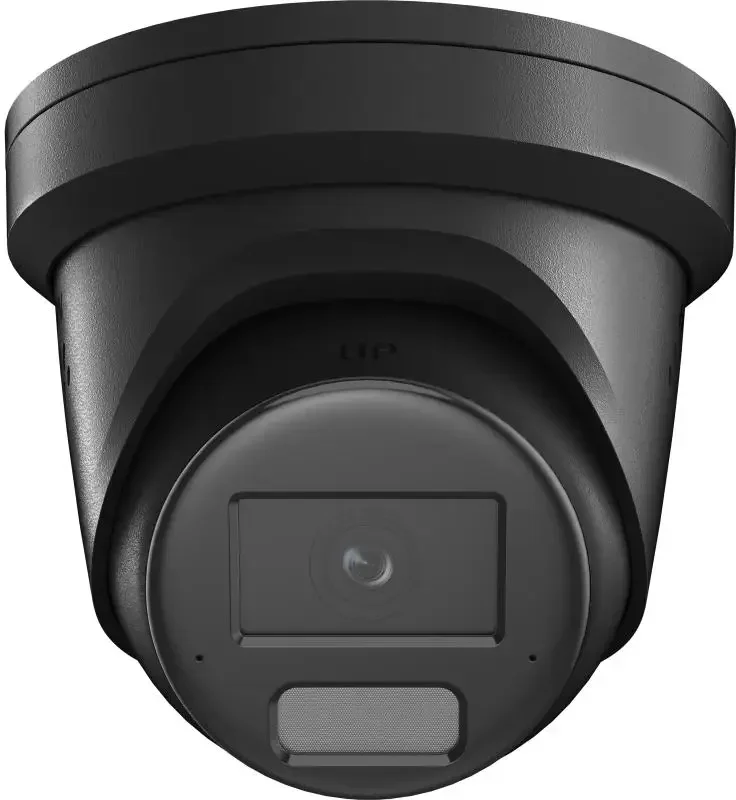

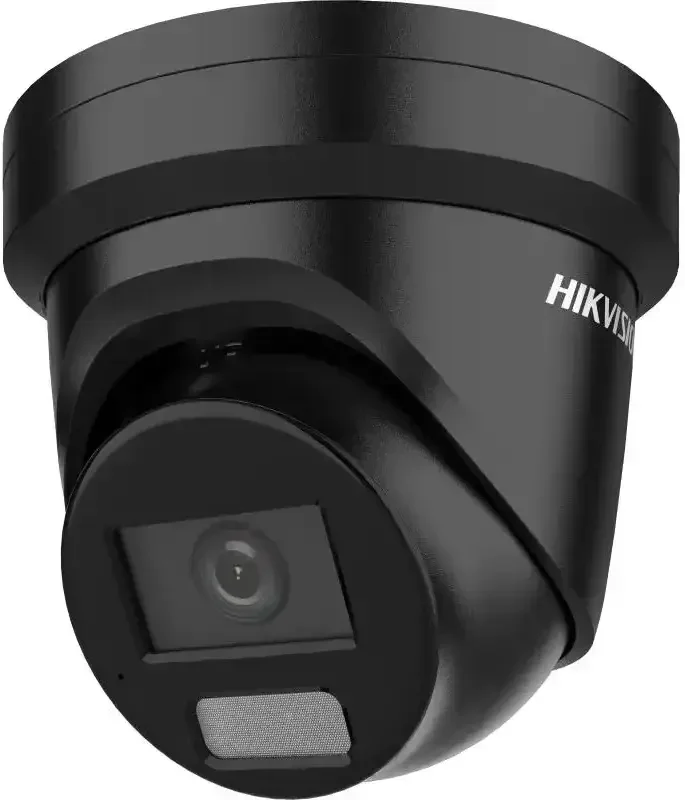

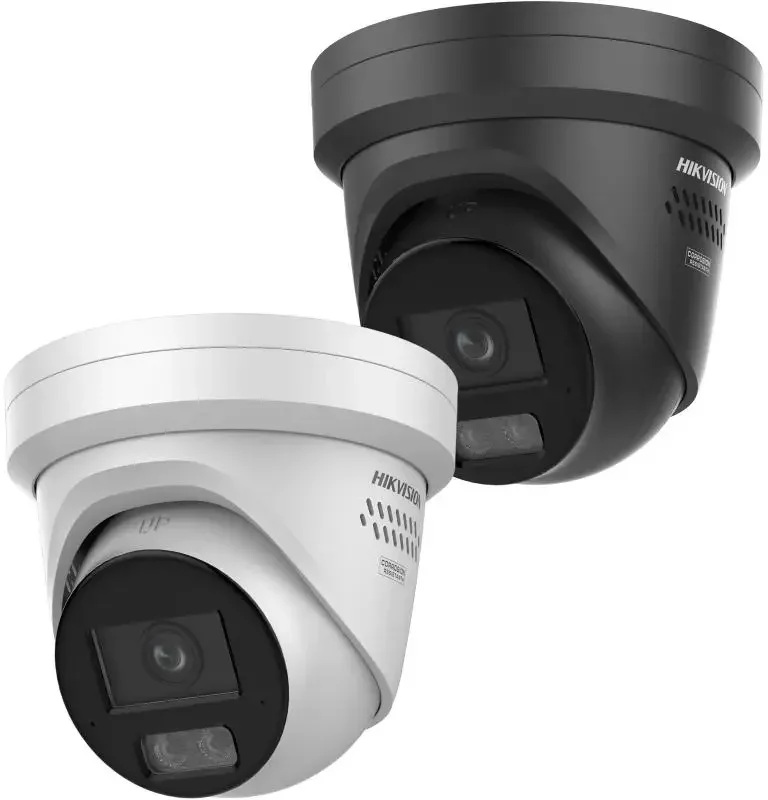

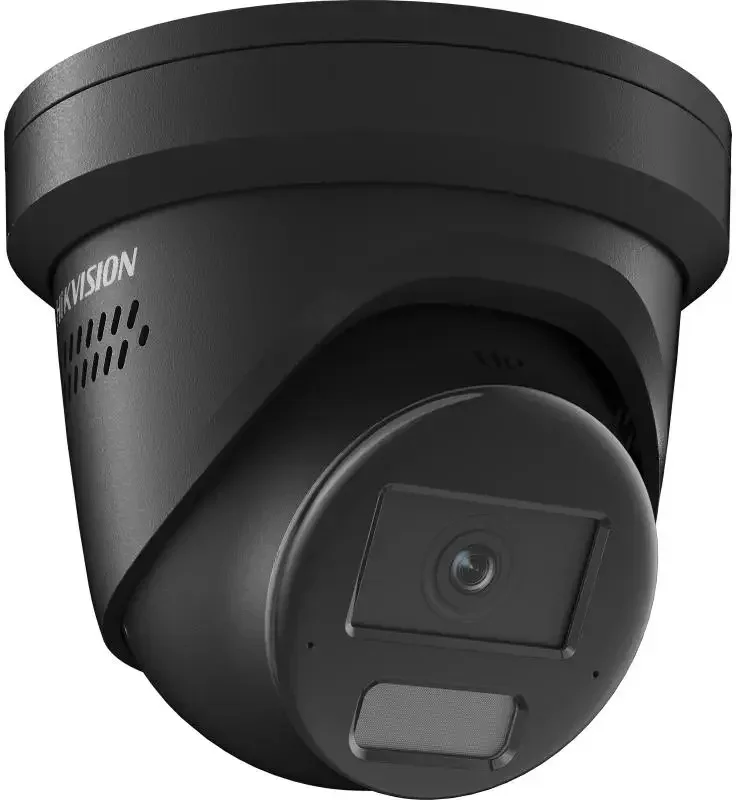

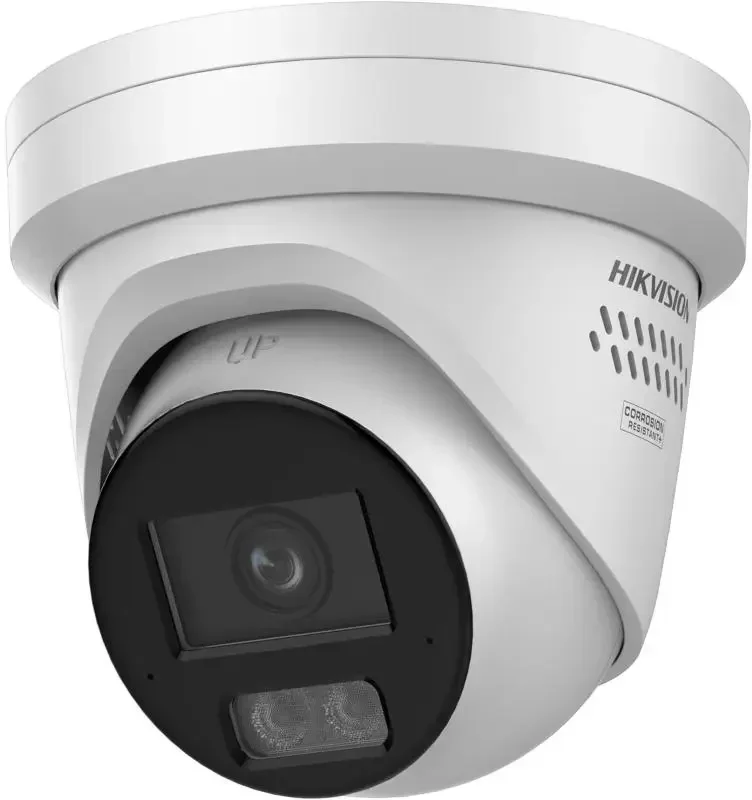

Hikvision DS-2CD2346G3-IZS2UY/SL 4 MP varifocal with DarkFighter and AcuSense
4 MP dome camera with motorized zoom, DarkFighter, AcuSense and white warning light.
- 4 MP resolution
- Motorized 2.8-4 mm varifocal lens
- Powered by DarkFighter for surveillance in low light
- AcuSense with AI-based classification of people and vehicles
- Built-in white warning light and sound alarm
- Built-in dual microphone and speaker
- 130 dB WDR
- NEMA 4X corrosion protection and IP67
Hikvision DS-2CD2346G3-IZS2UY/SL is a 4 MP network camera with motorized zoom, intelligent video analytics, and built-in audio and light warning. The camera is well suited for businesses, institutions, and outdoor areas where both high image quality and the ability to warn intruders are needed.
| Technical specifications | |
| Model | DS-2CD2346G3-IZS2UY/SL |
| Product type | 4 MP AcuSense motorized varifocal turret network camera with strobe light and audio alarm |
| Image sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 2688 × 1520 (4 MP) |
| Minimum illumination | Color: 0.001 Lux (F1.6, AGC ON), B/W: 0 Lux with IR |
| Lens | Motorized varifocal 2.8–4 mm lens |
| Aperture | F1.6 |
| Field of view | 2.8 mm: 99.3° horizontal; 4 mm: 80° horizontal |
| Supplemental lighting | Smart IR illumination up to 30 m |
| Day/Night | IR-cut filter |
| Wide Dynamic Range | 130 dB WDR |
| Image enhancement | Powered by DarkFighter, BLC, HLC and 3D DNR |
| Video compression | H.265+, H.265, H.264+, H.264 and MJPEG |
| Frame rate | Up to 30 fps at 2688 × 1520 |
| Video streams | Up to 3 streams |
| Smart analytics | Human and vehicle classification, line crossing, intrusion, region entrance, region exit, face capture and scene change detection |
| Active deterrence | White strobe light and built-in audible warning speaker |
| Built-in audio | Arrayed dual-microphone and speaker with up to 105 dB sound pressure level at 10 cm |
| External audio | 1 audio input and 1 audio output |
| Alarm interface | 1 alarm input and 1 alarm output |
| Network interface | 1 × RJ45 10/100 Mbps Ethernet port |
| Network protocols | TCP/IP, IPv4, IPv6, HTTP, HTTPS, FTP, RTP, RTSP, RTCP, DHCP, DNS, DDNS, NTP, SMTP, SNMP, PPPoE, WebSocket and ONVIF |
| Edge storage | MicroSD/SDHC/SDXC card slot, up to 512 GB |
| Power supply | 12 VDC ±25% or PoE IEEE 802.3at Class 4 |
| Maximum power consumption | 16 W via 12 VDC or 18 W via PoE |
| Housing material | Metal cover and metal main body |
| Protection rating | IP67 and NEMA 4X anti-corrosion protection |
| Operating temperature | -30°C to 60°C |
| Operating humidity | 95% or less, non-condensing |
| Dimensions | Ø138.3 × 115.4 mm |
| Weight | Approx. 780 g |
| Der tages forbehold for eventuelle fejl og ændringer i specifikationerne / Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
Den professionelle måde at levere strøm, til et PoE-kamera, er gennem netværkskablet.
På den måde behøver man kun at trække et enkelt kabel til hvert kamera - og skal ikke døje med 230V og små strømforsyninger.
Strømmen til kameraet leveres gennem netværkskablet fra enten...
- en optager med indbygget PoE, også kaldet NVR. Et typisk valg for installationer op til og med 8 kameraer.
- en PoE-switch. Populært fortalt en fordelerdåse til netværkskabler. Det typiske valg på store installationer eller hvis man ønsker fleksibel kabelføring.
- en PoE-injector. Kan kun levere strøm til et kamera.
Af samme grund følger der ikke strømforsyning med PoE-kameraer. Du kan bestille en klassisk strømforsyning her, hvis du ikke ønsker at benytte PoE.
4 MP dome camera with intelligent detection
The camera detects people and vehicles using AcuSense, which reduces false alarms and makes it easier to find relevant events in the recordings.
Clear images in dark environments
Powered by DarkFighter makes the camera well suited for surveillance in areas with limited lighting. It helps preserve image detail when the light is low.
Motorized zoom
The motorized varifocal lens can be adjusted from 2.8 to 4 mm, so the field of view can be adapted to the installation without replacing the lens.
Light and sound warning
The camera is equipped with a built-in white warning light and speaker, which can be activated in the event of an incident. This function can be used to make it clear that the area is under surveillance.
Built-in audio
The two built-in microphones capture audio in high quality, and the built-in speaker makes it possible to play sound directly from the camera.
Corrosion protection for demanding environments
The camera features NEMA 4X corrosion protection, making it suitable for areas with moderate requirements for protection against corrosion, such as coastal areas or environments affected by acid rain.
Compatibility
Compatible Hikvision accessories can be found under the Accessories tab.
Technical highlights
- Model: Hikvision DS-2CD2346G3-IZS2UY/SL
- 4 MP resolution (2688 × 1520)
- Motorized 2.8-4 mm varifocal lens
- Powered by DarkFighter
- AcuSense
- Face Capture
- 130 dB WDR
- IR range up to 30 meters
- Built-in dual microphone
- Built-in speaker
- White warning light and sound alarm
- microSD up to 512 GB
- PoE (IEEE 802.3at)
- IP67
- NEMA 4X
- ONVIF, Hik-Connect, HikCentral and iVMS-4200
Power over Ethernet
ANR
If there are network problems, the camera stores the recordings on an SD- card - and then sends them to the recorder when the connection is stable again.
Den professionelle måde at levere strøm, til et PoE-kamera, er gennem netværkskablet.
På den måde behøver man kun at trække et enkelt kabel til hvert kamera - og skal ikke døje med 230V og små strømforsyninger.
Strømmen til kameraet leveres gennem netværkskablet fra enten...
- en optager med indbygget PoE, også kaldet NVR. Et typisk valg for installationer op til og med 8 kameraer.
- en PoE-switch. Populært fortalt en fordelerdåse til netværkskabler. Det typiske valg på store installationer eller hvis man ønsker fleksibel kabelføring.
- en PoE-injector. Kan kun levere strøm til et kamera.
Af samme grund følger der ikke strømforsyning med PoE-kameraer. Du kan bestille en klassisk strømforsyning her, hvis du ikke ønsker at benytte PoE.
