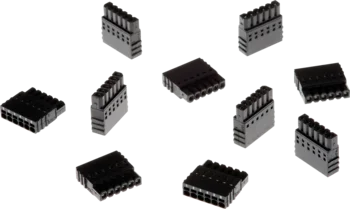

AXIS TU6009 Connector 6-pin 2.5 for AXIS F91
6-pin I/O connector for connecting external devices to AXIS F91 main units.
- 6-pin terminal connector
- 2.5 mm pitch
- For AXIS F91 main units
- For connection via the I/O port
- Supports up to 4 configurable inputs and outputs
- Supplied in a pack of 10
AXIS TU6009 is used to connect external devices to the I/O port on a compatible AXIS F91 main unit. This makes it possible to use up to four configurable inputs and outputs at the same time.
| Technical specifications | |
| Model | AXIS TU6009 Connector 6-pin 2.5 |
| Product type | Extended I/O connector |
| Pitch | 2.5 mm |
| Poles | 6 |
| Connector type | 6-pole terminal block |
| Package quantity | 10 pcs |
| Application | Connection of devices to an AXIS F91 main unit over the I/O port |
| I/O support | Up to 4 configurable inputs and outputs simultaneously |
| Compatibility | |
| Compatible products | AXIS F9111-R Mk II Main Unit; AXIS F9114-B Mk II Main Unit; AXIS F9114-R Mk II Main Unit |
| Compatible discontinued products | AXIS F9111 Main Unit; AXIS F9114 Main Unit; AXIS F9114-B Main Unit |
| Ordering information | |
| Ordering name | AXIS TU6009 Conn 6-PIN 2.5 mm, 10 pcs |
| Part number | 02795-021 |
| Axis regions | AR, AU, BR, CN, EU, IN, JP, KR, UK, US |
| Compatibility and specifications are subject to change. Errors and omissions excepted. :chatgpt-content-reference{index="0"} | |
There is no reviews yet. Be the first to write us your opinion
I/O connector for AXIS F91 main units
AXIS TU6009 Connector 6-pin 2.5 is a 6-pin terminal connector used when external equipment needs to be connected to the I/O port on an AXIS F91 main unit.
This can, for example, be useful in installations where the surveillance system needs to work together with other devices via the main unit’s inputs and outputs.
Up to 4 configurable inputs and outputs
The connector provides access to up to four configurable I/O connections on the main unit. Each connection can be configured as an input or output depending on the installation.
For AXIS F91
AXIS TU6009 is compatible with several main units in the AXIS F91 series, including AXIS F9111-R Mk II, AXIS F9114-B Mk II and AXIS F9114-R Mk II.
Supplied in a pack of 10

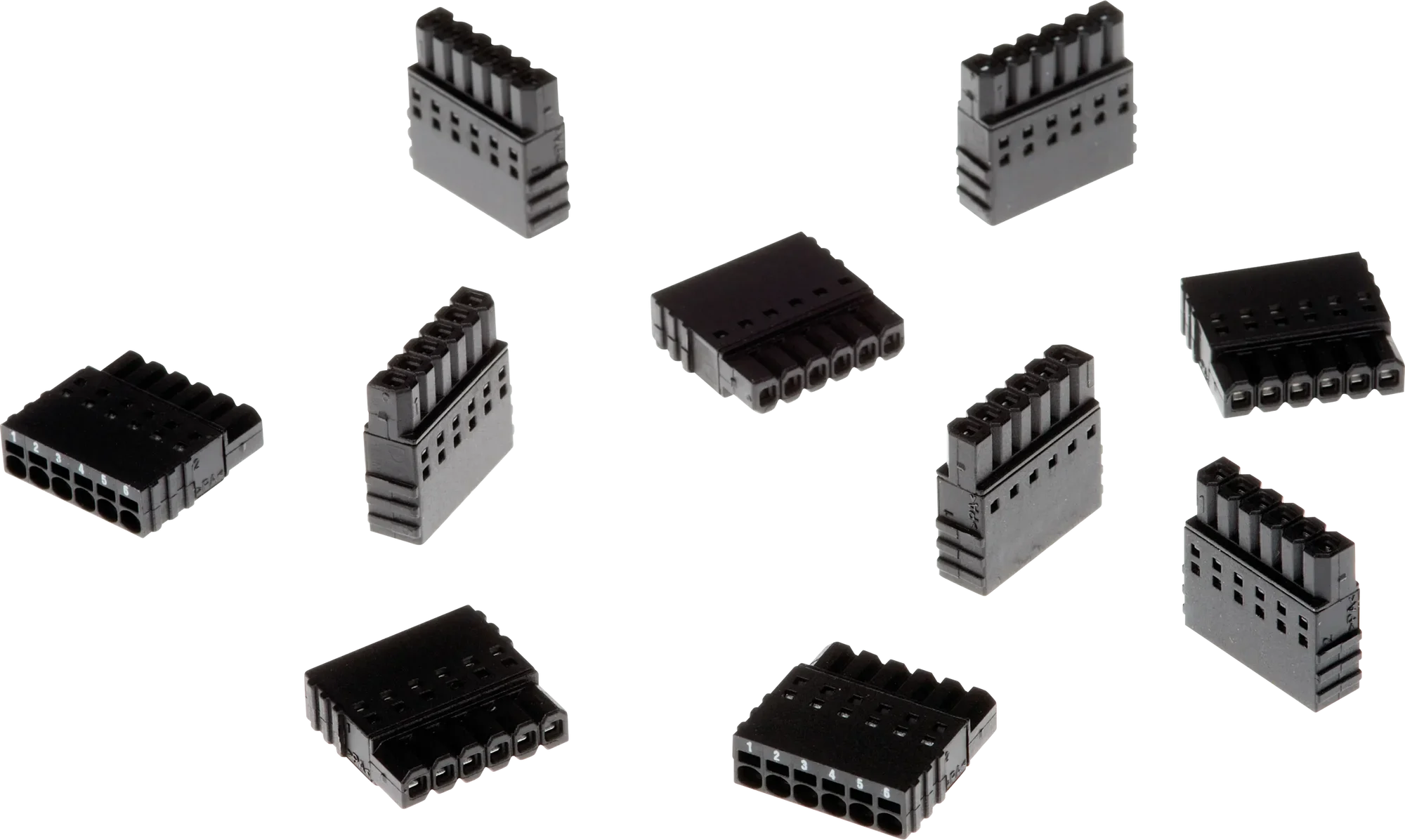

AXIS TU6009 is supplied as a pack of 10 6-pin terminal connectors.
Technical key points
- Model: AXIS TU6009 Connector 6-pin 2.5
- Product type: I/O terminal connector
- Number of pins: 6
- Pitch: 2.5 mm
- Connection: I/O port
- I/O: Up to 4 configurable inputs and outputs
- Compatible with: AXIS F9111-R Mk II
- Compatible with: AXIS F9114-B Mk II
- Compatible with: AXIS F9114-R Mk II
- Quantity in pack: 10 pcs.
- Item number: 02795-021
