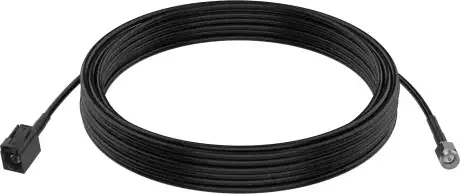

AXIS TU6007-E Cable 8 meter for AXIS F series
8-meter cable for connecting compatible AXIS F series sensor units and main units.
- 8-meter cable
- For AXIS F series modular cameras
- For indoor and outdoor use
- IP66- and IP67-rated
- 30 mm bending radius
- Compatible with AXIS F91 main units
- Compatible with AXIS F21, F72, and F41 sensor units
AXIS TU6007-E is used to connect a compatible AXIS sensor unit to the main unit. This version is 8 meters long and can be used both indoors and outdoors.
| Datasheet |
| Technical specifications | |
| Model | AXIS TU6007-E Cable 8M |
| Product type | Indoor and outdoor rated cable for AXIS F Series modular cameras |
| Cable length | 8 m (26 ft) |
| Bending radius | 30 mm (1.2 in) |
| Protection rating | IP66, IP67 |
| Application | AXIS F Series modular camera main units and sensor units |
| Compatibility | |
| Main units | AXIS F9104-B Mk II Main Unit; AXIS F9111-R Mk II Main Unit; AXIS F9114-B Mk II Main Unit; AXIS F9114-R Mk II Main Unit |
| Sensor units | AXIS F2105-RE Standard Sensor; AXIS F2107-RE Standard Sensor; AXIS F2108 Standard Sensor; AXIS F2115-R Varifocal Sensor; AXIS F2135-RE Fisheye Sensor; AXIS F2137-RE Fisheye Sensor; AXIS F2180-TE Thermal Sensor; AXIS F4105-LRE Dome Sensor; AXIS F4105-SLRE Dome Sensor; AXIS F4108 Dome Sensor; AXIS F7225-RE Pinhole Sensor |
| Compatible accessory | AXIS TU6002 Right-angle SMA Adaptor |
| Compatible discontinued products | AXIS F9104-B Main Unit; AXIS F9111 Main Unit; AXIS F9114 Main Unit; AXIS F9114-B Main Unit |
| Ordering information | |
| Ordering name | AXIS TU6007-E Cable 8M |
| Part number | 02790-001 |
| Axis regions | AR, AU, BR, CN, EU, IN, JP, KR, UK, US |
| Compatibility and specifications are subject to change. Errors and omissions excepted. :chatgpt-content-reference{index="0"} | |
There is no reviews yet. Be the first to write us your opinion
8-meter cable for modular AXIS cameras
AXIS TU6007-E Cable is designed for AXIS F series modular camera systems, where the camera sensor unit and main unit are placed separately.
With this 8-meter version, the main unit can be placed some distance away from the sensor itself, giving you more options to hide and protect the main unit.
For indoor and outdoor installation
The cable is intended for both indoor and outdoor use and is IP66- and IP67-rated.
This makes it suitable for installations where parts of the cable run are outdoors or in areas where the cable may be exposed to water and dust.
30 mm bending radius
AXIS TU6007-E has a bending radius of 30 mm. This makes it easier to route the cable in installations where space is limited.
Fits AXIS F9114-R Mk II
The cable is compatible with AXIS F91 main units, including AXIS F9114-R Mk II. Axis also states compatibility with sensor units such as AXIS F21, AXIS F72, and AXIS F41.
It is therefore used as the connection between the main unit and the selected sensor unit.
Technical key points
- Model: AXIS TU6007-E Cable
- Cable length: 8 meters
- Use: Connection between main unit and sensor unit
- Series: AXIS F Modular Camera Series
- Use: Indoor and outdoor
- Protection rating: IP66 and IP67
- Bending radius: 30 mm
- Compatibility: AXIS F91 main units
- Compatible sensors: AXIS F21, AXIS F72, and AXIS F41 series
- Item number, 8-meter single cable: 02790-001
