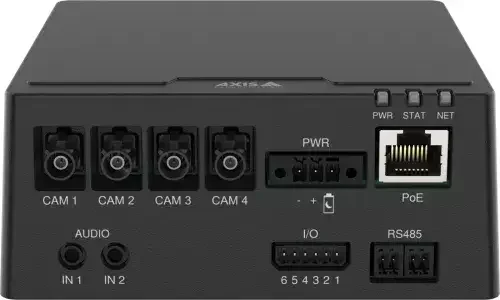

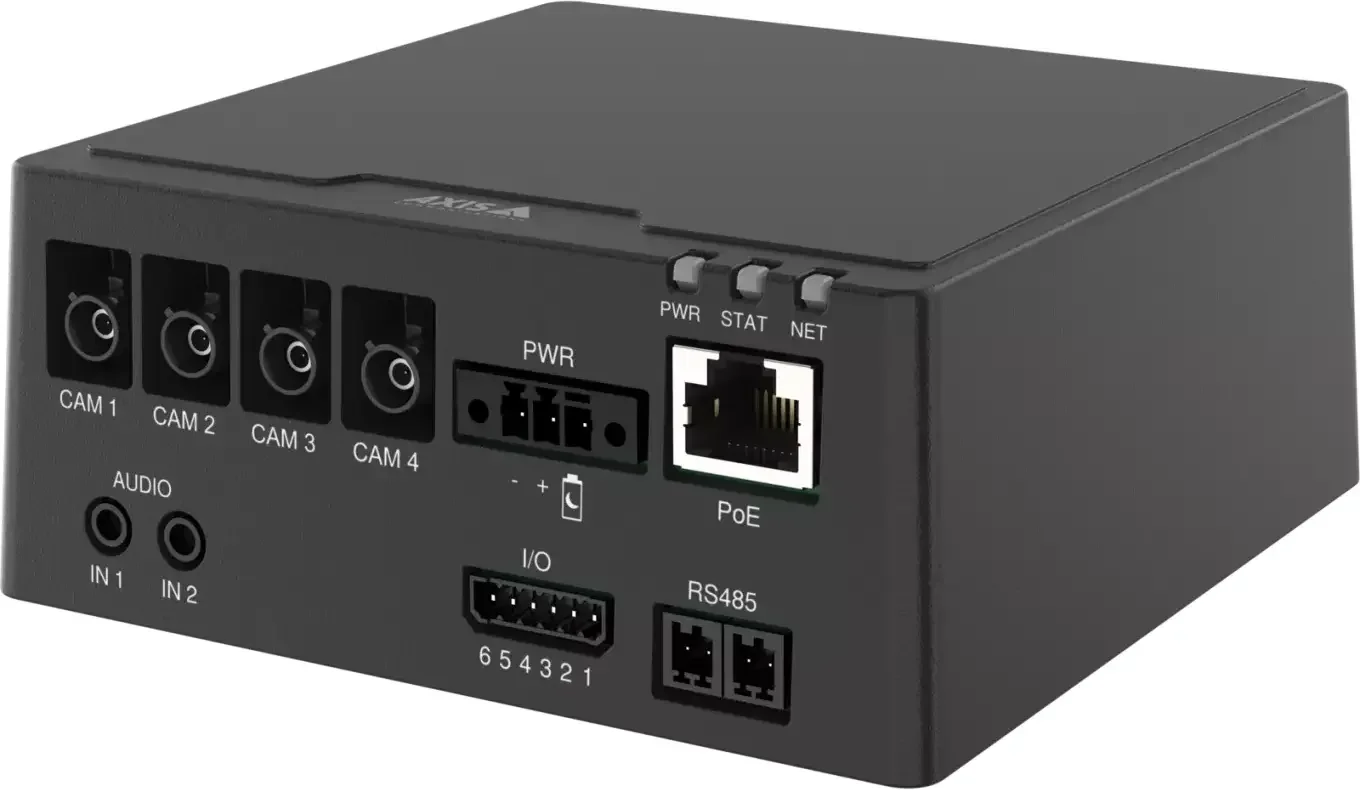

AXIS F9114-R Mk II Main Unit 4-channel main unit with AI analytics

Model: F9114-R Mk II
6.249,00  Incl. VAT
( 4.999,20  Excl. VAT )
Availability: Out of stock Out of stock
Do you have questions about the product? +45 70701009

4-channel main unit for AXIS sensor units with AI analytics, PoE, and support for up to 4K.

  • Connect up to 4 AXIS sensor units
  • Supports up to 4K depending on the sensor unit
  • Built-in AI-based video analytics
  • Detection and classification of people and vehicles
  • Designed for vehicles and environments with vibration
  • FAKRA connections for sensor units
  • Supports SD card and network storage
  • PoE or 10-48 V DC power supply
  • Axis Edge Vault for device protection
  • Option to connect external microphones

AXIS F9114-R Mk II combines up to four separate sensor units in one main unit. This makes it possible to place small camera units in different locations, while processing, recording, and analytics take place centrally in the main unit.

View full description

  • Monitoring stickers 4 pcs.
    99,00  Incl. VAT
    ( 79,20  Excl. VAT )
    Monitoring stickers 4 pcs.

    Overvågningsklistermærker med præventiv effekt til synlig sikring af bolig og virksomhed

  • Cat6 U/UTP Standard Network Cable - White
    Price from
    10,00  Incl. VAT
    ( 8,00  Excl. VAT )
    Cat6 U/UTP Standard Network Cable - White

    CAT 6 U/UTP network cable with RJ45 connectors in white

PDF
Datasheet
Technical specifications
Model AXIS F9114-R Mk II Main Unit
Product type AI-based, 4-channel main unit for high-vibration environments
System on chip ARTPEC-8
Memory 4096 MB RAM, 8192 MB Flash
Compute capabilities Deep learning processing unit (DLPU)
Video channels 4
Video
Video compression H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles; H.265 (MPEG-H Part 2/HEVC) Main Profile; Motion JPEG
Resolution Up to 3840 × 2160 (8 MP); up to 2592 × 1944 (5 MP); up to 1920 × 1080 HDTV (2 MP); up to 160 × 120
Frame rate Up to 60/50 fps (60/50 Hz) in all resolutions; up to 8.3 fps (60/50 Hz) in all resolutions, depending on sensor unit and capture mode
Video streaming Multiple, individually configurable streams in H.264, H.265 and Motion JPEG; Axis Zipstream technology in H.264 and H.265; controllable frame rate and bandwidth; VBR/ABR/MBR H.264/H.265; low latency mode; video streaming indicator
Signal-to-noise ratio >55 dB
Image settings Contrast, brightness, sharpness, white balance, tone mapping, exposure mode, exposure zones, compression, rotation 0°/90°/180°/270° including corridor format, mirroring, dynamic text and image overlay, privacy masks, polygon privacy mask
WDR mode Supported
Capture modes
2 MP sensor – 1920 × 1080 Without WDR: 30/25 fps (60/50 Hz), shutter speed 1/20000 to 1.5 s; WDR: 30/25 fps (60/50 Hz), shutter speed 1/20000 to 1.5 s
2 MP sensor – 1280 × 720 Without WDR: 60/50 fps (60/50 Hz), shutter speed 1/32500 to 1/2 s; no WDR support
5 MP sensor – 2592 × 1944 Without WDR: 20/20 fps (60/50 Hz), shutter speed 1/18000 s to 1 s; WDR: 20/20 fps (60/50 Hz), shutter speed 1/18000 s to 1 s
5 MP sensor – 2560 × 1440 Without WDR: 30/25 fps (60/50 Hz), shutter speed 1/18000 s to 1 s; WDR: 30/25 fps (60/50 Hz), shutter speed 1/18000 s to 1 s
8 MP sensor – 3840 × 2160 Without WDR: 15/12.5 fps (60/50 Hz), shutter speed 1/7500 s to 1 s; WDR: 15/12.5 fps (60/50 Hz), shutter speed 1/7500 s to 1 s
QQVGA thermal sensor 640 × 480 upscaled: 8.3 fps; 160 × 120: 8.3 fps
WDR note No WDR support for 1280 × 720. For WDR, use 1920 × 1080 and scale down.
Audio
Audio streaming One-way (simplex)
Audio inputs 2 × input for external unbalanced microphone; digital input; optional 12 V ring power; unbalanced line input
Audio encoding 24-bit LPCM; AAC-LC 8/16/32/48 kHz; G.711 PCM 8 kHz; G.726 ADPCM 8 kHz; Opus 8/16/48 kHz
Audio bit rate Configurable
Analytics
Included applications AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection, AXIS Sensor Metrics Dashboard
Applications supported on 4 channels AXIS Object Analytics
Application platform AXIS Camera Application Platform (ACAP); supports installation of third-party applications
AXIS Object Analytics object classes Humans; vehicles: cars, buses, trucks, bikes, other
AXIS Object Analytics scenarios Line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoring BETA, motion in area, motion line crossing
Single-channel scenarios Up to 10 scenarios
Multi-channel scenarios Up to 8 scenarios
AXIS Object Analytics features Triggered objects visualized with trajectories, color-coded bounding boxes and tables; polygon include/exclude areas; perspective configuration; ONVIF Motion Alarm event
AXIS Scene Metadata object classes Humans, faces, vehicles (cars, buses, trucks, bikes), license plates
AXIS Scene Metadata attributes Vehicle color, upper/lower clothing color, confidence, position
GPS over serial Protocol: NMEA 0183; port mode: RS485
Modbus over serial Protocol: Modbus RTU; port mode: RS485 2-wire
Modbus over IP Protocol: Modbus TCP; port mode: Ethernet on switch
Events
Application conditions Application
Audio conditions Audio detection
Device status conditions Above/below/within operating temperature, IP address blocked, IP address removed, live stream active, network lost, new IP address, system ready, ring power overcurrent protection, shock detected
Digital audio conditions Digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal OK
Edge storage conditions Recording ongoing, storage disruption, storage health issues detected
I/O conditions Digital input, manual trigger, virtual input
MQTT conditions MQTT Client connected, stateless
Scheduled and recurring conditions Pulse, schedule
Video conditions Average bitrate degradation, tampering, temperature detection, temperature detection in any area, temperature deviation, video source connected
I/O actions Toggle I/O once; toggle I/O while rule is active
LED actions Flash status LED; flash status LED while rule is active
MQTT actions Publish
Notification actions HTTP, HTTPS, TCP, email
Overlay action Text
Recording actions SD card, network share
Security action Erase configuration
SNMP trap actions Send; send while rule is active
Image/video clip actions FTP, SFTP, HTTP, HTTPS, network share, email
Network and system integration
Network protocols IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
API Open API for software integration including VAPIX, metadata and AXIS Camera Application Platform (ACAP)
Cloud connection One-click cloud connection
ONVIF Profile G, Profile M, Profile S, Profile T
Video management systems AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and video management software from Axis partners
Onscreen controls Privacy masks
Cybersecurity
Cybersecurity platform Axis Edge Vault
Software security Signed OS, brute force delay protection, digest authentication, OAuth 2.0 RFC6749 Client Credential Flow/OpenID Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 Level 1)
Secure keystore TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC EAL 6+), system-on-chip security (TEE)
Hardware security Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256-bit)
Network security IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall
Cybersecurity compliance ETSI EN 303 645, BSI IT Security Label, FIPS 140
Interfaces and storage
Network RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
Sensor unit connectors 4 × FAKRA
I/O 6-pin terminal block for 4 × configurable I/Os (12 VDC output); maximum load 50 mA
Audio 2 × 3.5 mm mic/line input
Serial communication 2-pin terminal block, RS485
Power connector 3-pin terminal block for 10–48 VDC input
Data transfer 1 × USB 2.0 Type A; maximum load 500 mA; supported USB class: Vendor specific
Memory card MicroSD / microSDHC / microSDXC
SD card encryption AES-XTS-Plain64 256-bit
Network storage Recording to network-attached storage (NAS)
Power and environment
Power over Ethernet IEEE 802.3af / 802.3at Type 2 Class 4
DC power 10–48 VDC
Power consumption Typical 12.7 W; maximum 25.5 W
Operating temperature -40 °C to +60 °C (-40 °F to 140 °F)
Maximum temperature according to NEMA TS 2 74 °C (165 °F)
Operating humidity 10–95% RH, non-condensing
Storage temperature -40 °C to +65 °C (-40 °F to 149 °F)
Storage humidity 5–95% RH, non-condensing
Physical specifications
Casing IP3X-rated aluminum casing
Color Black, NCS S 9000-N
Weight 680 g (1.5 lb)
Dimensions See dimension drawing in datasheet
Rugged design Designed for high-vibration environments
Required hardware
Compatible hardware AXIS TU6007-E Cable, AXIS TU6004-E Cable, AXIS TU6005 Plenum Cable, AXIS F21 Sensor Unit, AXIS F41 Sensor Unit, AXIS F7225-RE Pinhole Sensor
Box contents
Included Main unit, installation guide
Optional accessories
Accessories TU6001 Connector 3-pin, Connector A 2-pin, TU6009 Connector 6-PIN, TF9902 Surface Mount, AXIS Surveillance Cards
Compliance
Product markings FCC, UL/cUL, CE, KC, VCCI
EMC CISPR 32 Class A, CISPR 35, EN 55035, EN 55032 Class A, EN 50130-4, EN 50121-4, EN 61000-6-1, EN 61000-6-2, ECE R10 rev.06 (E-mark), RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, IEC 62236-4
Safety CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368.1:2022, UN ECE R118, IS 13252
Environmental standards IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC/EN 60529 IP3X, IEC 60721-3-5 Class 5M3, IEC/EN 61373 Category 1 Class B, NEMA TS 2 (2.2.7-2.2.9)
Network compliance IPv6 USGv6, NIST SP500-267
Sustainability
Substance control PVC free; BFR/CFR free in accordance with JEDEC/ECA Standard JS709; RoHS in accordance with EU RoHS Directive 2011/65/EU and 2015/863 and EN IEC 63000:2018; REACH in accordance with (EC) No 1907/2006
Materials Renewable carbon-based plastic content: 18% (recycled); screened for conflict minerals in accordance with OECD guidelines
Languages
Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Specifications are subject to change without notice. Errors and omissions excepted. :chatgpt-content-reference{index="0"}

There is no reviews yet. Be the first to write us your opinion

Add review:

4-channel main unit for modular video surveillance

AXIS F9114-R Mk II is the main unit in a modular AXIS camera system. Instead of a traditional camera, where the lens and electronics are combined in one unit, separate sensor units are connected to the main unit.

You can connect up to four compatible sensor units at the same time. This makes the solution well suited for installations where the cameras need to take up as little space as possible, or where several areas need to be monitored from the same main unit.



Up to 4 sensor units

The main unit has four FAKRA connections, so it can be used with up to four sensor units at the same time. It is also possible to combine different compatible sensor units in the same installation.

The sensors and main unit are connected with compatible AXIS cables, so the main unit itself can be placed somewhere other than the camera sensor.



Up to 4K resolution

The maximum resolution depends on the sensor unit connected to the main unit. With a compatible 8 MP sensor unit, up to 3840 x 2160 is supported.

2 MP and 5 MP sensor units are also supported, so the system can be adapted to the specific installation.



AI analytics directly in the main unit

AXIS F9114-R Mk II has a built-in deep learning unit, making it possible to process advanced video analytics directly in the device.

AXIS Object Analytics is included and can, among other things, detect and classify people and different types of vehicles. The analytics can be used, for example, for detection in a specific area, crossing a line, counting, and detecting loitering in an area.



People and different types of vehicles

AXIS Object Analytics can distinguish between people and vehicles such as cars, buses, trucks, and bicycles. This makes it possible to create rules that react to specific objects rather than all movement in the image.

The system can be used for line crossing, object in area, crossline counting, and occupancy in area, among other things.



Designed for environments with vibration

The main unit is designed for installations where vibration and shocks are part of everyday life. AXIS describes the design as suitable for installation inside or close to machinery, as well as in vehicles.

The FAKRA connectors also help provide a stable connection between the main unit and the sensor units in these environments.



Ignition control for vehicle installation

AXIS F9114-R Mk II supports ignition control with controlled shutdown. This function is relevant for vehicle installations, where the system needs to handle the vehicle ignition being switched off.



Axis Edge Vault

The main unit has Axis Edge Vault, AXIS' hardware-based platform for protecting the device and sensitive information.

This includes secure boot, secure storage of cryptographic keys, and signed video. Signed video makes it possible to verify that the video material has not been altered after recording.



Supports SD card and network storage

Recordings can be stored on a microSD, microSDHC, or microSDXC card directly in the main unit. Recording to network storage (NAS) is also possible.

The SD card can be encrypted if the recordings need extra protection.



Option for external microphones

The main unit has two 3.5 mm inputs for an external microphone or line-in. This makes it possible to combine video with audio in installations where that is relevant.

No built-in microphone or speaker is listed in the datasheet.



Connection of external devices

AXIS F9114-R Mk II has four configurable I/O connections that can be used for integration with external equipment. In addition, RS485 and USB are supported.

AXIS Sensor Metrics Dashboard can also collect information from connected sensors and devices. The system supports, among other things, GPS data via RS485 as well as Modbus.



PoE or DC power supply

The main unit can be powered via PoE, so power and network connection can run through the same network cable. It can also be powered with 10-48 V DC.



Sensor units purchased separately

AXIS F9114-R Mk II is a main unit and does not have a camera lens of its own. Compatible AXIS sensor units must therefore be connected to obtain video images.

The datasheet lists AXIS F21 Sensor Unit, AXIS F41 Sensor Unit, and AXIS F7225-RE Pinhole Sensor, among others, as compatible hardware.



Technical key points

  • Model: AXIS F9114-R Mk II Main Unit
  • Number of sensor channels: 4
  • Processor: ARTPEC-8
  • AI processing: Deep Learning Processing Unit (DLPU)
  • Max. resolution: Up to 3840 x 2160 with compatible 8 MP sensor
  • 5 MP: Up to 2592 x 1944
  • 2 MP: Up to 1920 x 1080
  • Video compression: H.264, H.265, and Motion JPEG
  • Analytics: AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection, and AXIS Sensor Metrics Dashboard
  • Object classification: People, cars, buses, trucks, bicycles, and other vehicle types
  • Sensor connections: 4 x FAKRA
  • Network: Gigabit Ethernet RJ45
  • Audio: 2 x 3.5 mm microphone/line input
  • I/O: 4 configurable I/O
  • Serial connection: RS485
  • USB: 1 x USB 2.0 Type A
  • Storage: microSD/microSDHC/microSDXC and NAS
  • Power supply: PoE IEEE 802.3af/802.3at or 10-48 V DC
  • Power consumption: Typical 12.7 W, max. 25.5 W
  • Operating temperature: -40 °C to 60 °C
  • Housing: Aluminum, black
  • Protection rating: IP3X
  • Weight: 680 g
  • Cybersecurity: Axis Edge Vault, secure boot, signed OS, signed video, and encrypted file system
