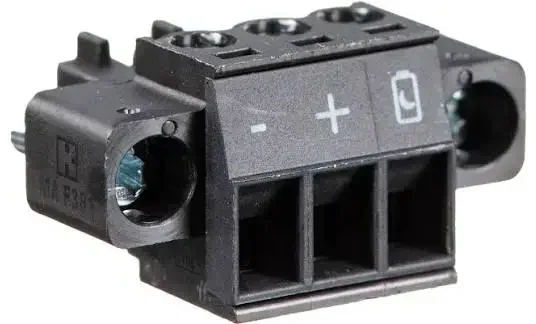

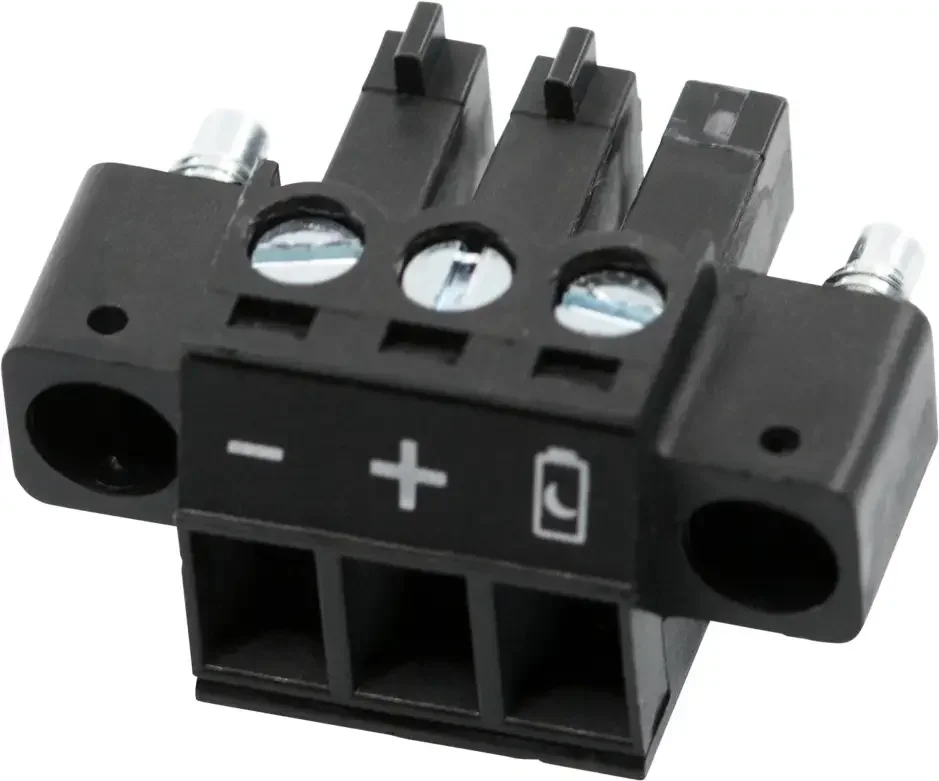

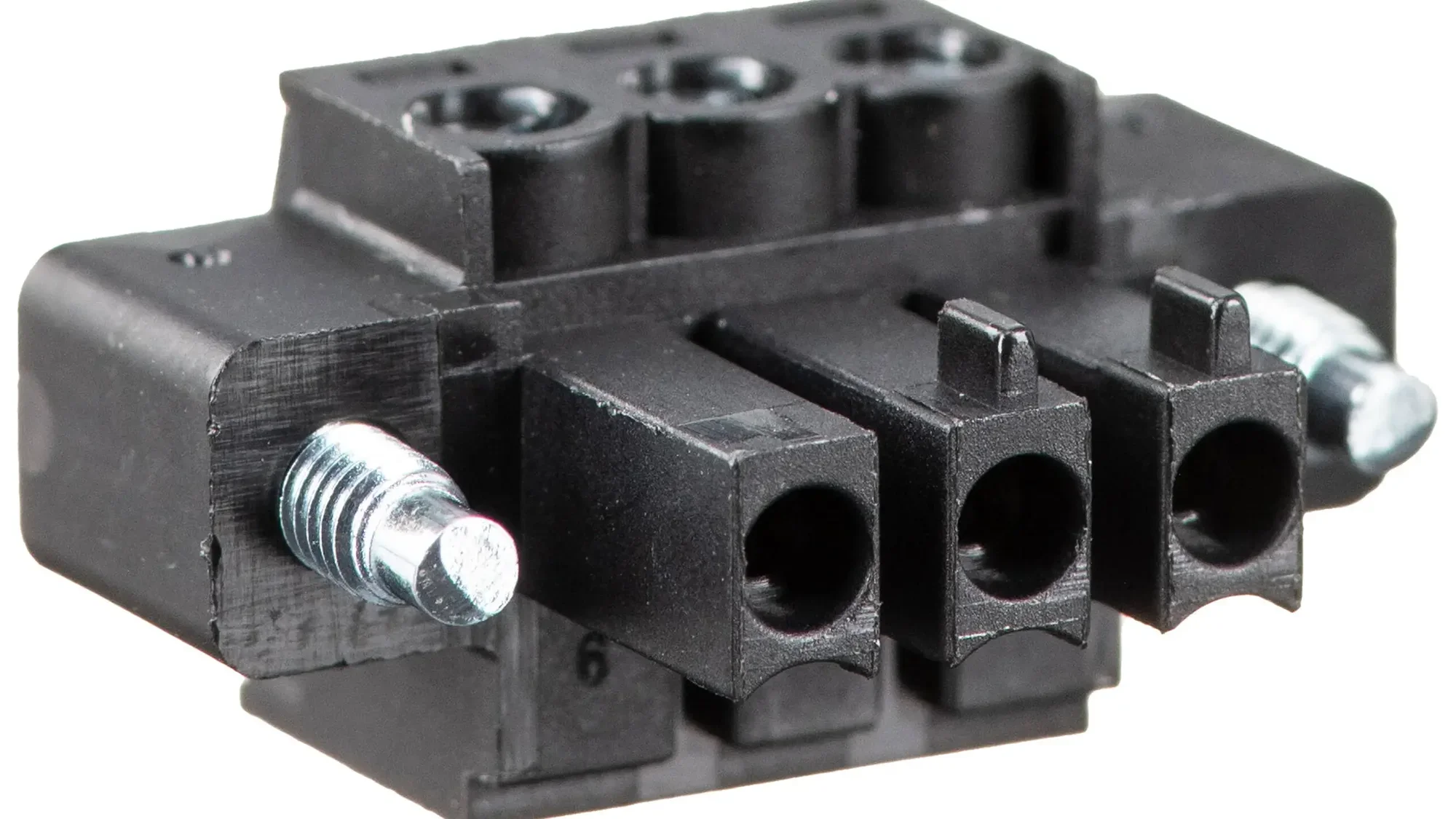

AXIS TU6001 Connector 3-pin 3.81 for AXIS F91
3-pole power connector for connecting 2nd generation AXIS F91 main units to DC power in vehicles.
- 3-pole terminal connector
- 3.81 mm pitch
- For 2nd generation AXIS F91 main units
- For DC power supply in vehicles
- Supports controlled shutdown of the main unit
- Helps prevent vehicle battery drain
- Supplied in a pack of 10
AXIS TU6001 is used when a compatible AXIS F91 main unit needs to be connected to the vehicle’s DC power. The connector makes it possible to use the main unit’s controlled shutdown function.
| Technical specifications | |
| Model | AXIS TU6001 Connector 3-pin 3.81 |
| Product type | 3-pole terminal block connector |
| Pitch | 3.81 mm |
| Poles | 3 |
| Package quantity | 10 pcs |
| Application | Connecting a 2nd generation AXIS F91 main unit to DC power onboard vehicles |
| Function | Allows AXIS F91 main unit to shut down after a defined period when the vehicle engine is turned off |
| Compatibility | |
| Compatible products | AXIS F9104-B Mk II Main Unit; AXIS F9111-R Mk II Main Unit; AXIS F9114-B Mk II Main Unit; AXIS F9114-R Mk II Main Unit |
| Compatible discontinued products | AXIS F9104-B Main Unit; AXIS F9111 Main Unit; AXIS F9114 Main Unit; AXIS F9114-B Main Unit |
| Ordering information | |
| Ordering name | AXIS TU6001 Connector 3-Pin 3.81, 10 pcs |
| Part number | 02464-021 |
| Axis regions | AR, AU, BR, CN, EU, IN, JP, KR, UK, US |
| Compatibility and specifications are subject to change. Errors and omissions excepted. :chatgpt-content-reference{index="0"} | |
There is no reviews yet. Be the first to write us your opinion
Power connector for AXIS F91 in vehicles
AXIS TU6001 Connector 3-pin 3.81 is a 3-pole terminal connector developed for the 2nd generation of AXIS F91 main units.
It is used for installations in vehicles, where the main unit needs to be connected to the vehicle’s DC power supply.
Controlled shutdown
When connected correctly, the AXIS F91 main unit can detect when the engine is turned off and shut down after a defined period.
This helps prevent the surveillance system from continuing to draw power and draining the vehicle battery after the engine has been switched off.
For 2nd generation AXIS F91

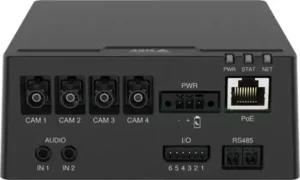

The connector is designed for the 2nd generation of the AXIS F91 series. It is compatible with AXIS F9111-R Mk II and AXIS F9114-R Mk II, among others.
Axis also lists AXIS F9104-B Mk II and AXIS F9114-B Mk II as compatible products.
Sold in packs of 10
AXIS TU6001 is sold as a pack of 10 3-pole terminal connectors.
Technical key points
- Model: AXIS TU6001 Connector 3-pin 3.81
- Product type: Terminal connector
- Number of poles: 3
- Pitch: 3.81 mm
- Use: DC power connection in vehicles
- Compatibility: 2nd generation AXIS F91 main units
- Quantity in pack: 10 pcs.
- Item number: 02464-021
