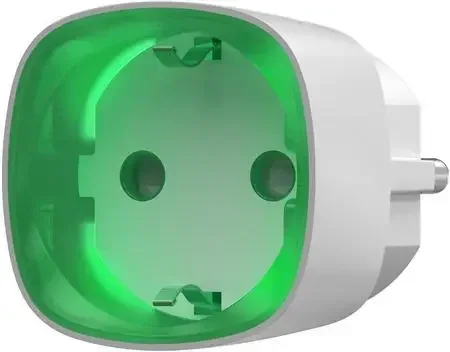

Ajax Socket - Smart Socket with Power Monitoring

Remote control of electrical appliances

You can turn connected appliances on and off directly in the Ajax app, no matter where you are. That makes Socket practical for both convenience and security. For example, you can switch off an iron, turn on heating in the summer house, or control lighting automatically.

Automatic scenarios

Socket can be part of automations together with the rest of the Ajax system. For example, you can:

• Automatically turn off selected appliances when the alarm is activated
• Turn on lights on alarm or motion
• Start appliances on a schedule
• Control devices via Ajax Button or LightSwitch
• Automate based on temperature, humidity, or CO₂ level

Power consumption monitoring

Socket monitors power consumption in real time and shows voltage, current, power, and energy consumption directly in the Ajax app. The built-in LED ring changes color depending on the load, so you can quickly see how much power the connected appliance is using.

Protection of connected appliances

The smart socket protects equipment against overload, voltage fluctuations, and overheating. If power consumption or temperature exceeds the allowed values, Socket automatically cuts the power.

Child safety

Socket is equipped with internal protective shutters that make it difficult to insert objects such as screwdrivers, scissors, or similar items into the socket. At the same time, the design helps protect against dust and minor splashes of water.

Wireless communication

Socket communicates via the Ajax Jeweller radio protocol, which provides a stable and encrypted connection between the socket and the Ajax hub. The system constantly monitors the connection and alerts you in case of signal loss or attempted interference.

Easy installation

Socket plugs directly into a standard Type F Schuko socket. It is then added to the Ajax system by scanning the QR code in the app. No advanced setup is required.

Suitable for home and business

Socket can be used in private homes, summer houses, offices, and smaller business setups where remote control or power consumption monitoring is needed.

Technical key points

• Product type: Smart socket with energy metering
• Socket type: Type F (Schuko)
• Power supply: 110–230 V~, 50/60 Hz
• Maximum continuous load: 11 A
• Maximum load: Up to 2.5 kW at 230 V~
• Own power consumption: Up to 1 W
• Overload protection: Yes
• Overvoltage protection: Yes
• Temperature protection: Automatic shutdown above +85 °C
• Power monitoring: Measurement of voltage, current, power, and energy consumption
• Operating modes: Pulse and bistable
• Adjustable pulse time: 1–255 seconds
• Communication: Jeweller
• Wireless range: Up to 1,000 m in an open area
• Encrypted communication: Yes
• Frequency hopping: Yes
• App control: Yes
• Automation: By schedule, alarm, temperature, humidity, CO₂, Button, or LightSwitch
• Child safety: Internal protective shutters
• Use: Indoor only
• Protection rating: IP20
• Operating temperature: 0 °C to +40 °C
• Humidity: Up to 75% non-condensing
• Dimensions: 45 × 45 × 65.5 mm
• Weight: 58 g

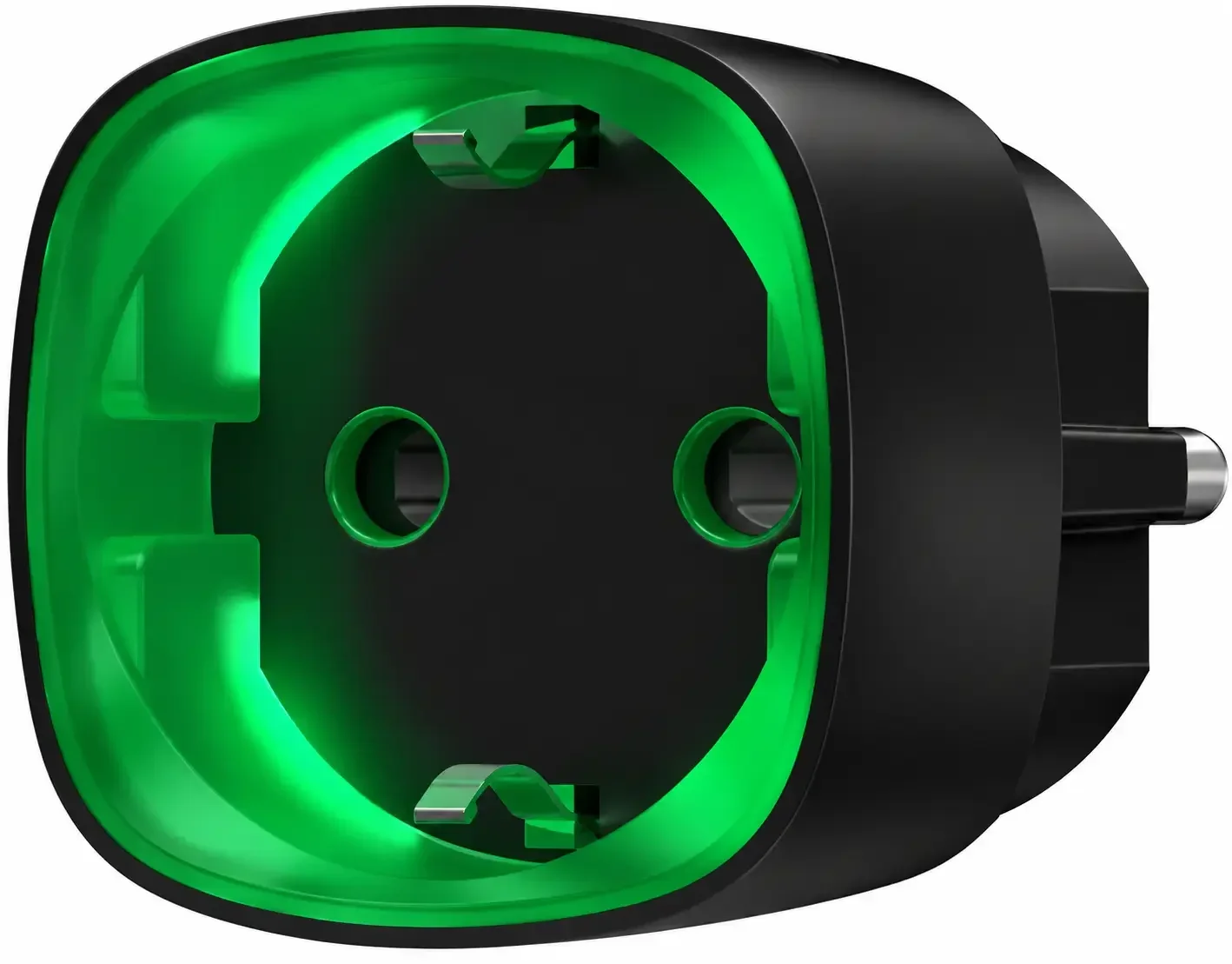

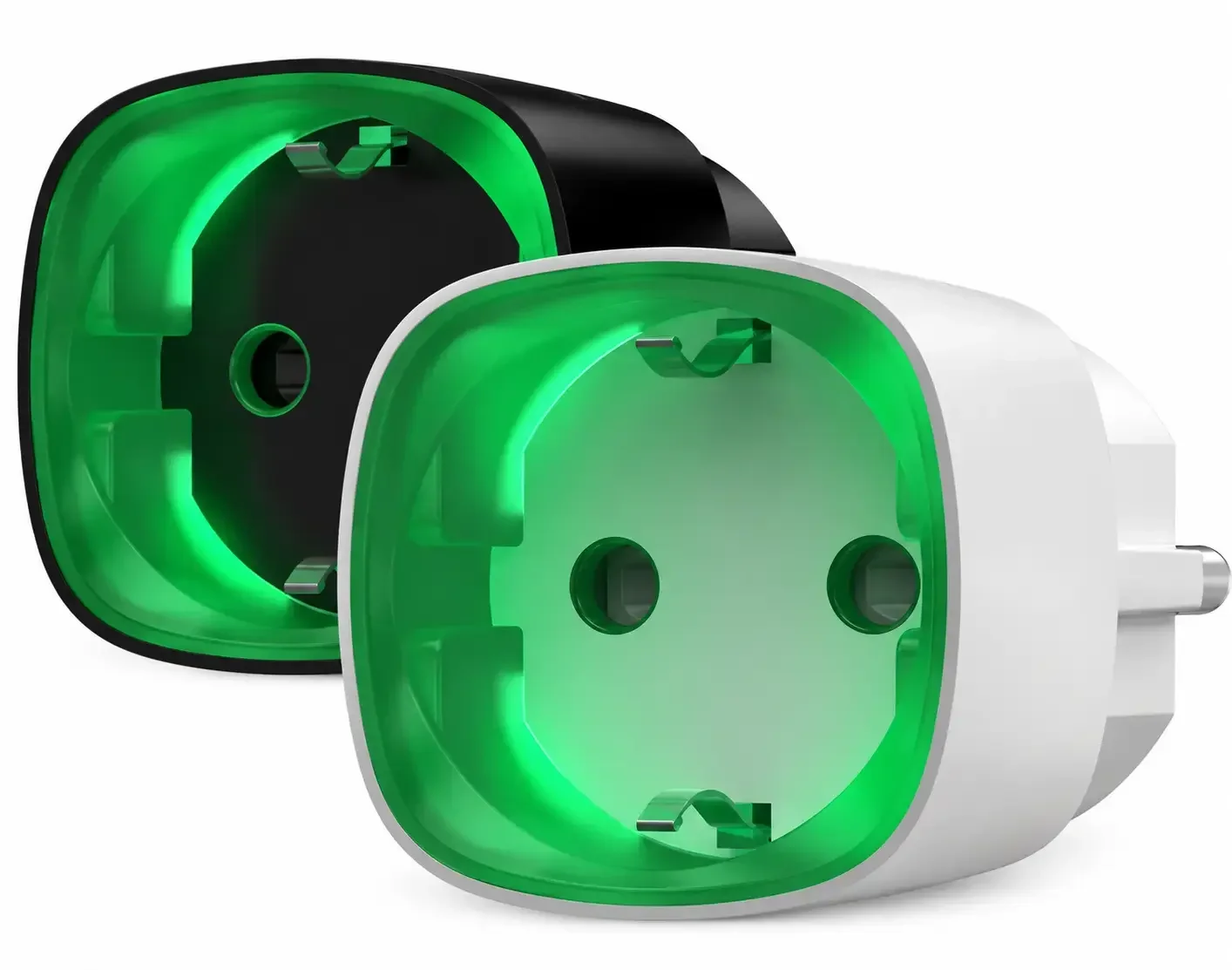

• Colors: White, black

Subject to any errors and specification changes
