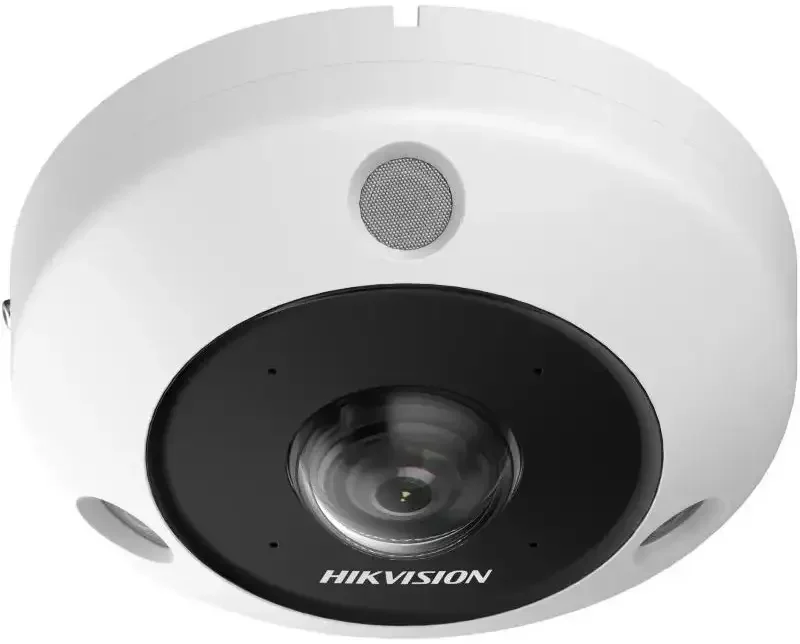

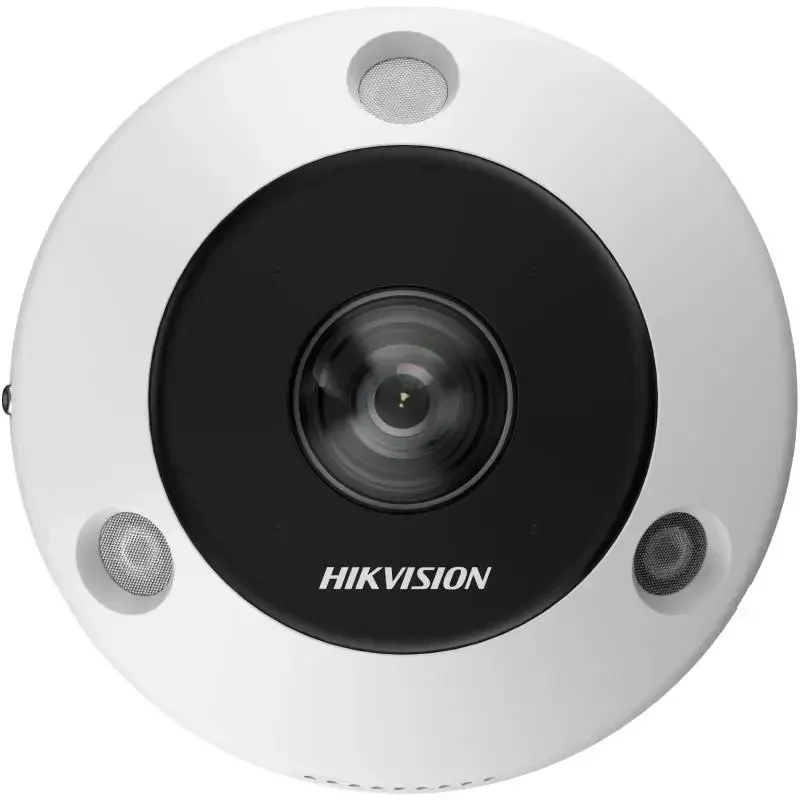

Hikvision DS-2CD6365G1-IVS 6MP fisheye 360°

360° fisheye camera for monitoring entire areas

This camera is designed for installations where you want an overview of an entire area from a single mounting point. For example, it’s ideal for shops, warehouses, offices or receptions, giving you complete coverage without having to install multiple cameras.

The camera is typically mounted on the ceiling, where the fisheye lens captures the entire area around the camera.

6 MP resolution

The camera delivers 6 MP resolution, giving you a sharp image of the entire monitored area. High resolution is especially important for fisheye cameras, since the image is often split into several views.

This means you can still clearly see people, movement and details even when the image is divided into multiple virtual camera views.

360° panoramic overview

The fisheye lens gives you a full 360° view of the area around the camera. When mounted on the ceiling, you can see the whole room in a single capture.
This allows you to monitor larger areas without blind spots and without installing multiple cameras.

Dewarping — conversion to regular camera views

A fisheye camera records a circular image, but the surveillance system can automatically convert the image into more traditional views.
For example, you can choose a panorama view or split the image into several virtual camera views that behave like regular cameras.
This lets you monitor multiple areas at once, even though the camera is in a single location.

Multiple view types in the surveillance system

The camera supports many different view types so you can adapt monitoring to the area.
For example, you can view the entire area as a panorama, or split the image into multiple virtual views where each view focuses on a specific zone.
This gives you great flexibility because you can change the view without moving the camera itself.

Heatmap and customer flow analysis

The camera can analyze how people move through the area. The feature can be used for heatmaps, where the system shows which areas are visited most.
This can give you valuable insights into customer flows in stores or how people move within a space.
The camera can also be used for people counting and queue analysis, so you can see how many people move through certain zones.

Built-in microphone and speaker

The camera has both a built-in microphone and speaker. That means you can hear what’s happening in the area and also speak through the camera.
It can be used for communication in receptions, shops or access areas.

Built-in IR light for night surveillance

The camera has three built-in IR light sources, allowing monitoring in the dark.
The IR light can illuminate the area up to approximately 15 meters from the camera, so you can still see what’s happening even when there’s no regular lighting in the room.

Built-in analytics features

The camera supports several analytics functions directly on the device, including people counting, queue analysis and heatmap features.
In addition, the camera can detect events such as line crossing, intrusion into an area, abandoned objects and object removal.
This allows you to use the camera both for security and for analyzing how areas are used.

Installation and power

The camera can be powered via PoE through the network cable. This means you only need one cable for both power and network.
That makes installation simpler and gives you greater flexibility in camera placement.

Accessories

Under the accessories tab you can see which mounts and accessories fit the camera.

Key technical points

• Model: DS-2CD6365G1-IVS
• Camera type: Fisheye
• Resolution: 6 MP
• Lens: 1.16 mm
• Field of view: 180° × 180°
• IR range: up to approx. 15 m
• Built-in microphone: yes, 4 units
• Built-in speaker: yes
• Storage: microSD card up to 256 GB
• Network: RJ45 10/100/1000
• Alarm I/O: 2 in, 2 out
• Power: 12 V DC or PoE
• Protection: IP67, IK10
• Dimensions: Ø 140.3 mm × 59.4 mm
• Weight: approx. 715 g
