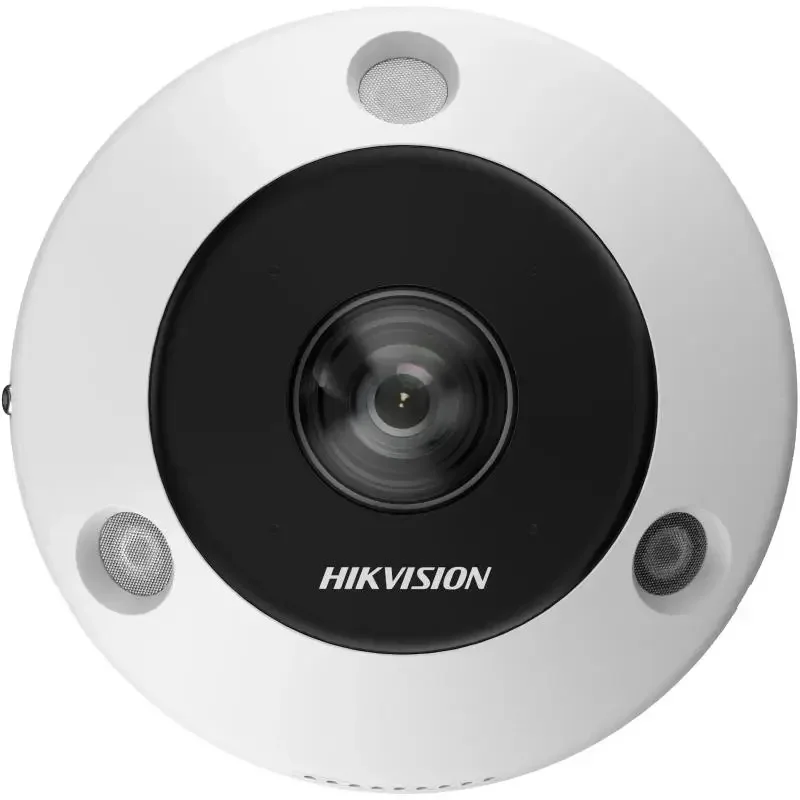

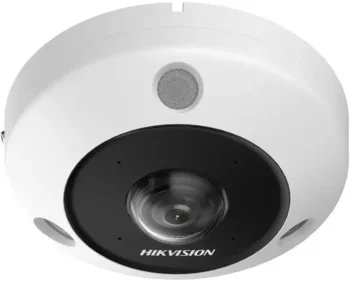

Hikvision DS-2CD63C5G1-IVS 12MP fisheye 360°

360° fisheye camera for monitoring whole rooms

This camera is designed for installations where you want an overview of an entire area from a single mounting point. For example, it’s ideal for stores, receptions, storage areas or offices, giving you a complete view of the room without needing multiple cameras.

The camera is typically ceiling-mounted, where the round fisheye lens captures the entire area around the camera.

12 MP resolution

The camera delivers 12 MP resolution, giving you a very detailed image of the entire surveillance area. High resolution is especially important for fisheye cameras because the image can later be split into multiple views.

That means you still get a clear and usable image even when the system divides the image into several virtual camera views.

360° panoramic overview

The fisheye lens gives you a full 360° overview of the area around the camera. When mounted on the ceiling, you can see the whole room in a single recording.
This lets you monitor large areas without blind spots and without installing multiple cameras.

Dewarping — converting to regular camera views

Fisheye cameras capture a round image, but the surveillance system can automatically convert the image into more traditional views.
You can choose panorama view, split view or virtual PTZ views, where the image is divided into several camera angles.
This lets you see multiple areas at once even though the camera is physically in one place.

Multiple view types in the surveillance system

The camera supports many different view types so you can adapt monitoring to the area.
For example, use panorama view to see the entire area, or split the image into multiple virtual camera views that each focus on a specific zone.
This gives you great flexibility in the surveillance system because you can change views without moving the camera itself.

Heatmap and customer flow analysis

The camera can analyze how people move in an area. The feature can be used for heatmaps that show which areas are visited most.
This provides valuable insight into customer flows in stores or how people move through a space.
The camera can also be used for people counting and queue analysis, letting you see how many people move through specific areas.

Built-in microphone and speaker

The camera has both a built-in microphone and speaker. That means you can hear what’s happening in the area and also speak through the camera.
This can be useful for communication in receptions, stores or access areas.

Built-in IR light for night surveillance

The camera has three built-in IR light sources, enabling monitoring in the dark.
The IR light can illuminate the area up to approximately 15 meters from the camera, so you can still see what’s happening even when there’s no regular light in the room.

Built-in analytics

The camera supports several analytics functions directly on the device. This includes people counting, queue analysis and heatmap features.
In addition, the camera can detect events like line crossing, intrusion into an area, abandoned objects and object removal.
This lets you use the camera both for security and for analyzing how areas are used.

Installation and power

The camera can be powered via PoE through the network cable. That means you only need one cable for both power and network.
This simplifies installation and gives you more flexibility in camera placement.

Accessories

Under the accessories tab you can see which mounts and accessories fit the camera.

Technical highlights

• Model: DS-2CD63C5G1-IVS
• Camera type: Fisheye
• Resolution: 12 MP
• Lens: 1.29 mm
• Viewing angle: 180° × 180°
• IR range: up to approx. 15 m
• Built-in microphone: yes, 4 pcs
• Built-in speaker: yes
• Storage: microSD card up to 256 GB
• Network: RJ45 10/100/1000
• Alarm I/O: 2 in, 2 out
• Power: 12 V DC or PoE
• Protection: IP67, IK10
• Dimensions: Ø 140.3 mm × 59.4 mm
• Weight: approx. 715 g
