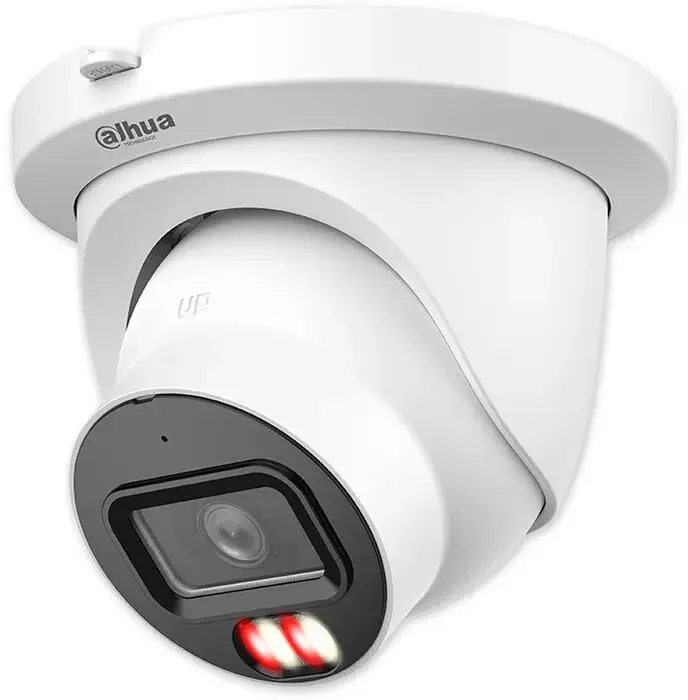

Dahua IPC-HDW5559TM-ASE-IL 5MP WizMind Turret med mikrofon
Model:
HDW5559TM-ASE-IL(W)
2.815,00
Incl. VAT
(
2.252,00
Excl. VAT
)
5 MP WizMind kamera med IR og LED, AcuPick, indbygget mikrofon og avanceret videoanalyse.
- 5 MP opløsning med op til 30 billeder i sekundet
- IR og varmt LED lys op til 50 meter
- Menneske, dyr og køretøjsdetektering
- AcuPick søgning med kompatibel Dahua optager
- Ansigtsdetektering og video metadata
- Persontælling, køanalyse og heatmap
- Indbygget mikrofon samt lydindgang og lydudgang
- Alarmindgang og alarmudgang
- microSD kort op til 1 TB
- PoE+, ePoE eller 12 V DC
- IP67 og metalkabinet
Med Dahua DH-IPC-HDW5559TM-ASE-IL får du et 5 MP netværkskamera med funktioner til områdesikring, søgning efter personer og køretøjer, persontælling, ansigtsdetektering og analyse af videodata. Kameraet har både IR og varmt LED lys, indbygget mikrofon, plads til et microSD kort på op til 1 TB samt tilslutninger til eksternt lyd- og alarmudstyr.
| Technical specifications | |
| Model | IPC-HDW5559TM-ASE-IL |
| Product type | 5 MP Smart Dual Light Fixed-focal Eyeball WizMind Network Camera |
| Image sensor | 1/2.7" CMOS Progressive Scan |
| Maximum resolution | 2960 × 1668 (5 MP) |
| Maximum frame rate | Up to 25/30 fps at 5 MP |
| Minimum illumination | 0.0009 lux (colour), 0.0005 lux (B/W), 0 lux with illuminator |
| Lens | Fixed focal lens (2.8 mm, 3.6 mm or 6 mm) |
| Aperture | F1.6 |
| Field of view | 2.8 mm: 108.4° (H), 60° (V), 127.1° (D) 3.6 mm: 90.3° (H), 47.8° (V), 108.6° (D) 6 mm: 56° (H), 30.3° (V), 65.4° (D) |
| DORI distance | 2.8 mm: Detect 61.6 m, Observe 24.6 m, Recognize 12.3 m, Identify 6.2 m 3.6 mm: Detect 78.0 m, Observe 31.2 m, Recognize 15.6 m, Identify 7.8 m 6 mm: Detect 124.0 m, Observe 49.6 m, Recognize 24.8 m, Identify 12.4 m |
| Supplemental lighting | Smart Dual Light with IR and warm white light |
| IR range | Up to 50 m |
| Warm light range | Up to 50 m |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG, Smart H.265+, Smart H.264+, AI H.265 and AI H.264 |
| Video streams | 4 simultaneous streams |
| Video bitrate | 3 Kbps to 16384 Kbps |
| Wide Dynamic Range | 120 dB WDR |
| Image enhancement | 3D NR, BLC, HLC, Smart Illumination, Defog, SSA, LDC and image rotation |
| Smart analytics | Xinghan AI, AcuPick, SMD 4.0, Video Metadata, Face Detection, Perimeter Protection, Heat Map and People Counting |
| Perimeter protection | Tripwire, intrusion, fast moving, loitering, people gathering, parking detection and stay detection with human, vehicle and animal classification |
| People counting | Tripwire counting, area counting, queue management and statistical reports |
| Face detection | Supported with face attributes extraction and optimized snapshots |
| Audio | Built-in microphone, 1 audio input and 1 audio output |
| Audio compression | G.711a, G.711Mu, PCM, G.726 and G.723 |
| Alarm interface | 1 alarm input and 1 alarm output |
| Storage | MicroSD card slot supporting up to 1 TB, NAS, FTP and SFTP |
| Network interface | 1 × RJ45 10/100 Mbps Ethernet |
| Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, FTP, SFTP, SMTP, DHCP, DNS, DDNS, QoS, SNMP, NTP, PPPoE, ONVIF, CGI and more |
| ONVIF support | Profiles S, G, T and M |
| Maximum users | 20 simultaneous users |
| Power supply | 12 VDC ±30%, PoE+ (IEEE 802.3at) and ePoE |
| Power consumption | Typical: 4.2 W (12 VDC) / 6.3 W (PoE) Maximum: 13.3 W (12 VDC) / 15.6 W (PoE) |
| Protection rating | IP67 |
| Operating temperature | -40 °C to +60 °C |
| Operating humidity | Up to 95% RH (non-condensing) |
| Housing material | Metal |
| Dimensions | Ø122 × 105.5 mm |
| Weight | 530 g |
| Compatible accessories | DH-PFA109, DH-PFA130-E, DH-PFA150, DH-PFA151, DH-PFA156, DH-PFB2203W, DH-PFB220C, DH-PFB305W, G3416GW, PFM900-E and DHI-TF-P100/1TB |
| Der tages forbehold for eventuelle fejl og ændringer i specifikationerne / Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
Power over Ethernet
Do like the professionals. POE means that only one cable is needed for the camera. The camera gets power through the network cable, typically from a recorder with built-in PoE, or from a POE switch.
Audio Trigger
Univiews cameras with microphone can also respond to what they don't see. For example, it can be cries or screaming on a women's toilet if you place the camera outside the door.
