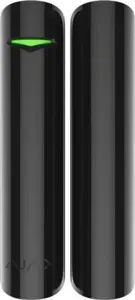

Ajax DoorProtect - Wireless Door and Window Contact
Ajax door and window contact in a sleek design
- Triggers an alarm if someone opens a window
- Can be armed from your phone
- You can move around the house while it's armed
- Very easy to install
With magnetic contacts on all doors and windows, you can arm the alarm while you sleep
| Technical specifications | |
| Product type | Wireless opening detector with reed switch |
| Compatibility | Compatible with Ajax hubs and radio signal range extenders |
| Communication technology | Jeweller proprietary wireless technology Two-way communication Block encryption with dynamic key Frequency hopping against interception and jamming |
| Frequency bands | 866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz Depends on sales region |
| Radio signal range | Up to 1200 m in open space |
| Maximum effective radiated power | Up to 20 mW |
| Radio signal modulation | GFSK |
| Sensitive element | 1 reed switch |
| Magnets | Small and large magnet included Small magnet operates up to 1 cm from the detector Large magnet operates up to 2 cm from the detector |
| Opening detection | Detects opening of doors, windows, skylights, and similar entry points |
| False alarm prevention | Protection against reed switch chattering Ignores vibrations lasting up to 0.15 seconds |
| Additional detector input | Input for third-party wired detector with normally closed NC contact type The connected detector must have separate power supply if required |
| Chime feature | Can trigger an Ajax siren sound when the system is disarmed and the detector is opened Requires at least one Ajax siren in the system |
| Installation recommendations | Designed for indoor use only Do not install using both magnets at the same time Attach the magnet to the moving part of the door or window on the right side of the detector |
| Sabotage protection | Tamper alarm on removal from surface or mounting panel Device authentication against spoofing |
| Communication loss detection | After 36 seconds Depends on Jeweller or Jeweller/Fibra settings |
| Power supply | 1 × CR123A battery Pre-installed Type C |
| Battery life | Up to 7 years |
| Operating voltage | 3 V nominal |
| Current consumption | Quiescent current 17.5 μA at nominal voltage Maximum current 21.4 mA at nominal voltage |
| Battery capacity | 1600 mAh End-of-life battery capacity 300 mAh |
| Battery voltage thresholds | Low battery voltage 2.5 V Low battery recovery voltage 2.7 V End-of-life battery voltage 2.1 V |
| Battery manufacturer | Huiderui |
| Operating temperature | From −10 °C to +40 °C |
| Operating humidity | Up to 75% |
| Protection class | IP50 |
| Dimensions | Detector: 90 × 20 × 20 mm Large magnet: 90 × 20 × 20 mm Small magnet: 55 × 11 × 6 mm |
| Weight | Detector: 29 g |
| Colours | Black White |
| Package contents | DoorProtect Jeweller SmartBracket mounting panel CR123A battery Large magnet Small magnet Outside-mounted terminal clamp Installation kit Quick start guide |
| Warranty | 24 months |
| Reservations are made for possible errors and changes in the specifications | |
There is no reviews yet. Be the first to write us your opinion
Here you can see the compatibility between the various units and Hubs from Ajax
https://ajax.systems/tools/devices-compatibility/
Ajax Doorprotect der beregnet til at sikre døre og vinduer
Med Ajax DoorProtect får du en stabil trådløs sensor, der registrerer, når en dør eller et vindue åbnes. Sensoren sender en besked til Hubben og giver øjeblikkelig besked til din telefon, hvis nogen åbner en dør eller et vindue, mens alarmen er aktiveret.
Arm the alarm while you're at home
If you've installed magnetic contacts on doors and windows, you can set up what's called perimeter protection. That means you can arm the 'perimeter' without all motion sensors triggering an alarm. So you can arm the system at night so it detects if a door or window is opened — without activating the motion sensors.
How does the sensor work?
DoorProtect består af to dele: en sensor og en magnet. Når døren eller vinduet lukkes, registrerer sensoren magnetfeltet. Hvis døren eller vinduet åbnes, brydes feltet, og sensoren sender en alarm til din Ajax-hub.
- Use the large magnet (range up to 2 cm) if you have a wider door frame
- Use the small magnet (range up to 1 cm) if you prefer a tighter fit
Easy to install
DoorProtect er super nem at installere. Scan QR-koden i Ajax-appen, og placer sensoren på en dør eller et vindue.
Easy to configure
Once the sensor is installed, you can easily customize its functions directly in the app so it behaves the way you want. For example, you can set a delay so the alarm only activates a few seconds after the door opens — giving you time to turn the alarm off when you come home.
You can also choose whether the sensor should always be active or only when the alarm is armed. If the sensor detects an opening, you'll be notified immediately via push notifications, SMS, or calls, depending on the hub and your settings
Range
DoorProtect kommunikerer trådløst med hubben via Ajax Jeweller-teknologi og har en rækkevidde på op til 1.200 meter i åbent terræn.
Battery life
The sensor comes with a CR123A battery that can last up to 7 years, depending on usage and temperature. If it's placed in very cold conditions, or on a door that's used frequently, the battery life will be shorter. It also depends on the quality of the battery
Tamper protection
If someone tries to remove the sensor, it will immediately send a tamper alarm to the hub.
Dimensions and weight
- Size: 20 × 90 mm
- Weight: 29 g
- Available in colors: White or black
Which hubs does it work with?
DoorProtect er kompatibel med alle Ajax-hubs og også med Ajax signalforstærkere (ReX)
Technical information
- Up to 2,000 m range in open terrain (line of sight) or across multiple floors
- Can be used with third-party products (via UartBridge and ocBridge Plus module)
- User authorization to protect against fraud
- Tamper alarm
- The detector has two-way communication with the Hub, allowing periodic tests
- Detector reporting interval can be adjusted to reply every 12–300 seconds
- Jamming detection / frequency hopping
- Uses an encrypted connection
- The reed switch can switch over 1,000,000 times without failing
- It regulates power consumption based on the distance to the hub, saving energy
- The detector has a battery life of up to seven years (with a ping once per minute)
- It mounts with SmartBracket so you don't have to take the detector apart.
- The magnet is strong and can be installed up to 2 cm from the main unit.
- Easy to add to the Ajax Hub
