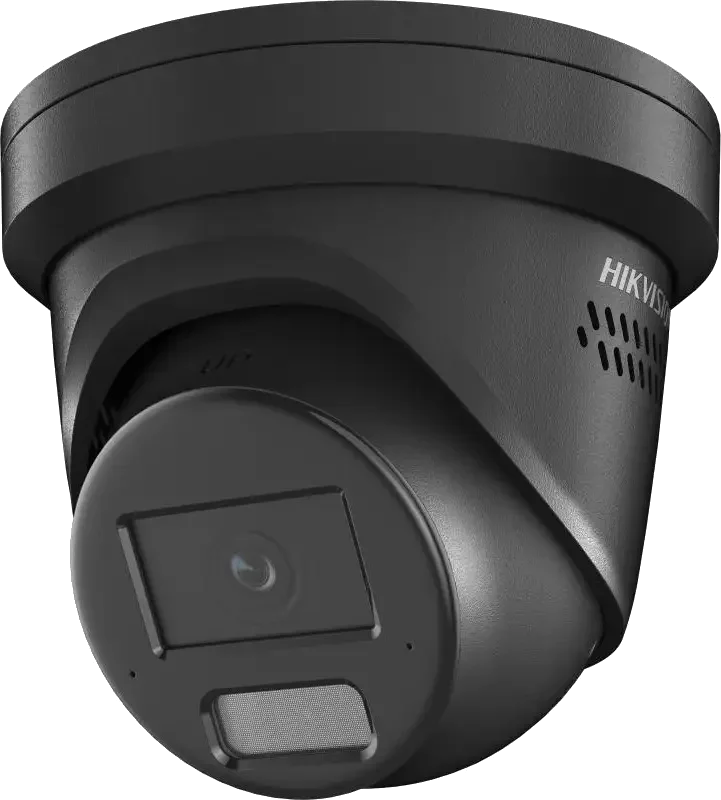

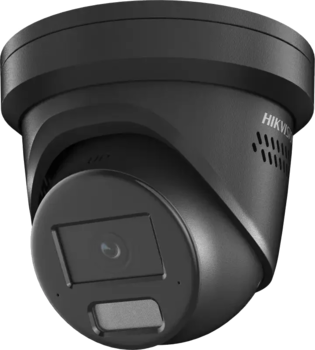

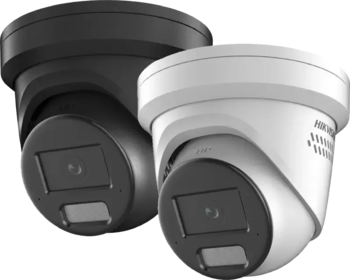

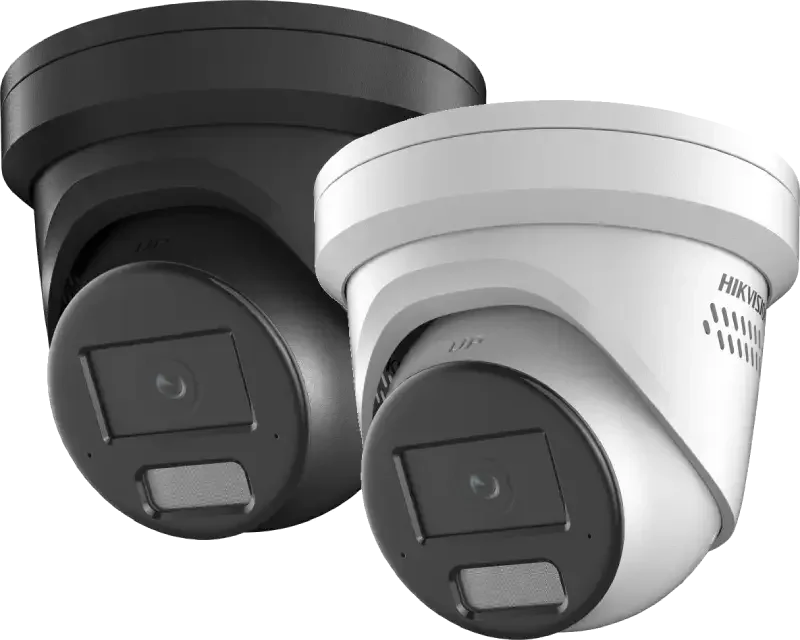

Hikvision DS-2CD2346G2H-IU 4MP AcuSense Turret with microphone

A super cool Turret camera from Hikvision

The surveillance camera is from Hikvision’s AcuSense family, which means it is especially well suited to sending notifications to your phone about people and vehicles.
It is ideal for both private homes and commercial properties

Watch the video showing how it works

As you can see in the video below, the camera’s specialty is distinguishing between people, vehicles, and uninteresting objects.

About the camera

The camera comes from Hikvision’s Turret series. These are cameras that are very robust and require very little maintenance. It is made of metal and is very tough, making it vandal-resistant. The camera is IP67 rated, which means it can withstand harsh weather and can be used both indoors and outdoors.
The camera is 3-axis and therefore very easy to install, as it can be mounted on vertical, horizontal, and sloped surfaces.

People and vehicle detection (AcuSense)

Although the camera is intelligent, it still needs some input from you. Once the camera is installed, you can choose between several types of "smart events", including "Intrusion detection", where a box is drawn in the image and when a target moves into the box and remains there longer than you have allowed (1-10 seconds), your "reaction" is triggered.
There is also line crossing, which detects whether a "target" moves across the line you have drawn. This can be both directions or only one direction. It can, for example, be used for one-way roads so that an alarm is triggered when driving in the wrong direction, or in a driveway so you only get notified when people arrive, but not when they leave.

What is a reaction? The event triggered when a rule is violated is called a "reaction". Depending on the model selected, you have different options.
Most commonly used "reactions":

• Push notification on mobile (have an image of the target that broke the rule sent directly to your phone, with a link to direct playback in the app)
• Send email (this function should be used with caution, as the email provider may close your account for suspected spamming if too many images are sent)
• Flash white light
• Warning sound (siren or voice warning - there is also the option to record your own messages)*
• Alarm output (open a garage door, turn on lights, send a signal to your alarm system, interaction with IHC, etc.)

To have all features, you must choose the models where the model number ends with IS2U/SL

Which AcuSense cameras can do what?

The model name tells you which features the camera has if it ends with:

• DS-2CDXXX6G2H-I = Standard with infrared night vision
• DS-2CDXXX6G2H-IU= With infrared night vision and one microphone
• DS-2CDXXX6G2H-ISU = With infrared night vision, one microphone, alarm input and output
• DS-2CDXXX6G2H-IS2U/SL = With infrared night vision, dual microphone, alarm input and output, as well as white strobe light and speaker

IP67 rated

The camera is IP67 classified. This means it can handle both wind and weather. The camera can be used both indoors and outdoors.

• Dust tight (6): Full protection against dust.
• Protected against immersion in water (7): Can withstand temporary immersion in water up to 1 meter deep for up to 30 minutes.

Supports micro-SD card

The camera can take a micro-SD card up to 512GB
(SD card (memory card not included, but can be purchased here).

About the lens

The camera is available with several lenses, and the lens affects the "FOV" (Field Of View) or in Danish: viewing angle.
A 2.8 mm lens gives a horizontal FOV of 100.2°, vertical FOV of 54.7° and diagonal FOV of 119.7°
A 4 mm lens gives a horizontal FOV of 81.1°, vertical FOV of 44.7° and diagonal FOV of 94.6°

Installation

The camera is very easy to install and can be mounted directly on the wall or in the ceiling/eaves. A back box/bracket may be necessary if the connection cannot be placed behind the wall, ceiling, or eaves.
Under accessories you can see which brackets fit

Technical key points

• Manufacturer: Hikvision
• Model: DS-2CD2346G2H-I
• Camera type: Fixed turret network camera
• Technology: AcuSense and Powered-by-DarkFighter
• Sensor: 1/3" Progressive Scan CMOS
• Resolution: 4 MP
• Max. resolution: 2688 × 1520 pixels
• Frame rate: Up to 25/30 fps at full resolution
• Lens: Fixed 2.8 mm or 4 mm
• Horizontal viewing angle 2.8 mm: 100.2°
• Horizontal viewing angle 4 mm: 81.1°
• Aperture: F1.0
• Light sensitivity: Down to 0.001 lux in color
• IR: 850 nm, up to 30 meters
• Person and vehicle classification: Yes
• Perimeter protection: Line crossing, intrusion, region entrance and region exiting
• Face Capture: Yes
• Built-in microphone: No
• WDR: 120 dB
• DORI 2.8 mm: 63 / 25 / 12 / 6 meters
• DORI 4 mm: 78 / 31 / 15 / 7 meters
• Video compression: H.265+, H.265, H.264+ and H.264
• Storage: SD card up to 512 GB and NAS
• Network: RJ45 10/100
• Power supply: 12 V DC or PoE 802.3af
• Max. power consumption: 7.2 W at 12 V DC / 9 W via PoE
• Material: Metal
• Protection: IP67
• Corrosion protection: No special protection
• Operating temperature: -30 °C to +60 °C
• Dimensions: Ø138.3 × 115.4 mm
• Weight: Approx. 550 g

Power over Ethernet

Do like the professionals. POE means that only one cable is needed for the camera. The camera gets power through the network cable, typically from a recorder with built-in PoE, or from a POE switch.

ANR

Avoid losing recordings with AutomaticNetwork R eplenishment.
If there are network problems, the camera stores the recordings on an SD- card - and then sends them to the recorder when the connection is stable again.
