AXIS F2135-RE Fisheye Sensor 2 MP with 185° Field of View
Compact 2 MP fisheye sensor with a 185° field of view, designed for discreet surveillance and demanding environments.
- 2 MP resolution in 1080p
- 185° horizontal field of view in 1080p
- Compact fisheye sensor for discreet mounting
- Good color image in low light
- Up to 30 meters between sensor and main unit
- Designed for areas with vibration and shock
- IP66, IP67 and IP6K9K
- NEMA 4X
- Operating temperature from -40 °C to 60 °C
- Compatible with AXIS F9114-R Mk II

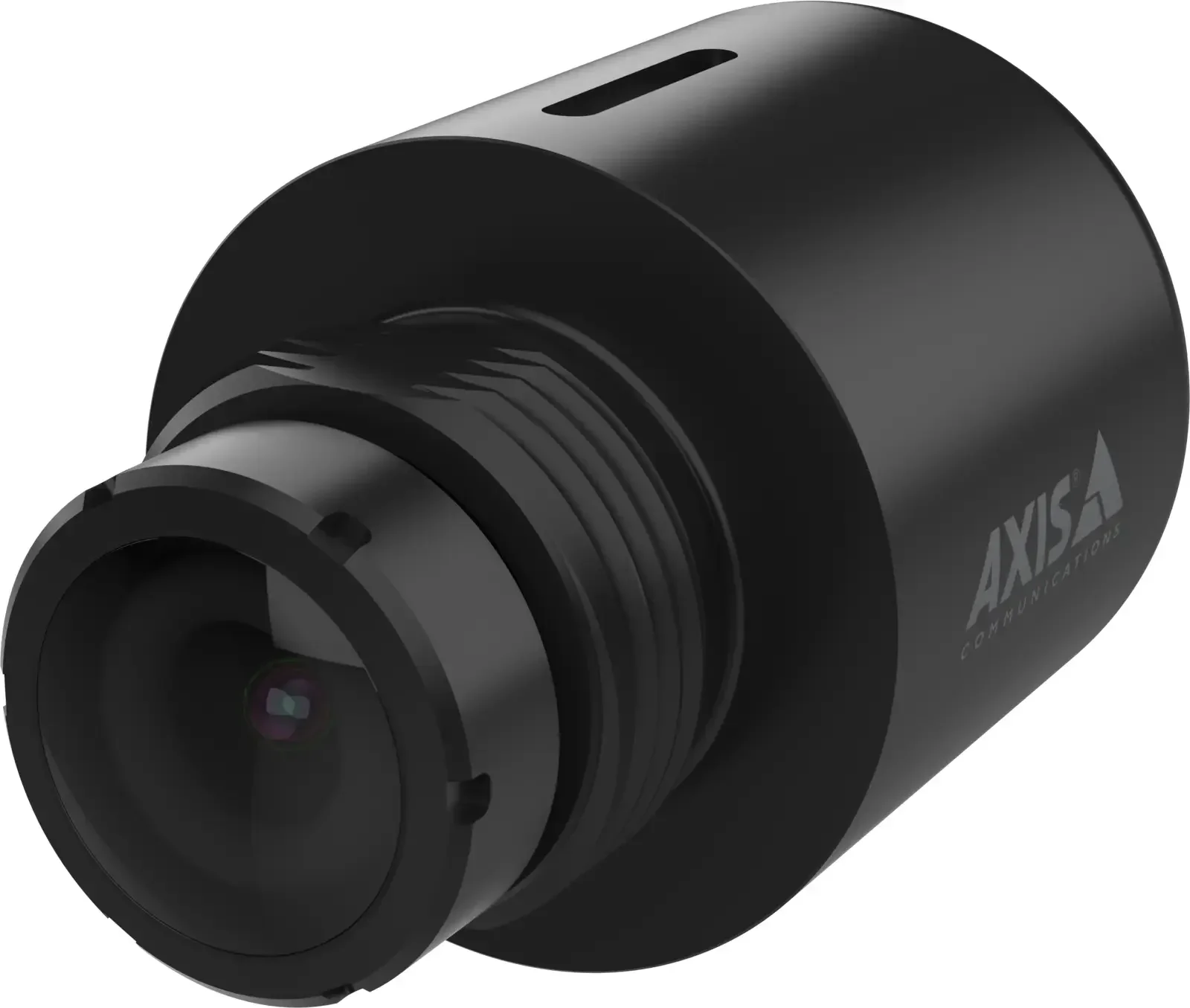

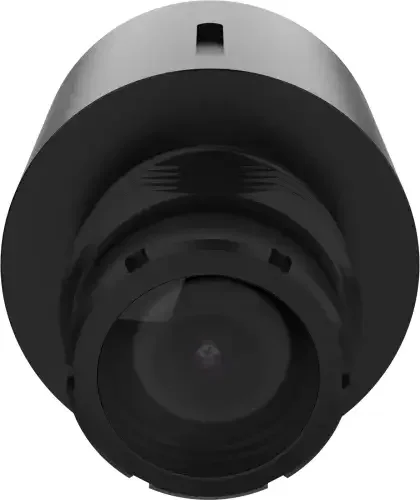

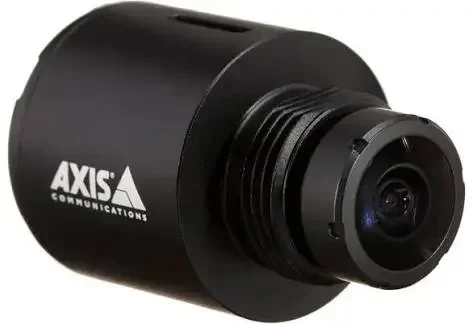

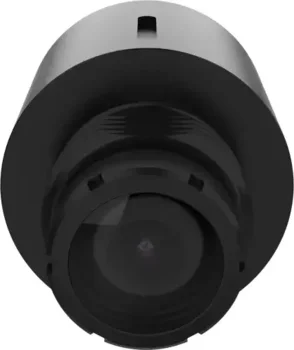

AXIS F2135-RE is a small fisheye sensor that provides a very wide overview from a single camera position. The sensor connects to a separate AXIS F91 main unit, so only the compact camera part needs to be visible.
| Technical specifications | |
| Model | AXIS F2135-RE Fisheye Sensor |
| Product type | Fisheye sensor |
| Image sensor | 1/2.8" progressive scan RGB CMOS |
| Minimum illumination | Color: 0.1 lux |
| Day and night | Fixed IR-cut filter |
| Frame rate | Up to 60/50 fps (60/50 Hz) in 1080p; up to 180/175 fps (60/50 Hz) in 720p |
| Lens | |
| Focal length | 1.98 mm |
| Aperture | F2.0 |
| Field of view – 1080p | Horizontal: 185°; vertical: 97° |
| Field of view – 720p | Horizontal: 120°; vertical: 62° |
| Lens mount | M12 |
| Iris | Fixed |
| Capture modes | |
| AXIS F9111 – 1080p without WDR | 1920 × 1080; 60/50 fps (60/50 Hz); shutter speed: 1/27000 to 1 s |
| AXIS F9111 – 1080p with WDR | 1920 × 1080; 30/25 fps (60/50 Hz); shutter speed: 1/20000 to 1.5 s |
| AXIS F9111 – 720p without WDR | 1280 × 720; 180/175 fps (60/50 Hz); shutter speed: 1/32500 to 1/2 s |
| AXIS F9111-R Mk II – 1080p without WDR | 1920 × 1080; 60/50 fps (60/50 Hz); shutter speed: 1/43500 to 1 s |
| AXIS F9111-R Mk II – 1080p with WDR | 1920 × 1080; 30/25 fps (60/50 Hz); shutter speed: 1/20000 to 1.5 s |
| AXIS F9111-R Mk II – 720p without WDR | 1280 × 720; 180/175 fps (60/50 Hz); shutter speed: 1/32500 to 1/2 s |
| AXIS F9114 / F9114-B / F9104-B / F9114-R Mk II / F9114-B Mk II / F9104-B Mk II – 1080p without WDR | 1920 × 1080; 30/25 fps (60/50 Hz); shutter speed: 1/20000 s to 1 s |
| AXIS F9114 / F9114-B / F9104-B / F9114-R Mk II / F9114-B Mk II / F9104-B Mk II – 1080p with WDR | 1920 × 1080; 30/25 fps (60/50 Hz); shutter speed: 1/20000 s to 1 s |
| AXIS F9114 / F9114-B / F9104-B / F9114-R Mk II / F9114-B Mk II / F9104-B Mk II – 720p without WDR | 1280 × 720; 60/50 fps (60/50 Hz); shutter speed: 1/32500 to 1/2 s |
| 720p WDR | No WDR support. To get WDR, use 1080p (1920 × 1080) and scale down. |
| Power and environment | |
| Power consumption | Typical 1 W; maximum 1.7 W |
| Operating temperature | -40 °C to +60 °C (-40 °F to 140 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7) | 74 °C (165 °F) |
| Start-up temperature | -40 °C (-40 °F) |
| Operating humidity | 10–100% RH, condensing |
| Storage temperature | -40 °C to +65 °C (-40 °F to 149 °F) |
| Storage humidity | 5–95% RH, non-condensing |
| Physical specifications | |
| Casing | IP66, IP67, IP6K9K, NEMA 4X-rated |
| Casing material | Aluminum |
| Color | Black, NCS S 9000-N |

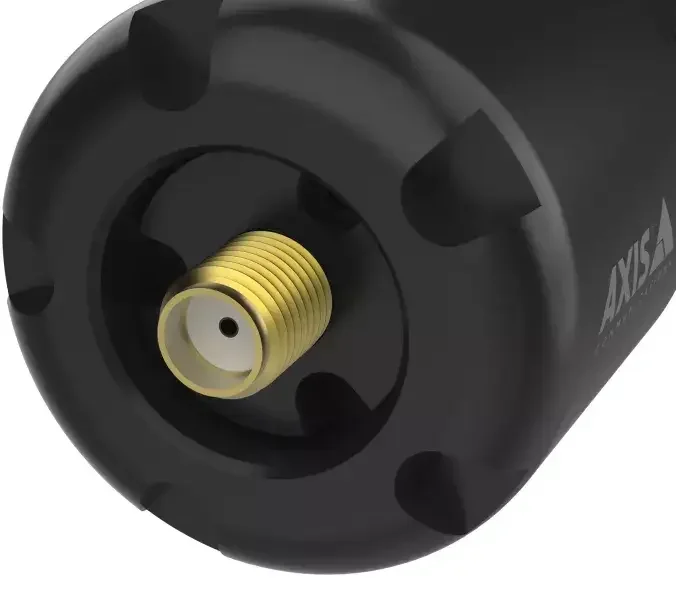

| Connector | SMA connector |
| Dimensions | 46 mm (1.8 in); Ø29.8 mm (1.2 in) |
| Weight | 50 g (0.1 lb) |
| Sustainability | PVC free |
| Required hardware | |
| Required hardware | AXIS TU6004-E Cable, AXIS TU6005 Plenum Cable, AXIS F91 Main Unit |
| Included accessories | |
| Included | Installation guide |
| Compliance | |
| EMC | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, EAC, ECE R10 rev.05 (E-mark) |
| Safety | IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, UN ECE R118 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC TR 60721-4-5 Class 5M3 (vibration, shock), IEC/EN 60529 IP66/IP67, IEC/EN 61373 Category 1 Class B, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), ISO 21207 (Method B), ISO 20653 IP6K9K |
| IP rating condition | In combination with a cable that has the same IP rating |
| Specifications are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
Wide overview from a compact sensor unit
AXIS F2135-RE is designed for modular AXIS camera systems, where the sensor and main unit are mounted separately. This makes it possible to place the small sensor where the image should be captured, while the main unit can be installed in a more protected location.
The sensor is also made for installations where vibration, shock, moisture, and large temperature changes may occur.
185° fisheye view
The fixed 1.98 mm fisheye lens provides a horizontal field of view of 185° at 1080p. This gives a very wide overview and makes the sensor well suited for places where you want to see as much of the area as possible from a single camera position.
At 1080p, the vertical field of view is 97°.
1080p with up to 30 frames per second
Together with AXIS F9114-R Mk II, the sensor delivers 1920 x 1080 at up to 30 frames per second. This provides smooth and detailed image quality for general video surveillance.
The sensor supports higher frame rates with AXIS F9111 models, but together with AXIS F9114-R Mk II the maximum is 30 fps at 1080p and 60 fps at 720p.
Good image in low light
The sensor is designed to deliver a usable color image even when there is very little light. The stated minimum illumination is 0.1 lux.
The sensor has a fixed IR-cut filter and is therefore not listed as a day/night camera with IR function.
WDR in challenging lighting conditions
Together with AXIS F9114-R Mk II, WDR can be used in 1080p. This helps preserve details in areas where there is both bright light and darker sections in the same image.
WDR is not supported in 720p with this combination.
Built for demanding environments
AXIS F2135-RE is developed for installations where the camera may be exposed to vibration and shock, for example in or around vehicles and machinery.
The sensor can operate at temperatures from -40 °C to 60 °C and is designed to perform under demanding conditions.
Protected against water and dust
The sensor is rated IP66, IP67 and IP6K9K as well as NEMA 4X. This makes it suitable for exposed installations where the sensor may be affected by dust, water, and weather.
The IP rating applies when used together with a cable that has the same IP rating.
Up to 30 meters from the main unit
The sensor is connected to the main unit with a compatible AXIS cable with SMA-FAKRA connection. Cables up to 30 meters can be used, so the main unit does not need to be mounted right next to the sensor.
Fits AXIS F9114-R Mk II
AXIS F2135-RE can be used together with the AXIS F9114-R Mk II Main Unit. With this combination, you get up to 30 frames per second at 1080p or up to 60 frames per second at 720p.
Since the F9114-R Mk II has four sensor channels, multiple compatible sensor units can be used with the same main unit.
Cable and main unit sold separately
AXIS F2135-RE is the sensor unit itself. To use it, you need a compatible AXIS F91 main unit as well as a compatible cable.
The datasheet lists AXIS TU6004-E Cable and AXIS TU6005 Plenum Cable as required cable hardware. An installation guide is included with the sensor.
Technical key points
- Model: AXIS F2135-RE Fisheye Sensor
- Product type: Modular fisheye sensor
- Image sensor: 1/2.8" progressive scan RGB CMOS
- Resolution: Up to 1920 x 1080
- Lens: 1.98 mm, F2.0
- Lens mount: M12
- Horizontal field of view at 1080p: 185°
- Vertical field of view at 1080p: 97°
- Horizontal field of view at 720p: 120°
- Vertical field of view at 720p: 62°
- Minimum illumination: 0.1 lux in color
- IR-cut filter: Fixed
- With AXIS F9114-R Mk II: Up to 30/25 fps at 1080p
- With AXIS F9114-R Mk II: Up to 60/50 fps at 720p
- Connection: SMA
- Max. cable length: Up to 30 meters
- Power consumption: Typically 1 W, max. 1.7 W
- Enclosure rating: IP66, IP67 and IP6K9K
- NEMA: NEMA 4X
- Operating temperature: -40 °C to 60 °C
- Dimensions: 46 mm x Ø29.8 mm
- Weight: 50 g
- Material: Aluminum
- Color: Black
