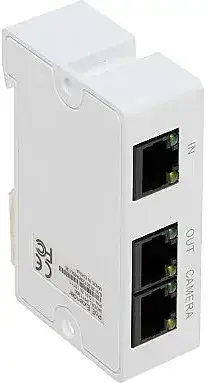

Dahua PFT1300 PoE extender - PoE up to 300 m
If you have 2-3 cameras — and only one cable, here's a solution
- Extends PoE and network over longer distances.
- Allows you to install cameras up to 300 meters from the switch or recorder.
- Can be daisy-chained with multiple PoE extenders.
- Power and data are sent through the same network cable.
- Can be mounted in a camera junction box or on a DIN rail
- Suitable for surveillance installations where distances are longer than usual.
A PoE extender is used in installations where the distance between camera and switch or recorder is longer than the normal 100 meters for network cables.
| Datasheet |
| PFT1300 | |
| Ethernet Port | 1*10/100 Base-T PoE power receiving port 1*10/100 Base-T PoE power supply port, supply power for the next extender 1*10/100 Base-T PoE power supply port, supply power for IPC |
| Transmission Distance | Cooperate with DH-PFT1200, able to cascade level two extender, connect to 3 IPC (level one extender connects to 1 IPC, the OUT port of level two extender and CAMERA port connect to 1 IPC respectively, total power consumption <=25W), transmission distance is 300m |
| Power Consumption | <=3W |
| Application Humidity | 10%~90% |
| Working Temperature | -30°C~65°C |
| Weight | 57g |
There is no reviews yet. Be the first to write us your opinion
PoE extender for longer cable distances
Dahua PFT1300 is a PoE extender used to extend the reach of network cables in surveillance installations. It receives power and network from a PoE switch or PoE injector and passes it on to the camera through a new cable.
This allows you to place cameras further away from networking equipment without having to install extra power supplies along the way.
Extends PoE connection
A PoE extender acts as an intermediary between the switch and the camera. It receives power and network over one cable and sends it on to the next device.
That means you can extend the installation without changing the rest of the network.
Option for multiple cameras on the same cable
The PFT1300 makes it possible to connect multiple cameras on the same cable run. The extender can forward power and network to both a camera and to a new extender.
That means you can place several cameras along the same cable — for example along a building, a fence, or a parking lot. It can reduce the need to run multiple cables back to the switch.
It makes the installation more flexible and can save both cabling and installation time in larger surveillance systems.
PoE up to 300 meters
When the extender is used together with compatible Dahua PoE devices, you can achieve a total cable distance of up to 300 meters.
This allows you to install cameras over larger areas, for example along buildings, parking lots or larger outdoor spaces.
Support for daisy-chaining
Multiple PoE extenders can be connected in series. This way the installation can be expanded if cameras are located far from the network equipment.
It gives you flexibility in installations where cabling can't always be kept within standard network distances.

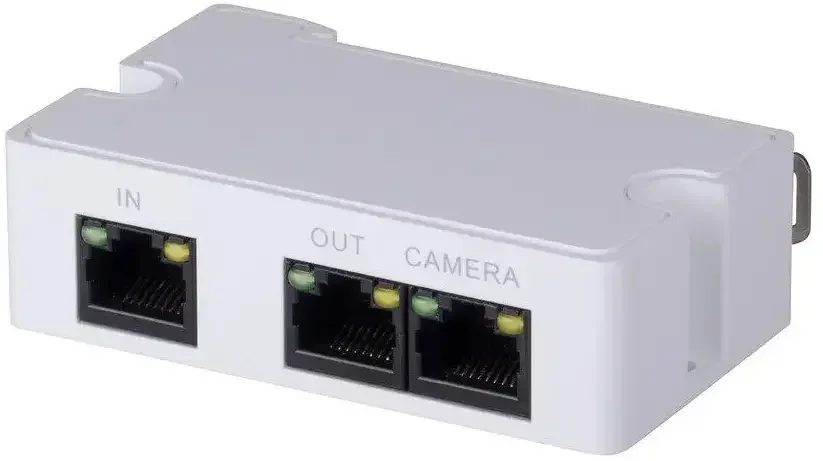

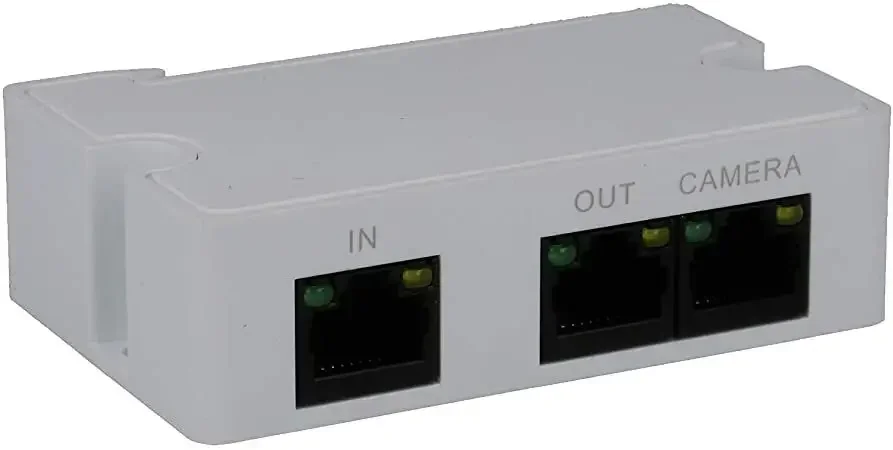

Three network ports
The unit has three network ports. One port receives PoE power and network, one port passes the connection on to a camera, and one port can forward power and data to a new extender.
That makes the installation flexible if multiple cameras need to be placed along the same cable run.
Compact installation
The PoE extender is compact and can be mounted in a junction box or on a DIN rail inside a cabinet.
This makes it easy to integrate into existing installations without taking up much space.
Technical key points
- Type: PoE extender
- Network ports: 3 × RJ45 10/100 Mbps
- PoE standard: IEEE802.3af / IEEE802.3at
- Max. total PoE load: 25 W
- Max. range: up to 300 m (when used with compatible Dahua devices)
- Power consumption: ≤ 3 W
- Operating temperature: −30 °C to +65 °C
- Humidity: 10–90 %
- Dimensions: 79 × 52 × 23 mm
- Weight: approx. 57 g
