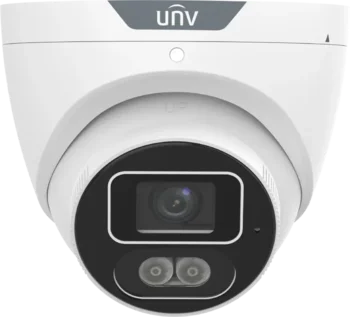

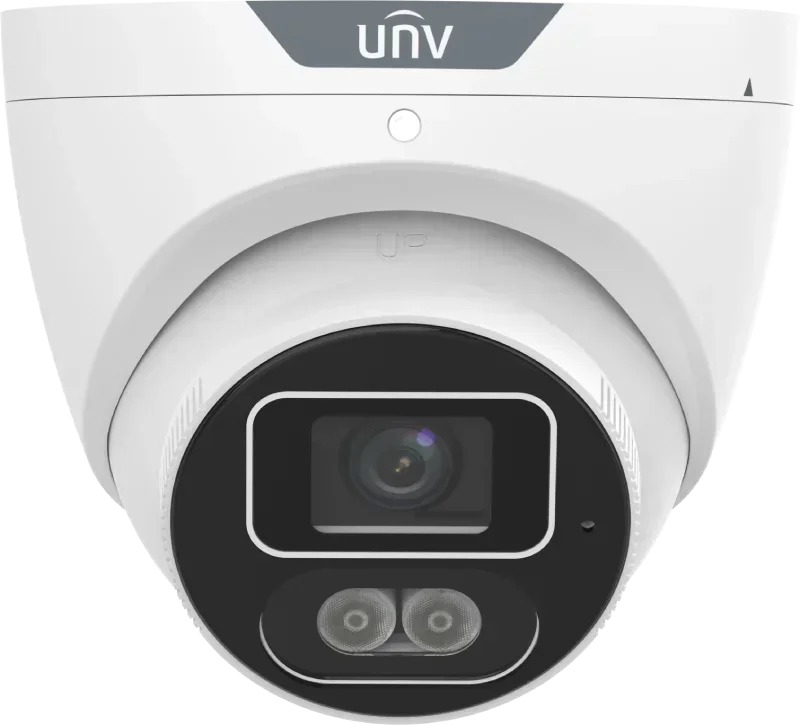

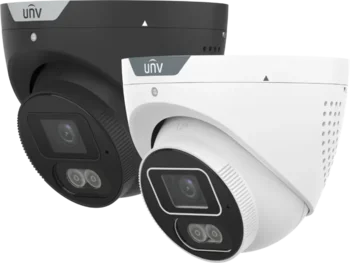

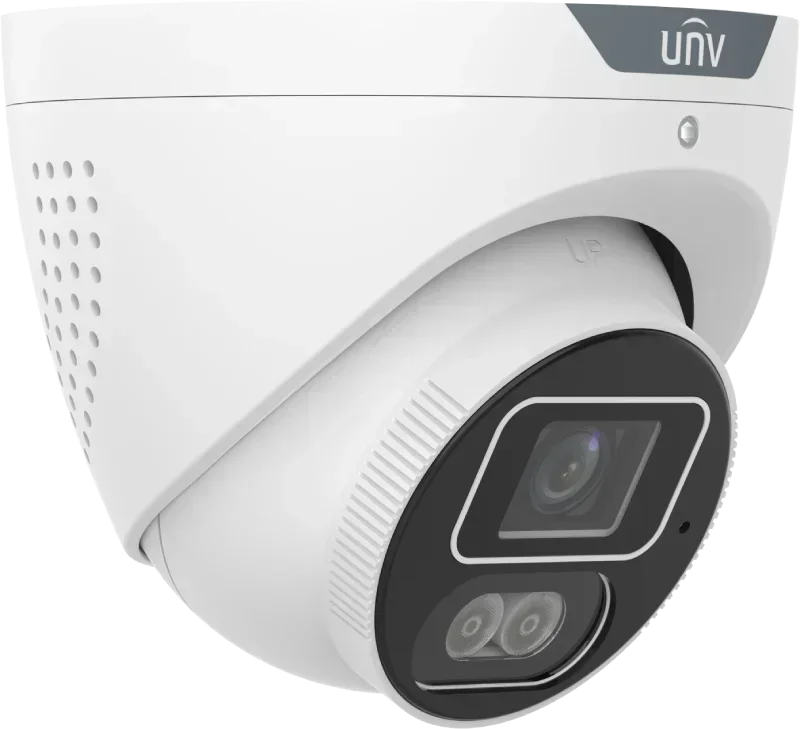

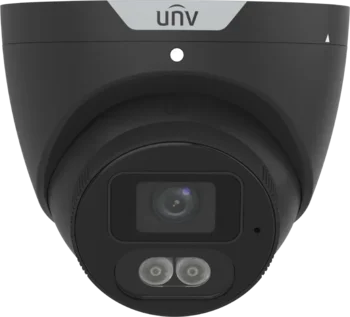

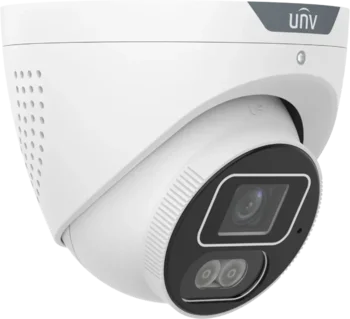

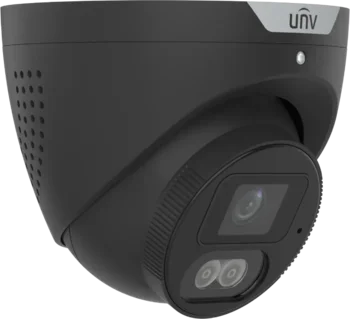

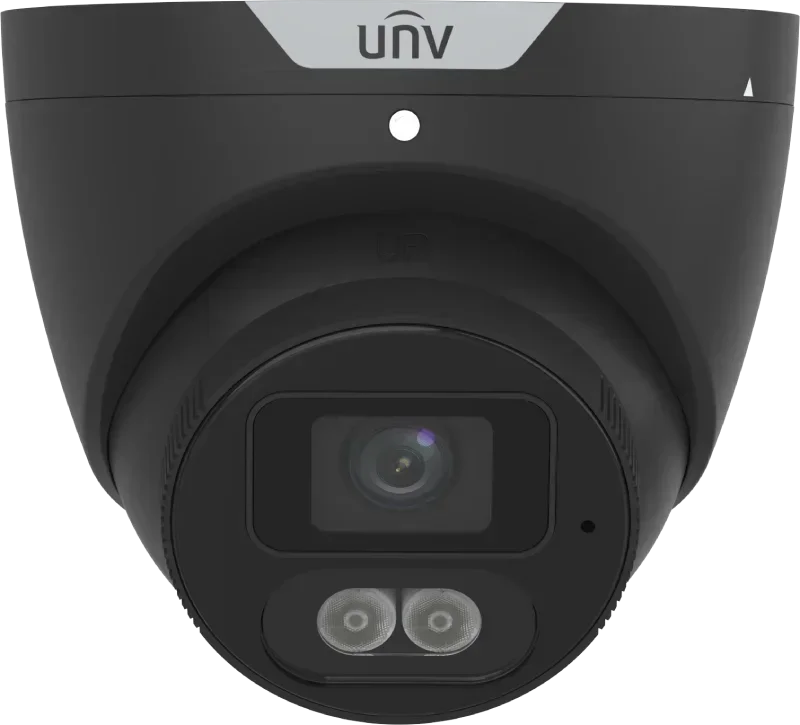

Uniview 8MP Hybrid smart-turret IR mic/spk/lys
Model:
IPC3618SB-ADF28KMC-I1(W)
2.595,00
Incl. VAT
(
2.076,00
Excl. VAT
)
Availability:
In stock
In stock
2.8mm
4mm

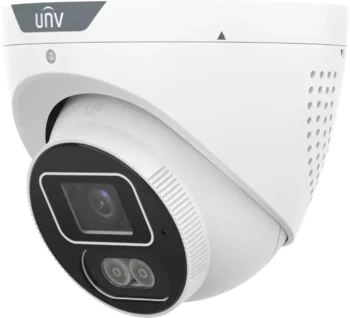

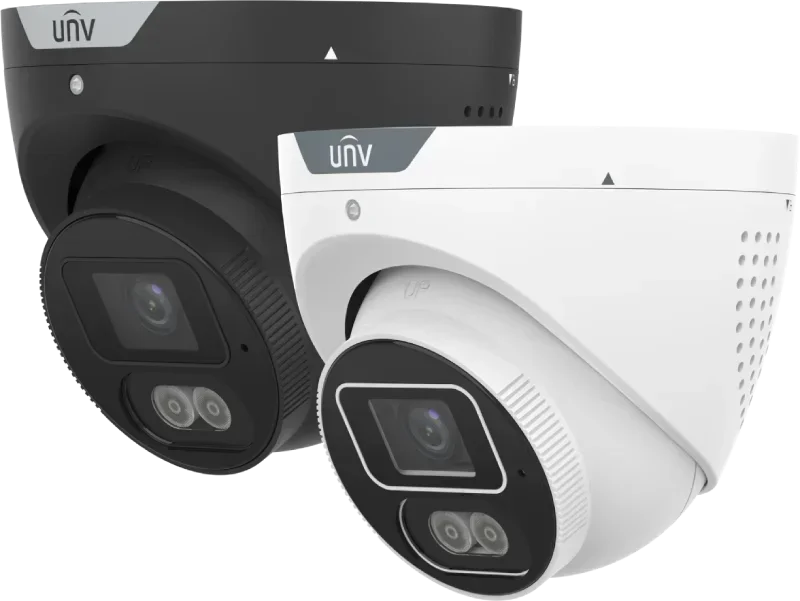

White

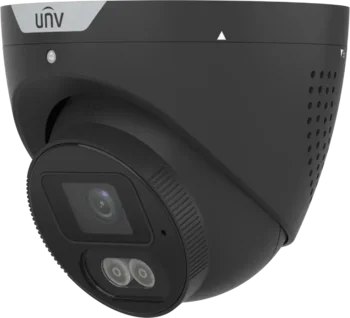

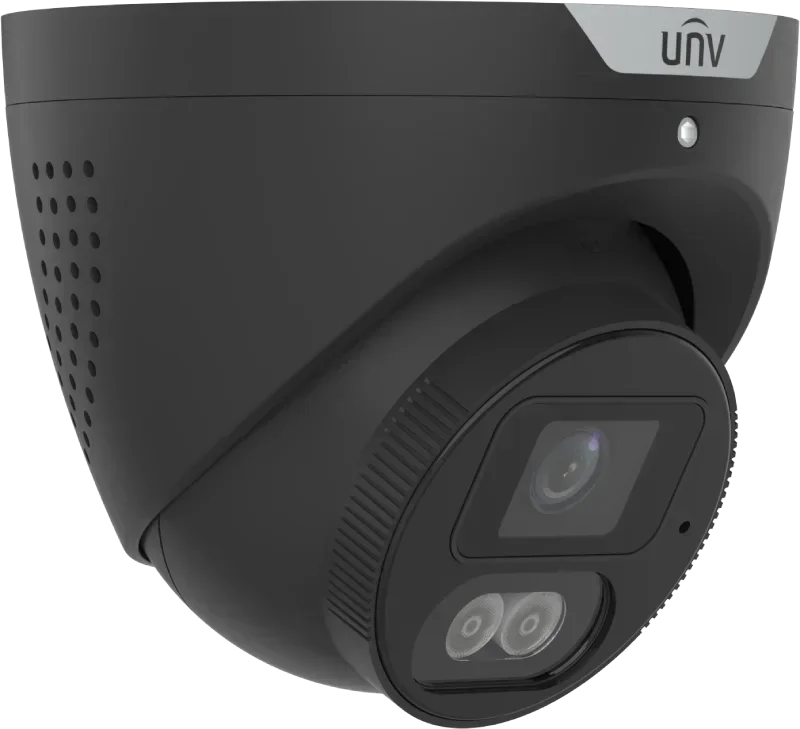

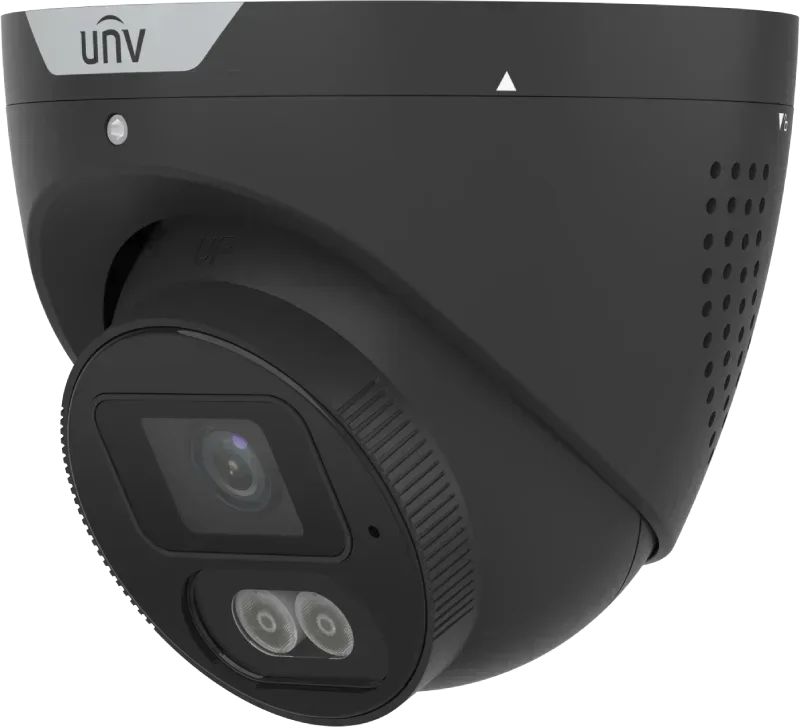

Black
Do you have questions about the product? +45 70701009
Flot farvebillede hele døgnet rundt + IR. Alt i et. Mange fede funktioner. - 8MP
- smart overvågning, med både IR og hvidt lys
- kan se i absolut mørke - og filme i farve, når det registrerer indtrængning. Også om natten.
- høj 8MP opløsning leverer flot billede døgnet rundt
- smart genkendelse af mennesker og biler reducerer falske alarmer fra dyr
- indtrængningsregistrering med persontælling
- strobe kan blinke som advarselsblink & højttaler kan afgive sirene-lyd eller tale-beskeder
- indbygget mikrofon giver mulighed for at optage lyd, og høre lyd på live visning
Få pushbeskeder på din mobil - og adgang til video direkte fra din smartphone eller fra PC/tablet.
| Technical specifications | |
| Model series | IPC3618SB-ADF28(40)KMC-I1 |
| Product type | 8 MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera |
| Camera design | Fixed eyeball / turret network camera |
| Maximum resolution | 8 MP (3840 × 2160) |
| Image technology | ColorHunter with Wise-ISP technology for 24-hour full-color imaging |
| Supplemental illumination | Dual light (infrared and warm light) |
| Intelligent functions | Smart Intrusion Prevention, Ultra Motion Detection, People Flow Counting, Crowd Density Detection |
| Built-in microphone | Yes |
| Built-in speaker | Yes |
| Two-way audio | Supported |
| Protection rating | IP67 |
| Camera | |
| Image sensor | 1/2.7" CMOS |
| Maximum image resolution | 3840 × 2160 (8 MP) |
| Minimum illumination | Color: 0.002 lux (F1.4, AGC ON); 0 lux with supplemental light |
| Day/night switching | IR-cut filter with automatic switching (ICR) |
| Shutter speed | Auto/Manual, 1 to 1/100,000 s |
| Pan adjustment | 0° to 360° |
| Tilt adjustment | 0° to 80° |
| Rotation adjustment | 0° to 360° |
| Signal-to-noise ratio | > 56 dB |
| Wide Dynamic Range (WDR) | 130 dB true WDR |
| Lens | |
| Lens type | Fixed focal length |
| Available lens variants | 2.8 mm (IPC3618SB-ADF28KMC-I1) / 4.0 mm (IPC3618SB-ADF40KMC-I1) |
| Iris type | Fixed |
| Aperture | F1.4 |
| Horizontal field of view – 2.8 mm | 98.7° |
| Vertical field of view – 2.8 mm | 53.6° |
| Diagonal field of view – 2.8 mm | 113.4° |
| Horizontal field of view – 4.0 mm | 87.1° |
| Vertical field of view – 4.0 mm | 50.1° |
| Diagonal field of view – 4.0 mm | 100.2° |
| DORI distances – 2.8 mm lens | |
| Detection | 84.0 m (275.6 ft) |
| Observation | 33.6 m (110.2 ft) |
| Recognition | 16.8 m (55.1 ft) |
| Identification | 8.4 m (27.6 ft) |
| DORI distances – 4.0 mm lens | |
| Detection | 120.0 m (393.7 ft) |
| Observation | 48.0 m (157.5 ft) |
| Recognition | 24.0 m (78.7 ft) |
| Identification | 12.0 m (39.4 ft) |
| Illumination | |
| Supplemental light type | Dual light (IR and warm light) |
| Infrared illumination distance | Up to 30 m (98.4 ft) |
| Warm light illumination distance | Up to 30 m (98.4 ft) |
| Infrared wavelength | 850 nm |
| IR on/off control | Auto/Manual |
| Warm light on/off control | Auto/Manual |
| Smart IR | Supported |
| Video | |
| Video compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 profiles | Baseline, Main, High |
| Main stream | 8 MP (3840 × 2160) @ max. 30 fps; 5 MP (3072 × 1728) @ max. 30 fps; 4 MP (2560 × 1440) @ max. 30 fps; 1080P (1920 × 1080) @ max. 30 fps; 720P (1280 × 720) @ max. 30 fps |
| Sub stream | 1080P (1920 × 1080) @ max. 30 fps; 720P (1280 × 720) @ max. 30 fps; D1 (720 × 576) @ max. 30 fps; 640 × 360 @ max. 30 fps; 2CIF (704 × 288) @ max. 30 fps; CIF (352 × 288) @ max. 30 fps |
| Third stream | D1 (720 × 576) @ max. 30 fps; 640 × 360 @ max. 30 fps; 2CIF (704 × 288) @ max. 30 fps; CIF (352 × 288) @ max. 30 fps |
| Video streams | Triple streams |
| Video bit rate | 128 Kbps to 16 Mbps |
| U-code | Supported |
| On-screen display (OSD) | Up to 8 OSDs |
| Privacy masking | Up to 4 areas |
| Region of Interest (ROI) | Supported |
| Corridor mode | 9:16 supported |
| Image enhancement | |
| White balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Image rotation and flip | Normal, Vertical Flip, Horizontal Flip, 180°, 90° Clockwise, 90° Anti-clockwise |
| Highlight Compensation (HLC) | Supported |
| Backlight Compensation (BLC) | Supported |
| Defog | Digital defog |
| Dewarping | Not available |
| Intelligent video analytics | |
| Smart Intrusion Prevention (SIP) | Supported |
| Cross line detection | Supported |
| Intrusion detection | Supported |
| Enter area detection | Supported |
| Leave area detection | Supported |
| Target classification | Human, non-motor vehicle and vehicle |
| False alarm filtering | Supported; reduces false alarms caused by leaves, birds, lights and other irrelevant movement |
| People flow counting | Supported |
| Crowd density detection | Supported |
| Statistical analysis | Not available (listed separately from people counting in the datasheet) |
| Events and security functions | |
| Motion detection | Supported |
| Ultra Motion Detection (UMD) | Supported |
| Tampering alarm | Supported |
| Audio detection | Supported |
| General functions | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication |
| Audio | |
| Built-in microphone | Supported |
| Built-in speaker | Supported |
| Two-way audio | Supported |
| Audio compression | G.711U, G.711A, AAC-LC |
| Audio bit rate – G.711U/G.711A | 64 Kbps |
| Audio bit rate – AAC-LC | 128 Kbps |
| Audio sampling rate – G.711U/G.711A | 8 kHz |
| Audio sampling rate – AAC-LC | 8 kHz, 16 kHz, 48 kHz |
| Audio suppression | Supported |
| External audio input/output | Not available |
| Storage | |
| Edge storage | MicroSD card |
| Maximum MicroSD capacity | 512 GB |
| Network storage | NAS (NFS) |
| Automatic Network Replenishment (ANR) | Supported |
| Network and integration | |
| Ethernet interface | 1 × RJ45 10/100 Mbps Base-TX Ethernet |
| Network protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, 802.1X, SNMP, QoS, SSL/TLS, SSH, HTTPS, SMTP |
| ONVIF compatibility | Profile S, Profile G, Profile T, Profile M |
| Integration interfaces | API, SDK |
| Maximum users | 32 |
| User levels | Administrator, Common User, Operator |
| Client software | EZStation, APP |
| Browser live view with plug-in | Internet Explorer 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Plug-in-free browser live view | Chrome 57+, Firefox 58+, Edge 16+ |
| Interfaces | |
| Network | 1 × RJ45 10/100 Mbps Base-TX Ethernet |
| Built-in microphone | Yes |
| Built-in speaker | Yes |
| Audio I/O | Not available |
| Alarm I/O | Not available |
| Serial port | Not available |
| Wi-Fi | Not available |
| Video output | Not available |
| Reset button | Not available |
| Power | |
| Power supply | 12 V DC ±25%, PoE (IEEE 802.3af) |
| Maximum power consumption | 11.5 W |
| Power connector | Ø 5.5 mm coaxial power plug |
| Environmental specifications | |
| Operating temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Operating humidity | ≤ 95% RH (non-condensing) |
| Storage temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Storage humidity | ≤ 95% RH (non-condensing) |
| Ingress protection | IP67 (IEC 60529) |
| Surge protection | 4 kV |
| Physical specifications | |
| Dimensions (Ø × H) | Ø 111 × 98 mm (Ø 4.4 × 3.8 in.) |
| Weight | 0.47 kg (1.04 lb) |
| Housing material | Metal |
| Certifications and compliance | |
| EMC – CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4 |
| EMC – FCC | FCC 47 CFR Part 15 B |
| Safety – CE-LVD | EN 62368-1 |
| Safety – UL/CUL | UL 62368-1, CAN/CSA C22.2 No. 62368-1 |
| RoHS | 2011/65/EU, (EU) 2015/863 |
| WEEE | 2012/19/EU |
| Protection | IP67 (IEC 60529) |
| Web client languages | |
| Number of languages | 20 |
| Supported languages | Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
| Compatible accessories | |
| TR-JB03-G-IN | Junction box for mini fixed dome camera; supports wiring from behind |
| TR-A01-IN | NPT 3/4" waterproof cable gland |
| TR-SE24-IN | Dome pendant mounting pole, 200 mm |
| TR-SE24-A-IN | Dome pendant mounting pole, 500 mm |
| TR-CM24-IN | Indoor dome pendant mounting bracket |
| TR-JB07/WM03-G-IN-V2 | Wall mounting assembling bracket for 32 fixed dome, mini fixed dome and plastic turret cameras |
| TR-WM03-D-IN-V2 | Wall mounting bracket for 32 fixed dome, mini fixed dome and plastic turret cameras |
| TR-UC08-C-V2 | Bullet and dome corner mounting bracket |
| TR-UP06-C-IN-V2 | Pole mounting bracket for bullet junction box only |
| Lens specifications and DORI distances vary by model variant. Specifications and availability are subject to change without notice. Errors and omissions excepted. | |
There is no reviews yet. Be the first to write us your opinion
Den professionelle måde at levere strøm, til et PoE-kamera, er gennem netværkskablet.
På den måde behøver man kun at trække et enkelt kabel til hvert kamera - og skal ikke døje med 230V og små strømforsyninger.
Strømmen til kameraet leveres gennem netværkskablet fra enten...
- en optager med indbygget PoE, også kaldet NVR. Et typisk valg for installationer op til og med 8 kameraer.
- en PoE-switch. Populært fortalt en fordelerdåse til netværkskabler. Det typiske valg på store installationer eller hvis man ønsker fleksibel kabelføring.
- en PoE-injector. Kan kun levere strøm til et kamera.
Af samme grund følger der ikke strømforsyning med PoE-kameraer. Du kan bestille en klassisk strømforsyning her, hvis du ikke ønsker at benytte PoE.
Colorhunter
Colorhunter is Uniview's term for cameras with extreme light sensitivity (from 0.0005 lux)
This means with clear moonlight, the light from a street lamp - or the camera's built-in lamp, a colorhunter can film in color 24/7
This means with clear moonlight, the light from a street lamp - or the camera's built-in lamp, a colorhunter can film in color 24/7
Tri-guard
When you combine Smart Intrusion Prevention (SIP), Colorhunter and Active Deterrence you get Tri-Guard.
Tri-Guard is designed to prevent crimes at night - but in addition to warning when things happen, the camera also gives you color footage in low light.
Tri-Guard is designed to prevent crimes at night - but in addition to warning when things happen, the camera also gives you color footage in low light.
Power over Ethernet
Do like the professionals. POE means that only one cable is needed for the camera. The camera gets power through the network cable, typically from a recorder with built-in PoE, or from a POE switch.
ONVIF full member
Univiews cameras and recorders support the ONVIF protocol. This means that they can be mixed with equipment from other brands as long as they also support ONVIF.
Push Notification
Get messages on your mobile when things happen.
When you press the message, you can immediately see live video - and a recording of what has triggered the message.
When you press the message, you can immediately see live video - and a recording of what has triggered the message.
Face Capture
Can register and save faces for later review and search, so you can get all the faces that have been registered over a selected period shown as a kind of crime album.
